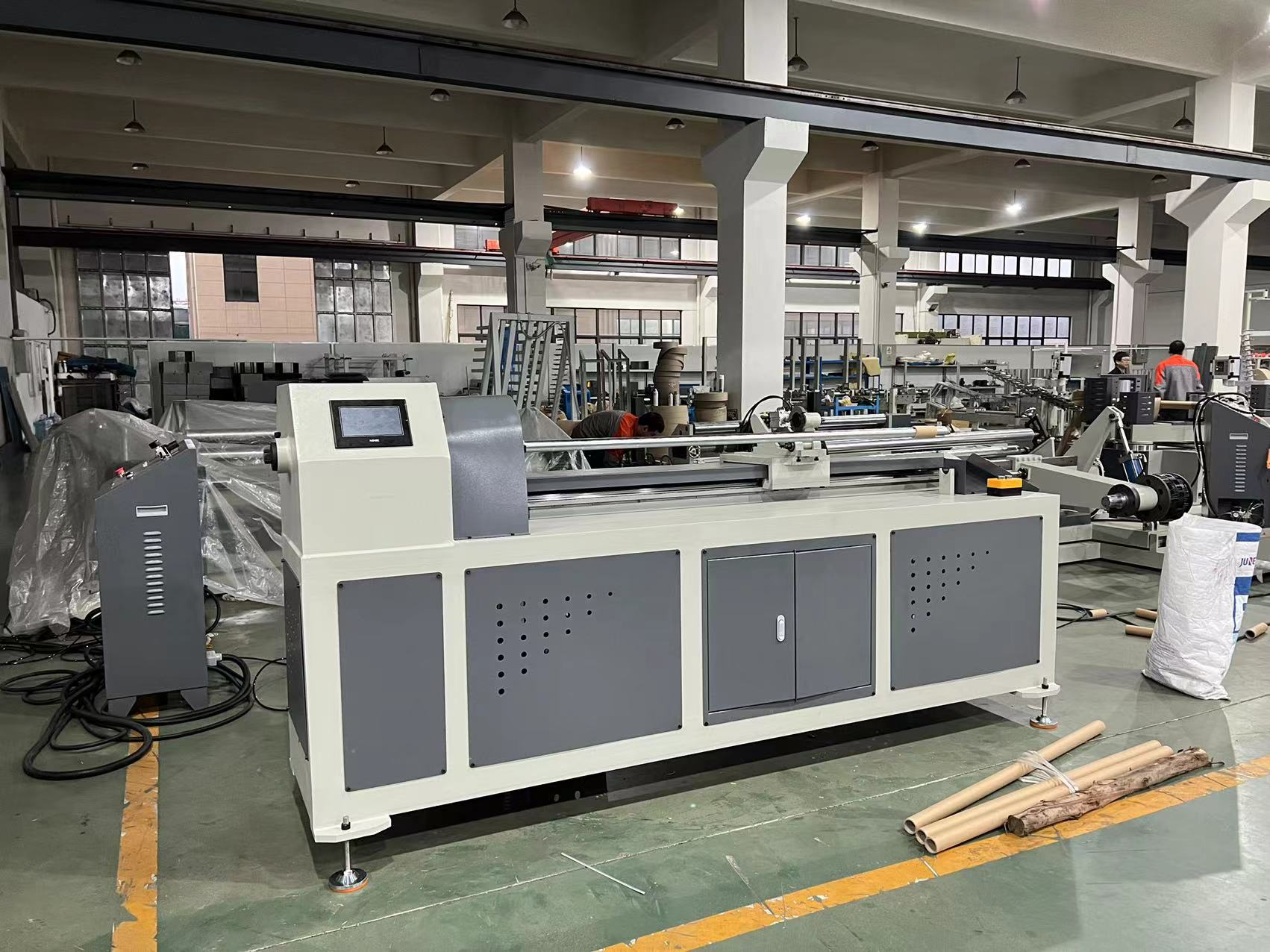

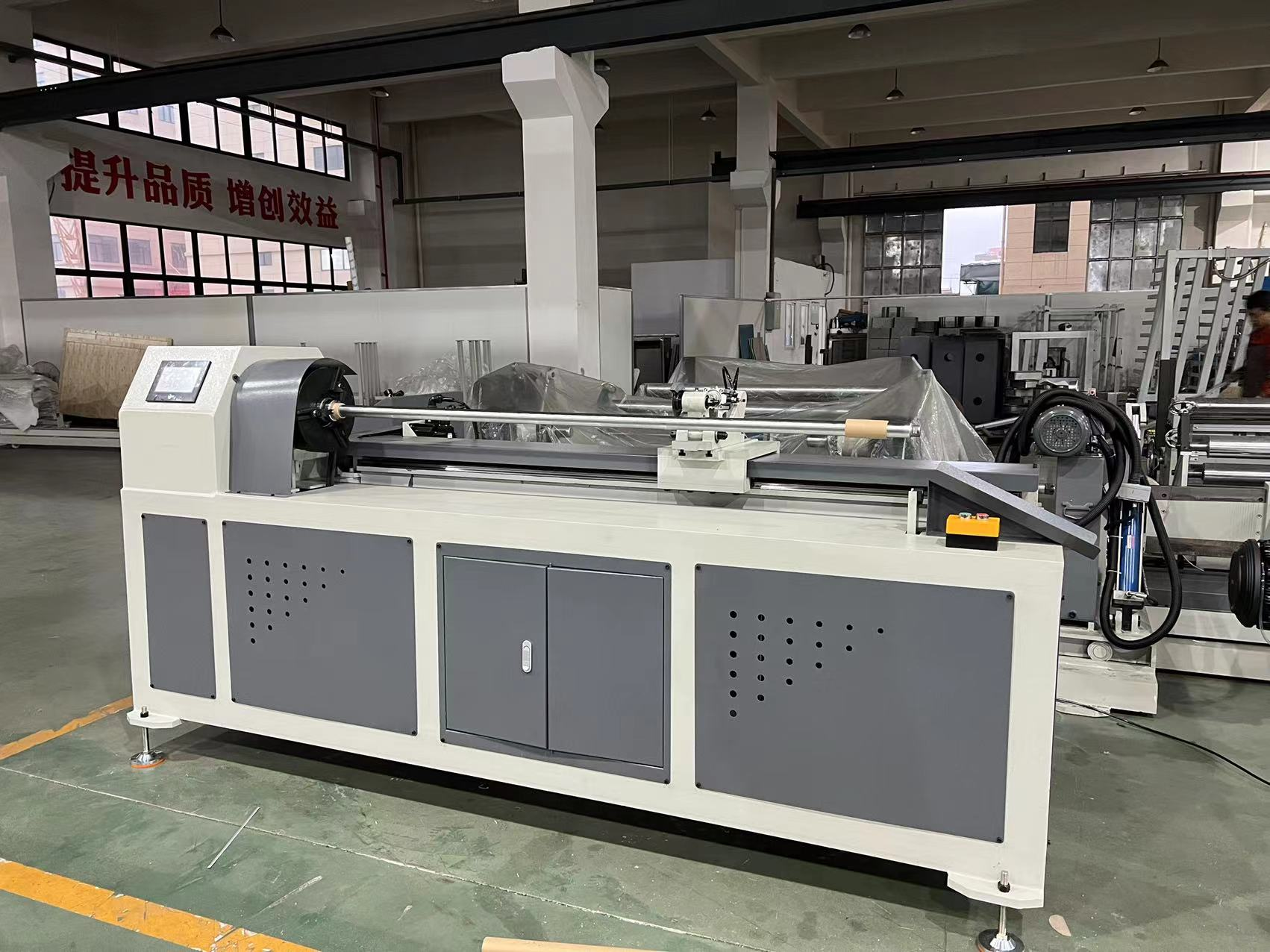

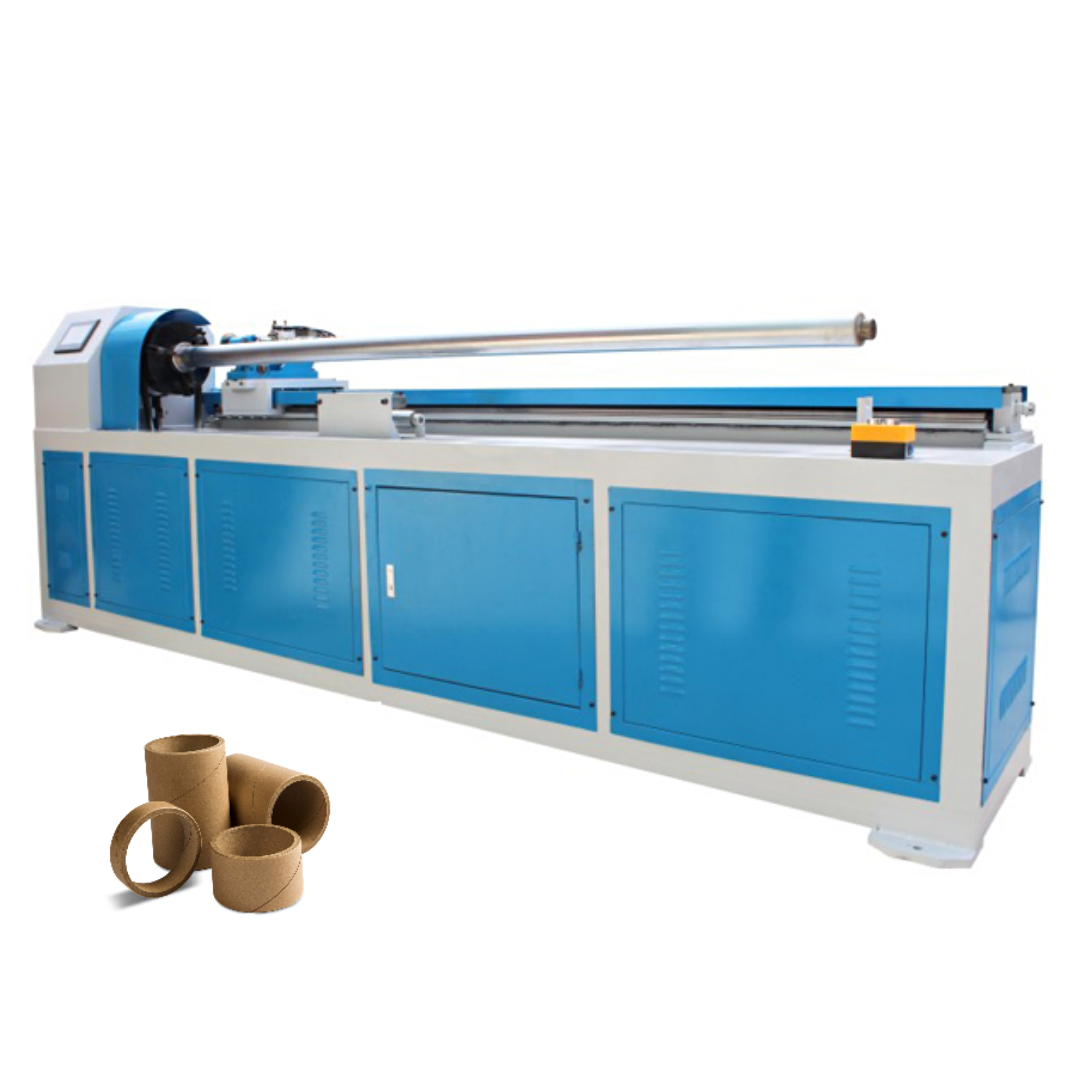

The CFQG-SK-150 Manual Single Blade Paper Tube Cutting Machine transforms raw paper cores into flawlessly finished components tailored for premium packaging solutions. When standing next to this heavy-duty equipment, operators immediately notice the quiet, vibration-free hum of its servo motor-driven system, a true testament to its superior structural integrity and meticulous craftsmanship. The tactile response of the industrial PLC touch screen allows for effortless programming, eliminating the tedious manual adjustments that typically cause production bottlenecks. As the single circular blade engages, it slices through dense paperboard with a satisfying, clean shear, leaving behind perfectly smooth, burr-free edges that elevate the perceived value of your final products. By keeping the blade and shaft stationary while only the paper rotates, the machine dramatically reduces mechanical wear, ensuring a consistent, high-quality output that meets the rigorous demands of global manufacturing applications. This machine is not merely a cutting tool; it is a strategic asset designed to optimize your workflow, minimize material waste, and enhance the overall efficiency of your production floor.
Parameter | Details |
|---|---|
Model | CFQG-SK-150 |
Tube Inner Diameter | 50 - 152mm |
Cutting Tube Length | 5 - 1700mm |
Tube Wall Thickness | 1 - 15mm |
Minimum Cutting Length | 5mm |
Cutting Tolerance | ± 0.15mm |

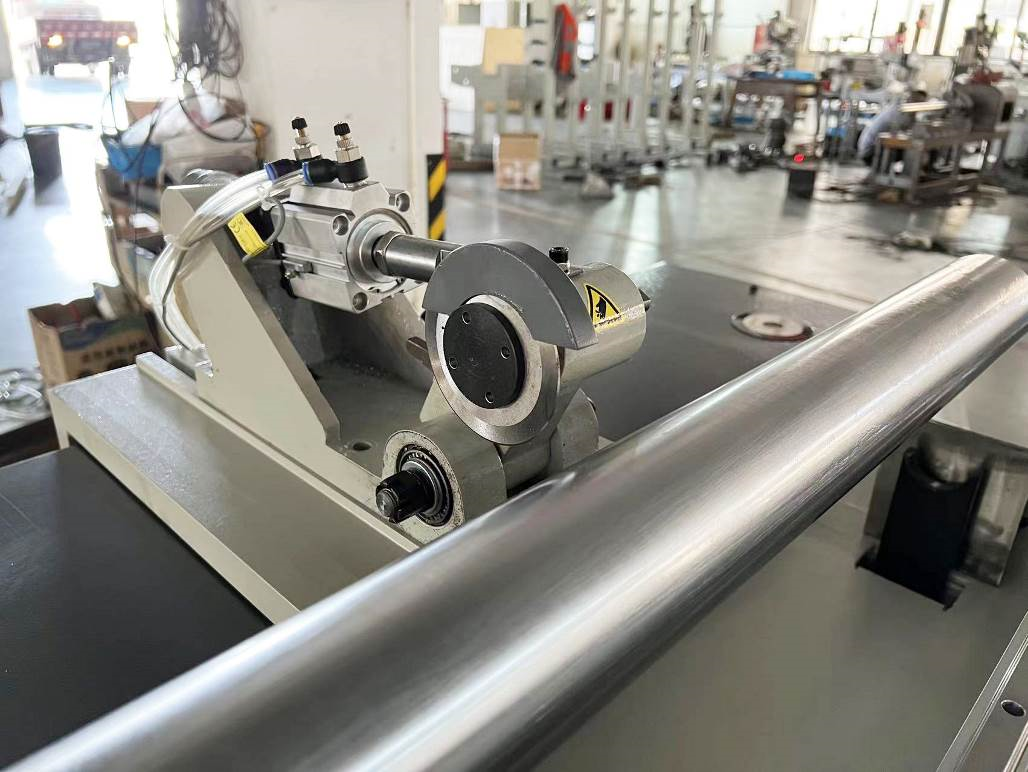

Cutting Blade | Single Circular Blade |
Tube Loading and Unloading | Manual |
Power Supply | 380V/50Hz (Customizable according to regional standards) |
Control System | PLC with Touch Screen |
Drive System | Servo Motor Controlled High Precision System |

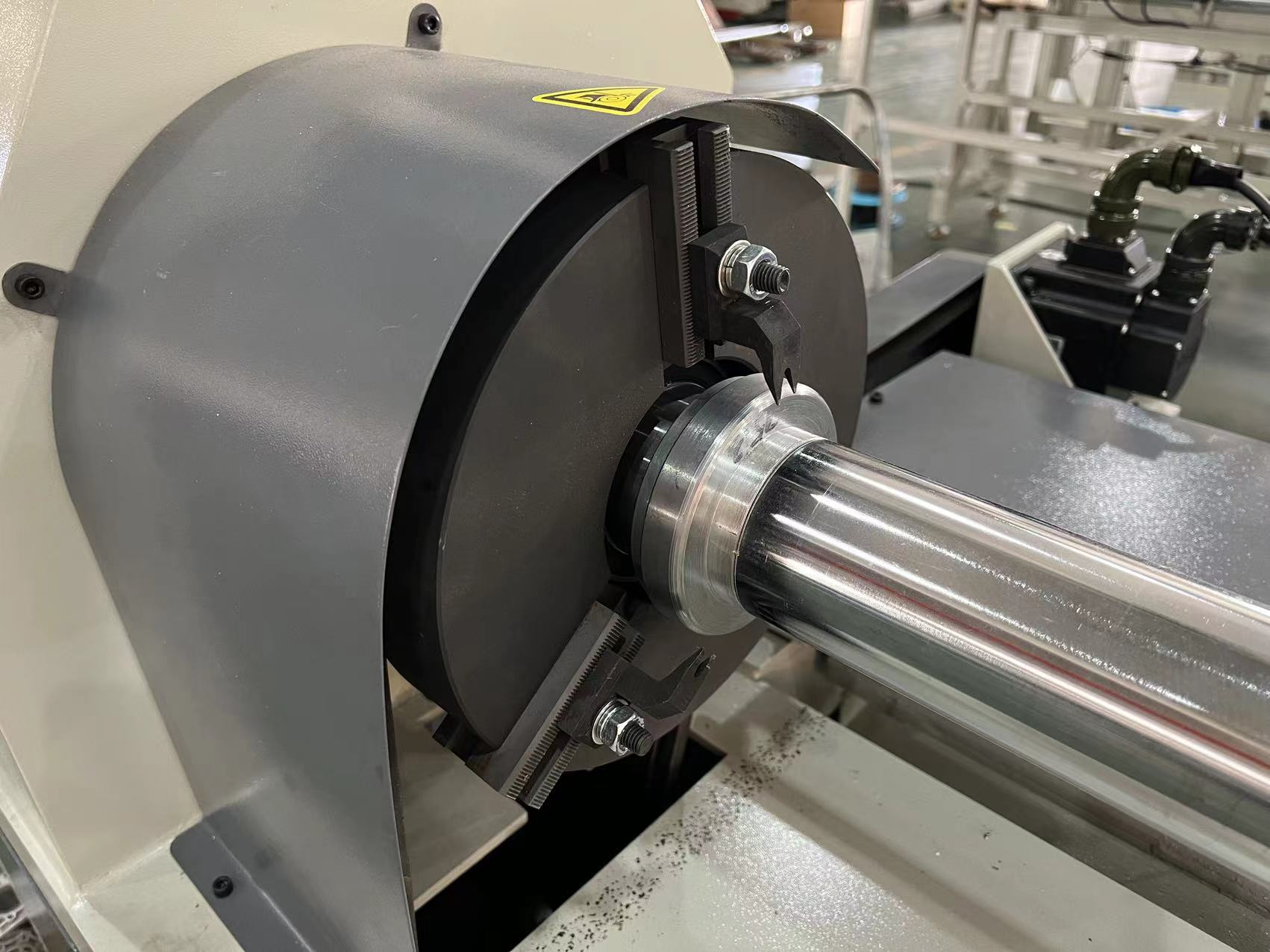

Core Fixing Method | Clamping Nail |
Cutting Mechanism | Paper rotates during cutting; blade and shaft are fixed |
Mold Change | Only requires changing the mandrel shaft (mold) for different core diameters |
Length Adjustment | Set via touch screen; no manual knife adjustment required |
Engineered for maximum efficiency and reliability, the CFQG-SK-150 integrates advanced automation with a robust mechanical framework to solve common production challenges. The architecture of this equipment focuses on reducing downtime while maximizing output quality, giving your facility a distinct competitive edge.
Stationary Blade Architecture: Only the paper core rotates during the cutting cycle, significantly extending the lifespan of the single circular blade and reducing maintenance frequency.
Rapid Changeover System: Transitioning between different core diameters is remarkably swift, requiring only a simple swap of the mandrel shaft without complex recalibrations.
Digital Length Configuration: Operators can input the desired cutting length directly into the intuitive touch screen, bypassing the need for hazardous and time-consuming manual knife adjustments.
Secure Core Clamping: Utilizing a specialized clamping nail mechanism, the machine firmly secures the paper tube, preventing slippage and ensuring dimensional consistency across large batches.
Customizable Power Integration: Designed for global deployment, the standard 380V/50Hz power supply can be tailored to meet specific regional electrical standards, ensuring seamless integration into your existing infrastructure.
Understanding the critical requirements of large-scale manufacturing, this machine is developed to address every facet of production, from precision finishing to long-term cost management. Below are the core dimensions that make this equipment an indispensable asset.

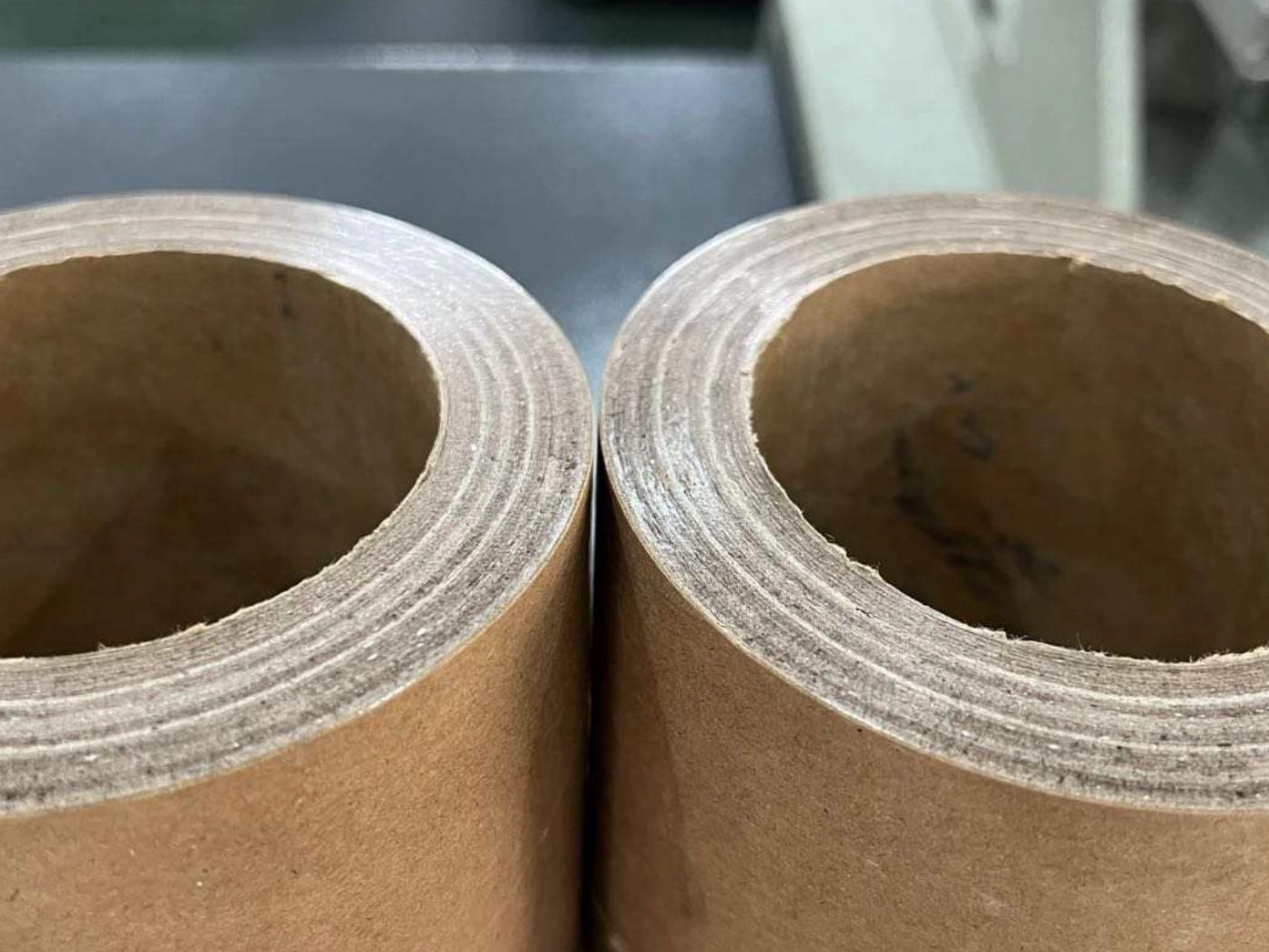

Procurement managers highly prioritize the smoothness and dimensional accuracy of paper tube incisions. Driven by a state-of-the-art servo motor system, this machine restricts cutting tolerances to an incredibly low ±0.15mm. It achieves a minimum cutting length of just 5mm, guaranteeing burr-free edges and zero-error dimensions that perfectly satisfy the stringent requirements of high-end packaging materials.
This equipment is designed to drastically reduce labor training costs through intuitive operation. Equipped with a sophisticated PLC touch screen control system, modifying cutting lengths requires only a few taps on the screen, completely eliminating manual blade adjustments. Furthermore, changing tube diameters is streamlined by simply swapping the main spindle (mold), drastically cutting down line-change downtime.
Engineered for extensive applicability across diverse manufacturing scenarios, this machine supports a wide inner diameter range of 50-152mm and robust wall thicknesses from 1-15mm. It easily accommodates cutting lengths from 5mm up to 1700mm, making it compatible with the vast majority of standard and non-standard paper tubes on the market. The power supply is also fully customizable to comply with the electrical standards of international buyers.
Industrial buyers heavily weigh the durability and running smoothness of their capital equipment. This model incorporates an innovative "clamping nail" technology to secure the paper core firmly in place. During operation, only the paper tube rotates while the blade and shaft remain fixed. This unique mechanical design minimizes machine vibration and significantly reduces blade wear, thereby extending the service life of both the equipment and its tooling.
Tailored for small to medium production lines or specialized processing demands, the manual loading and unloading combined with the single circular blade design lowers initial acquisition costs. It maintains high-precision output while significantly reducing long-term maintenance expenses, delivering a highly cost-effective paper tube cutting solution that accelerates your return on investment.
We understand that continuous operation is vital for your facility's profitability. As your dedicated supplier, we ensure the rapid global supply of consumable parts, including single circular blades and custom spindle molds. We also provide remote technical support for the PLC system and comprehensive whole-machine warranty services, completely eliminating procurement concerns for overseas buyers.
Partnering with a reliable manufacturer means more than just acquiring machinery; it means securing a resilient supply chain advantage. We are dedicated to empowering your production capabilities through relentless innovation and unwavering support.
Factory-Direct Expertise: As an established industrial provider, we oversee every step of the manufacturing process, ensuring rigorous quality control and direct accountability.
Customized Engineering: We recognize that no two production lines are identical. Our engineering team modifies power supplies, molds, and software configurations to match your exact specifications.
Global Compliance: Our machinery is built to meet and exceed international safety and operational standards, facilitating smooth integration into facilities worldwide.
Dedicated Technical Support: From initial installation guidance to lifetime troubleshooting, our expert technicians are available to ensure your equipment operates at peak performance.
To assist your procurement team in making an informed decision, we have compiled answers to the most common technical inquiries regarding the CFQG-SK-150 cutting machine.
Q1: How does the stationary blade design improve the overall cutting process?
By keeping the blade and shaft fixed while the paper core rotates, the machine eliminates the dynamic vibrations associated with moving cutting heads. This results in a cleaner, burr-free cut and significantly extends the sharpness and lifespan of the circular blade.
Q2: What is the exact procedure for changing the setup for a different paper tube inner diameter?
The changeover process is highly efficient and tool-minimal. The operator simply removes the current mandrel shaft (mold) and replaces it with one matching the new inner diameter. There is no need to manually recalibrate the blade position, as the PLC system automatically handles length adjustments.
Q3: Can the PLC control system maintain precision over long continuous production runs?
Yes, the intuitive touch screen interface is paired with a high-precision servo motor drive system. This digital control ensures that whether you are cutting your first tube or your thousandth, the ± 0.15mm tolerance remains absolute, providing repeatable accuracy without manual measuring.
Q4: What routine maintenance is required for the servo motor-driven system and blade mechanism?
The system is designed for low maintenance and high reliability. Routine care primarily involves keeping the touch screen clean, ensuring the clamping nails are free of heavy paper dust buildup, and periodically lubricating the main bearings and shaft as detailed in the comprehensive user manual.
Q5: Is it possible to adapt the machine for facilities with non-standard power requirements?
Absolutely. While the standard configuration is 380V/50Hz, as a direct manufacturer, we have the capability to customize the power supply components to align perfectly with your specific regional electrical grid standards prior to shipping, ensuring plug-and-play readiness upon arrival.
