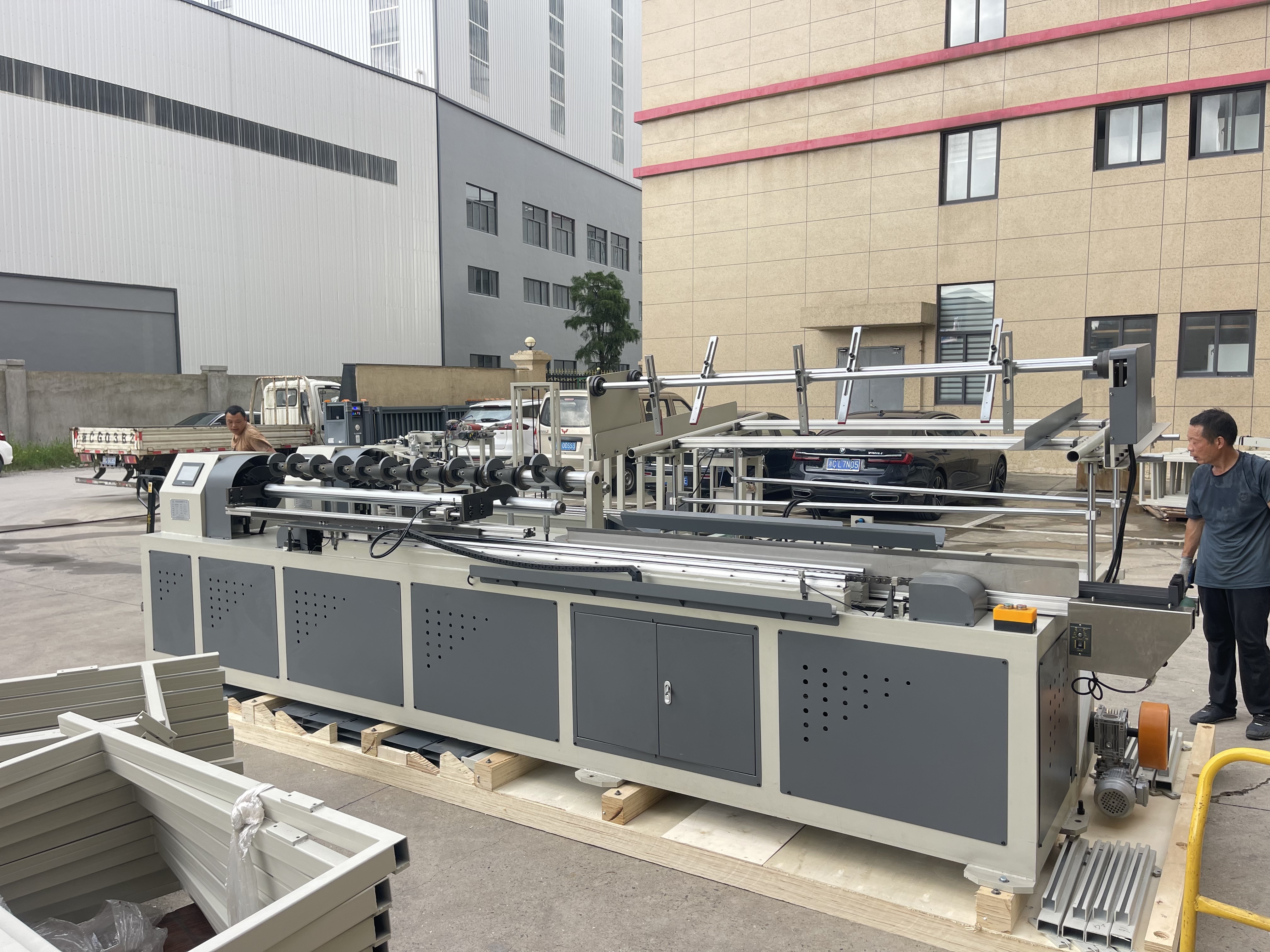

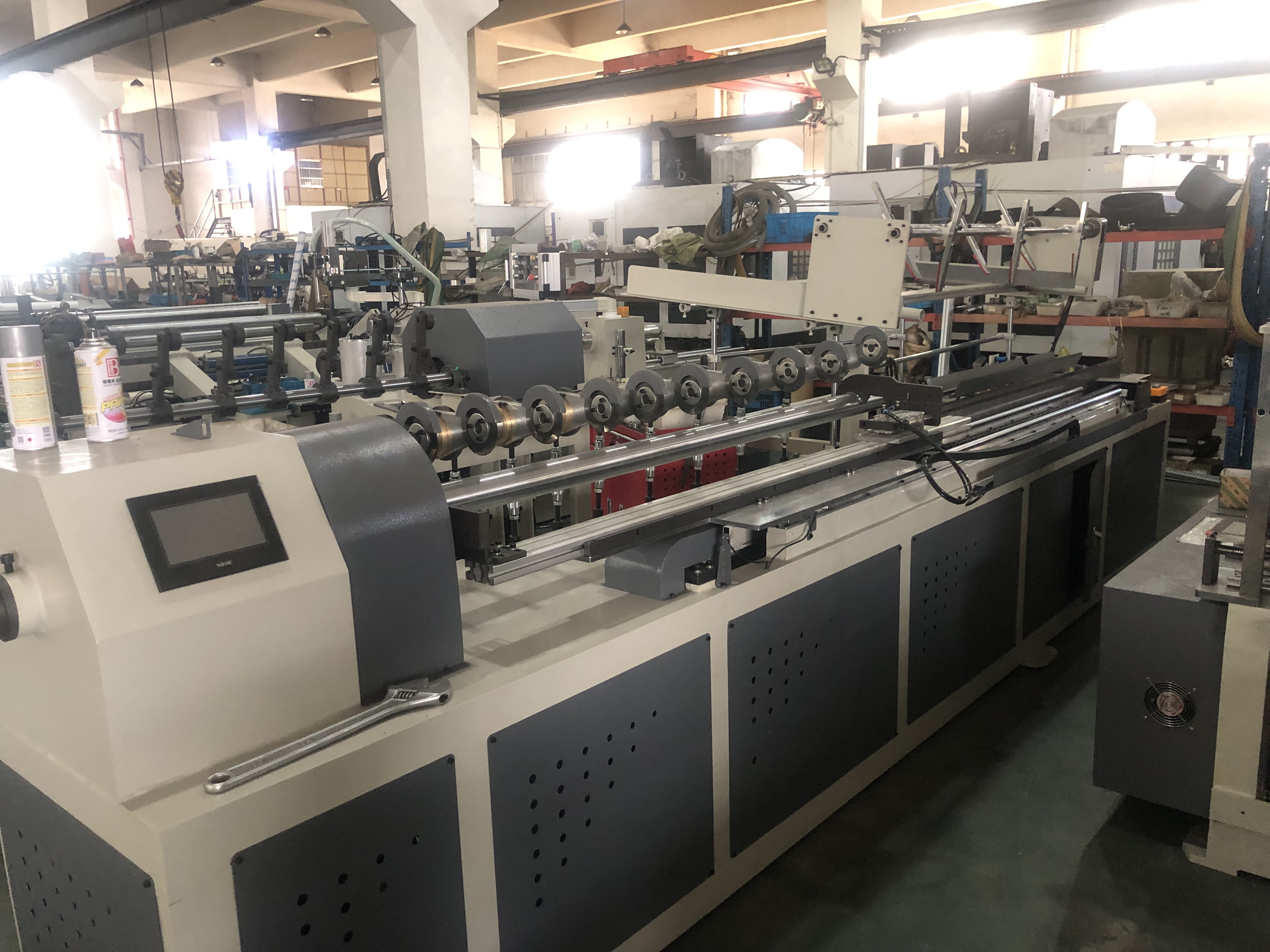

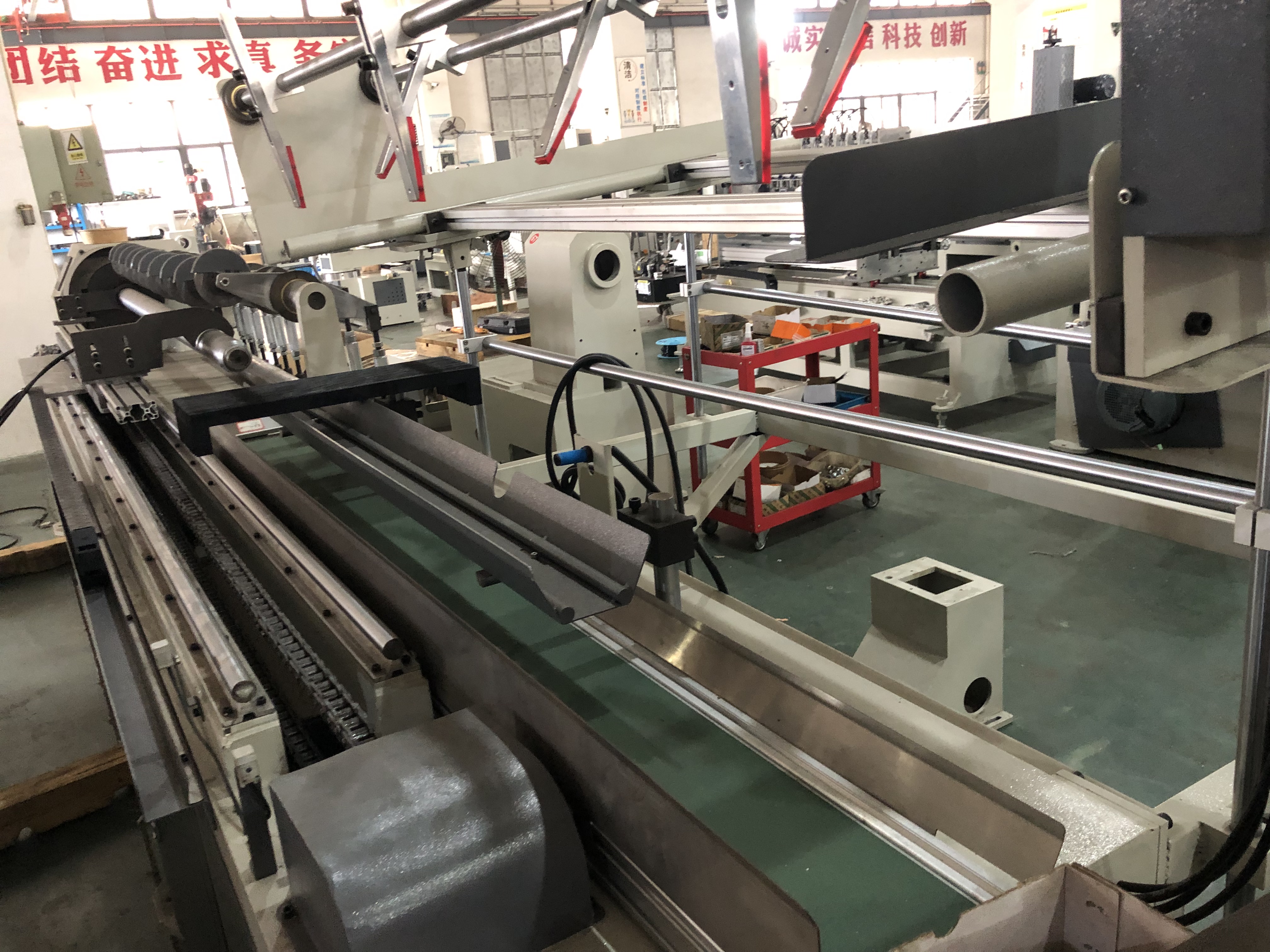

CFQG AutomaticMulti Blades Paper Tube Cutting Machine

Product Overview

CFQG Automatic Multi  blades  Paper Tube Cutter

This  paper tube cutting machine suitable for cutting all kinds of high grade paper tubes, such as Fiber paper tube ,OPP film paper tube ,Tape paper tube etc.with a finished tube with soomth edge  .

 1.Cutting length from 90mm to 1600mm or 2000mm and core thickness from 1mm to 15mm(customized )

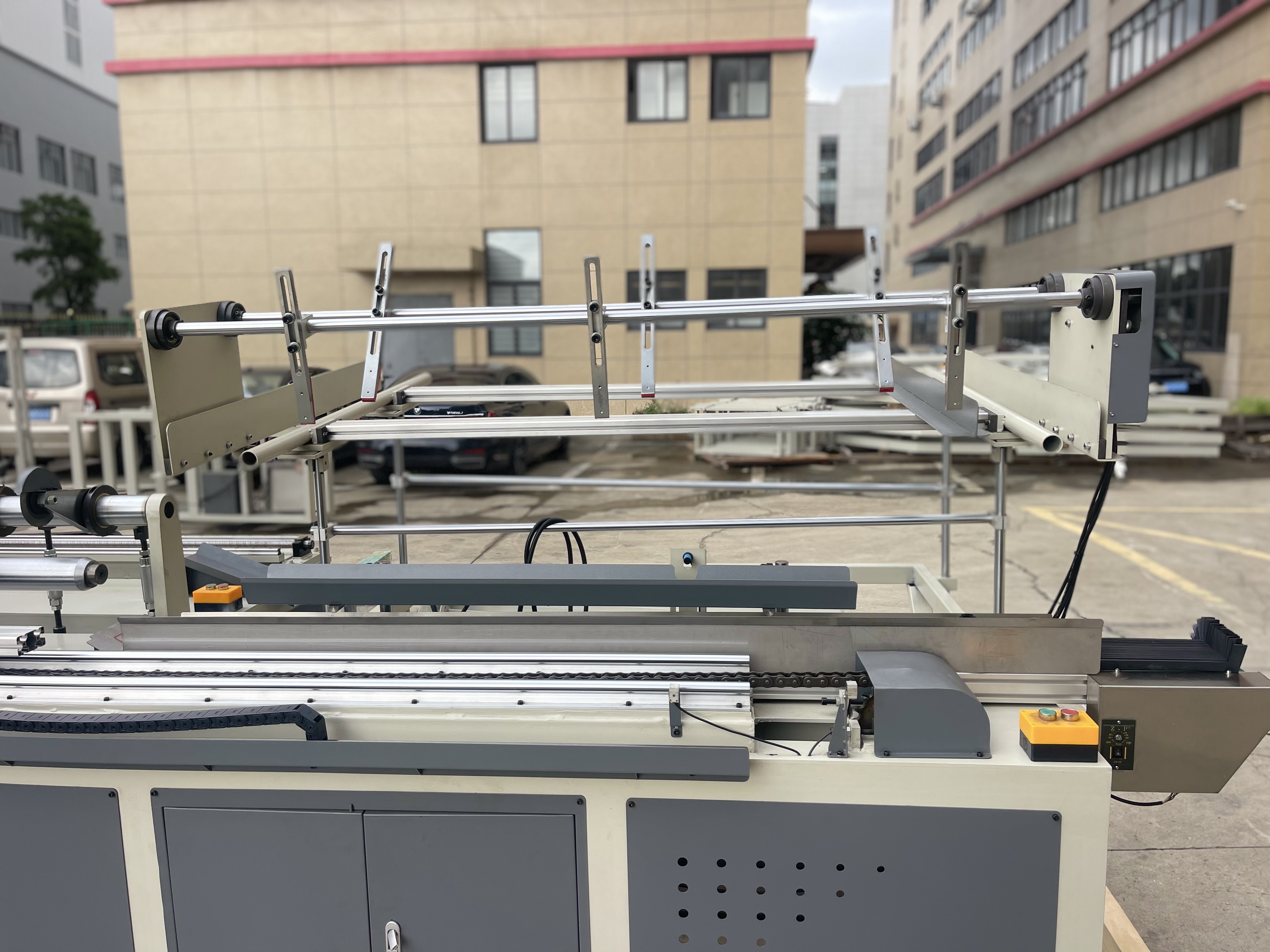

 2.automatically tube feeding & removing

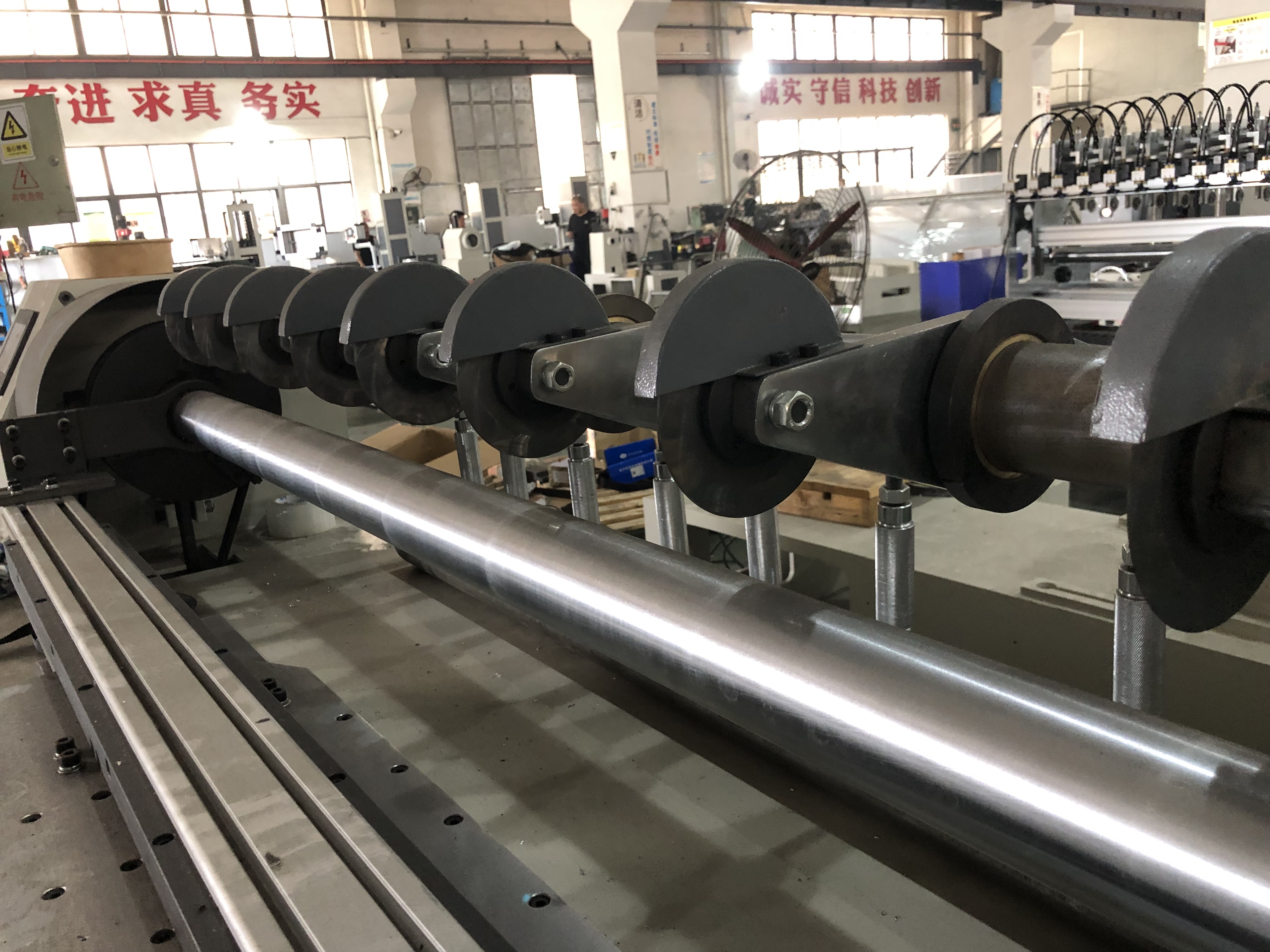

 3.Multi blades on the machine (10pcs)

Product Specifications

cutting system

1.Min paper tube cutting length 90mm

2.change core diameter: only need to change mandrel shaft (mold)

3. change cutting length: manual adjust the blades distance

4. Only paper rotates during cutting; blade and shaft are fixed

5. Use Single Tungsten steel blade

Optional :

1.Automatic  shaftless paper core cutting machine can be Semi-auto type.

2.Cutting length could be customized 1600mm,2000mm etc.

3.Power supply is 380V or with a transformer to customer requested .

4.Carboard tube thickness also can be thick such as 15mm and 18mm.

We can customized machines according customer request .
