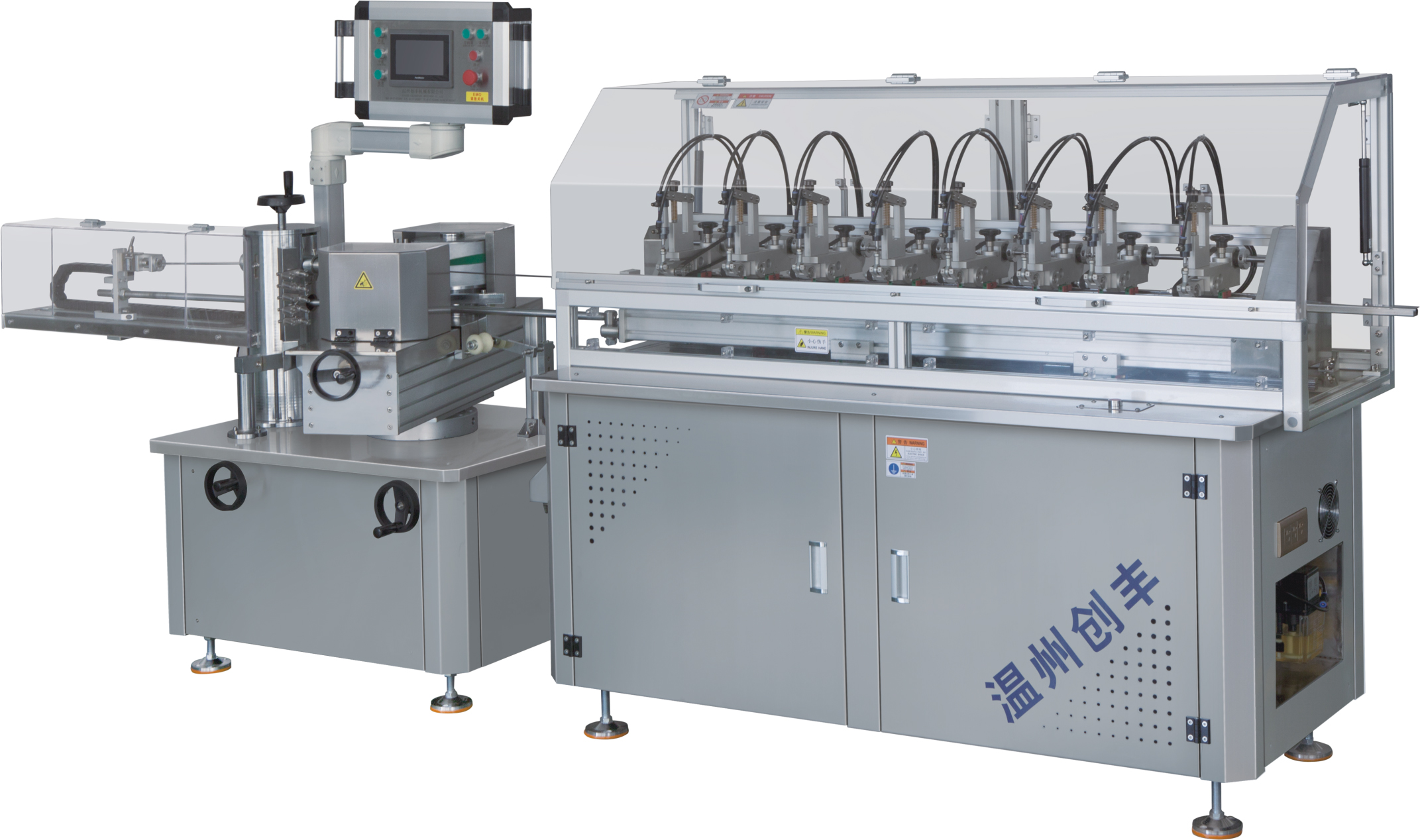

The 100m Per Minute Paper Straw Making Machine is a high-performance piece of equipment designed and manufactured by Wenzhou Chuangfeng Machinery Co., Ltd., a leading machinery producer with 15+ years of expertise in paper tube & core machine manufacturing and 7+ years of specialized experience in paper straw machine production. This machine stands out for its exceptional efficiency, engineered to meet the growing global demand for eco-friendly alternatives to plastic straws.
| Quantity: | |
|---|---|
Step onto the production floor, and the rhythmic, steady hum of the CFXG-80 immediately signals precision engineering at work. Designed to transform raw, eco-friendly paper into flawlessly rigid straws, this machine is a testament to modern manufacturing excellence. The sleek, cool touch of the 304 stainless steel chassis reflects a commitment to uncompromising hygiene and durability, which is absolutely essential for food-contact applications. Every mechanical component is meticulously crafted to ensure that the final product feels sturdy in the hand and performs flawlessly in any beverage, completely free from the soggy, unappealing texture that often plagues inferior alternatives.
By integrating this advanced equipment into your facility, you are not merely upgrading a single production line; you are investing in a streamlined, high-yield asset that dramatically reduces material waste and operational bottlenecks. The seamless integration of automated unwinding, precise gluing, and swift, razor-sharp cutting translates to a continuous flow of premium paper straws. This empowers your facility to meet surging global demands for sustainable packaging with absolute confidence, ensuring every batch delivered is of consistent, top-tier quality.
Parameter | Details |
|---|---|
Model | CFXG-80 |
Paper Layer | 3-4 layers (supports both 3 and 4 layers production) |
Paper Straw OD | 4.2-13mm (standard configuration), custom support for 3-15mm |
Paper Straw Length | 100-300mm (adjustable) |
Production Speed | Highest speed 80m/min |
Cutting System | 9 pcs online multi-blades |
Synchronism Tracking System | Servo motor synchronism tracking |
Machine & Core Parts Material | 304 Stainless steel (food-grade for contact parts) |
Paper Reel Stand | Auto paper connection function |
Control System | PLC touch screen (user-friendly interface) |
Total Power | 8.0kW (energy-saving design) |
Applicable Paper | 30-80gsm food-grade paper |
Applicable Voltage | 220V/380V (adaptable to global standards) |
Certification & Compliance | CE, ISO, FDA, EU 10/2011 |
Elevate your manufacturing capabilities with engineering that prioritizes both massive output and operational simplicity. The CFXG-80 is packed with innovative features designed to solve common production challenges and improve your bottom line.
The cutting-edge servo motor synchronism tracking ensures every single cut is razor-sharp and perfectly timed. This eliminates jagged edges, reduces material waste, and guarantees that every straw meets strict quality control standards right off the line.
The raw paper reel stand features an advanced automatic paper connection system. This allows for continuous material feeding without the need to halt the machine, thereby maximizing your daily output and preventing frustrating production hiccups.
A highly responsive, user-friendly touch screen grants operators complete control over speed, length, and system diagnostics. This drastically cuts down training time, prevents human error, and puts complex mechanical adjustments at your fingertips.
All parts that come into contact with the paper or glue are forged from premium 304 stainless steel. This guarantees an easy-to-clean surface that resists corrosion, ensuring your facility easily passes the most stringent health and safety audits.
Equipped with a robust multi-blade system featuring 9 individual blades, the machine delivers swift, clean, and uniform cuts even at its maximum velocity of 80m/min, ensuring zero compromise on the physical appearance of the final product.
Integrating this machinery into your operations provides a multifaceted strategic advantage, addressing everything from labor costs to international environmental compliance.
Achieve a remarkable return on investment with a maximum speed of 80m/min and a stable running speed of 65-75m/min. This high-velocity output ensures you can fulfill massive orders on tight deadlines while maintaining a consistently high yield and low scrap rate.
Penetrate strictly regulated global markets effortlessly. The equipment processes 30-80gsm food-grade paper and fully complies with FDA, EU 10/2011, CE, and ISO standards, ensuring your end products are universally accepted by top-tier food and beverage brands.
Transform your workflow with end-to-end automation. From unwinding and gluing to forming, cutting, and counting, the intelligent system minimizes the need for manual oversight, significantly lowering labor expenses and mitigating the risk of operational errors.
Adapt to diverse client requests on the fly. Seamlessly switch between 3-layer and 4-layer configurations, adjust outer diameters from 3mm to 15mm, and modify lengths from 100mm to 300mm to serve various beverage packaging needs, from juice boxes to bubble tea.
Built upon a heavy-duty steel frame, the equipment withstands the rigors of 24/7 operation. Modular glue applicators and a built-in fault diagnostic system make routine maintenance swift and straightforward, minimizing costly downtime and extending the machine's lifecycle.
Align with global ESG goals without sacrificing power. The optimized 8.0kW motor consumes significantly less electricity than legacy models, reducing your carbon footprint and lowering monthly utility overheads while producing eco-friendly alternatives to plastic.
Benefit from a comprehensive service ecosystem. From initial technical consultation and on-site installation to 24/7 global support and a solid 1-year warranty on core components, your investment is fully protected against unforeseen disruptions.
Partnering with a dedicated manufacturer means securing a reliable supply chain and continuous technological backing. We focus on delivering tangible value that scales perfectly with your ambitions.
Decades of specialized experience in engineering paper converting machinery ensures that every unit delivered is refined, rigorously tested, and ready for immediate, heavy-duty deployment on your factory floor.
Every machine undergoes intense stress testing and precision calibration before leaving our facility. This guarantees out-of-the-box readiness and long-term reliability, so you can start producing without frustrating setup delays.
We do not just supply equipment; we provide complete operational solutions. Our engineering team can customize voltage requirements (220V/380V) and integrate optional modules like automatic stacking or logo printing to fit your exact workflow.
With an optimized, highly experienced export network, we ensure secure, timely, and fully compliant shipping to your facility, regardless of your geographic location or local customs complexities.
Find answers to common technical inquiries below to help you make an informed decision about integrating this machinery into your production line.
The equipment utilizes an advanced servo motor synchronism tracking system paired with a 9-blade online cutting mechanism. This ensures the blades move in perfect, synchronized harmony with the extruded paper tube, delivering clean, precise cuts without crushing the straw, even at peak velocity.
Absolutely. The system is engineered to process 30-80gsm food-grade paper and seamlessly transitions between producing 3-layer and 4-layer straws. This allows you to manufacture everything from standard, lightweight beverage straws to highly durable options for thick milkshakes.
The glue system features a modular, easy-access design. We recommend a simple daily flush with warm water at the end of the operating shift to prevent adhesive buildup. Additionally, the PLC touch screen includes a self-diagnostic feature that alerts operators immediately if the glue flow becomes inconsistent.
Yes, the equipment can be custom-wired to operate on either 220V or 380V power supplies to perfectly match your regional electrical grid. It operates with a highly efficient total power consumption of just 8.0kW, making it exceptionally energy-efficient compared to older, power-heavy alternatives.
Due to the intuitive PLC touch screen interface and automated processes like the auto paper connection, the learning curve is exceptionally flat. A standard operator can become fully proficient in basic operations, parameter adjustments, and routine troubleshooting within just a few days of our provided training program.
