CFMB-100
Chuangfeng
| Quantity: | |
|---|---|

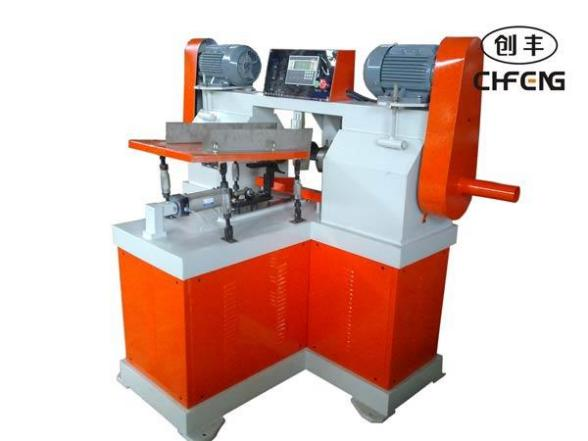

Transform your production floor with the CFMB-50 60-300mm Length Paper Tube Edge Polishing Machine, a masterclass in industrial engineering designed to elevate your packaging components. When you stand beside this equipment, the quiet, steady hum of its premium dual motors and the rhythmic, precise movement of the pneumatic cylinders convey an immediate sense of reliability and immense power. The tactile feel of the heavy-gauge, powder-coated safety chassis and the smooth, brushed stainless steel feeding tray reflect a meticulous manufacturing process built to withstand relentless daily operation. By automating the edge polishing, grooving, and curling phases, this machine eliminates the inconsistencies and bottlenecks traditionally associated with manual labor. It seamlessly shapes rigid paper cores, leaving behind a flawlessly smooth, burnished edge that feels premium to the touch and looks immaculate on the retail shelf. Whether you are crafting luxury cosmetic containers that require a pristine aesthetic or heavy-duty industrial tape cores that demand exact dimensional tolerances for high-speed unwinding, this equipment delivers unwavering precision. The integration of top-tier electrical and pneumatic systems ensures that your production line experiences minimal downtime, allowing you to meet aggressive delivery schedules while maintaining an exceptional standard of quality that your clients will instantly recognize and appreciate.
Model Number | CFMB-50 |
Applicable Paper Tube Diameter (Inner Diameter) | 50-152mm |
Wall Thickness | 3-15mm |
Parent Tube Length | 60-300mm |
Production Speed | 30 pieces/min |
Loading/Discharging | Automatic / Semi-automatic |
Total Power | 2.2kW |
Working Air Pressure | 0.6Mpa |
Power Supply | 380V / 3 Phase / 50Hz |
Machine Dimensions | 1850*1100*1500mm |
Machine Weight | 700kgs |
Operator Requirement | 1 person |
Main Components Brands | Wannan Motor, CHNT Electric, Jingwei Pneumatic |
The CFMB-50 is meticulously engineered to solve the most pressing challenges in tube finishing, blending raw mechanical power with refined digital control to optimize your facility's output.
Flawless Edge Burnishing: Utilizes high-speed, controlled friction to create a perfectly smooth, sealed edge on paper tubes, eliminating rough fibers and significantly enhancing the structural integrity of the final packaging.
Intelligent Control Interface: The centrally located, intuitive digital panel allows a single operator to input precise parameters, drastically reducing setup times and material waste during product changeovers.
Heavy-Duty Stability: Weighing in at 700kgs, the massive frame dampens operational vibrations, ensuring that even at maximum production speeds, the grooving and polishing accuracy remains absolute.
Energy-Efficient Power Delivery: The optimized 2.2kW motor system provides maximum rotational torque with minimal electrical draw, keeping your facility's utility expenses strictly managed without compromising on performance.
Adaptable Tooling System: Designed with a quick-release mechanism for polishing heads and grooving blades, enabling your team to switch between different tube profiles and diameters in minutes rather than hours.
Understanding the rigorous demands of modern packaging and industrial sectors, this equipment is built around six foundational pillars of excellence to maximize your operational success.
Time is your most valuable asset on the factory floor. This machine is precisely calibrated for short paper tubes, handling inner diameters of 50-152mm, lengths of 60-300mm, and wall thicknesses from 3-15mm. By achieving a consistent production speed of 30 pieces per minute through its semi-automatic and automatic loading designs, it effortlessly outpaces traditional manual methods, perfectly syncing with the rhythm of medium to large-scale production lines.
Equipment failure is not an option. The chassis and critical contact points are forged from high-grade stainless steel and heavy-duty wear-resistant components. By integrating globally recognized parts like CHNT Electric contactors and Wannan Motors, the machine is armored against the dust, vibration, and continuous use typical of harsh industrial environments, drastically slashing your long-term maintenance costs.
Protecting your workforce while maintaining high output is effortlessly achieved. The system requires only one operator who can master the intuitive control panel within hours, easily adjusting grooving depths and curling radii without complex training. Comprehensive safety protocols, including strategically placed emergency stop buttons and rigid protective covers, ensure total compliance with stringent workplace safety standards.
Standardization should never limit your market potential. We reject the one-size-fits-all approach by offering extensive customization options. Whether you require modifications to accommodate non-standard tube diameters or need bespoke tooling developed for unique curling and grooving patterns, this machine adapts to help your brand achieve distinct, eye-catching packaging designs.
Diversify your product offerings with a single investment. The CFMB-50 is highly versatile, seamlessly transitioning between processing food-grade safety curled tubes, premium cosmetic containers, and heavy-duty industrial cores like textile rolls and adhesive tape cores. It even caters to the specialty crafts market, adding immense visual and functional value across multiple sectors.
Your purchase is the beginning of a long-term partnership. Backed by over seven years of dedicated experience in paper machinery manufacturing, we provide an end-to-end support ecosystem. From comprehensive on-site installation and operator training to rapid spare parts dispatch and expert technical troubleshooting, we ensure your investment continues to yield high returns year after year.
Selecting the right machinery partner is critical to scaling your operations and maintaining a competitive edge in the global market. We are committed to delivering not just equipment, but comprehensive manufacturing solutions.
Proven Engineering Heritage: Decades of collective engineering expertise go into every machine we build, ensuring that the technology you receive is tested, refined, and proven in real-world scenarios.
Stringent Quality Assurance: Before any machine leaves our facility, it undergoes a rigorous multi-point inspection, testing everything from pneumatic pressure stability to electrical safety under maximum load.
Direct Manufacturer Advantage: By working directly with a dedicated manufacturer, you bypass intermediaries, ensuring transparent communication, faster lead times, and highly competitive pricing structures.
Global Deployment Capability: We have successfully exported and integrated our machinery into diverse production facilities worldwide, intimately understanding the nuances of international shipping, compliance, and remote support.
Continuous Innovation: Our engineering team constantly analyzes market trends and client feedback, allowing us to continuously upgrade our machinery with the latest automation and efficiency-enhancing technologies.
Below are detailed answers to the most common technical and operational inquiries regarding the CFMB-50 polishing machine.
The machine is engineered to handle paper tubes with a wall thickness ranging from 3mm up to 15mm. The robust 2.2kW motor and high-quality pneumatic cylinders ensure clean, smooth edge polishing even on the thickest, most rigid industrial cores without stalling or causing material tear.
Yes. While the machine functions exceptionally well as a standalone unit with its semi-automatic loading, its automatic discharging capabilities and programmable control interface allow it to be synchronized with upstream cutting machines and downstream packaging conveyors for a seamless workflow.
Thanks to the precision-engineered quick-release mechanisms and the intuitive adjustment handles, a trained operator can typically perform a complete tooling changeover and recalibration for a new tube diameter within 15 to 20 minutes, minimizing costly production downtime.
Routine maintenance is straightforward and designed for minimal disruption. We recommend daily clearing of paper dust from the polishing zone, weekly lubrication of the linear guides and pneumatic cylinder rods, and a monthly inspection of the motor belts and electrical contactors. A comprehensive maintenance schedule is provided in the user manual.
Absolutely. Our in-house engineering team can design and manufacture bespoke polishing and grooving heads tailored to your exact specifications. Whether you need a specific inner curl for a cosmetic jar or an angled groove for a specialized textile core, we can supply the exact tooling required to achieve your vision.
