CFMB-100
| Quantity: | |
|---|---|

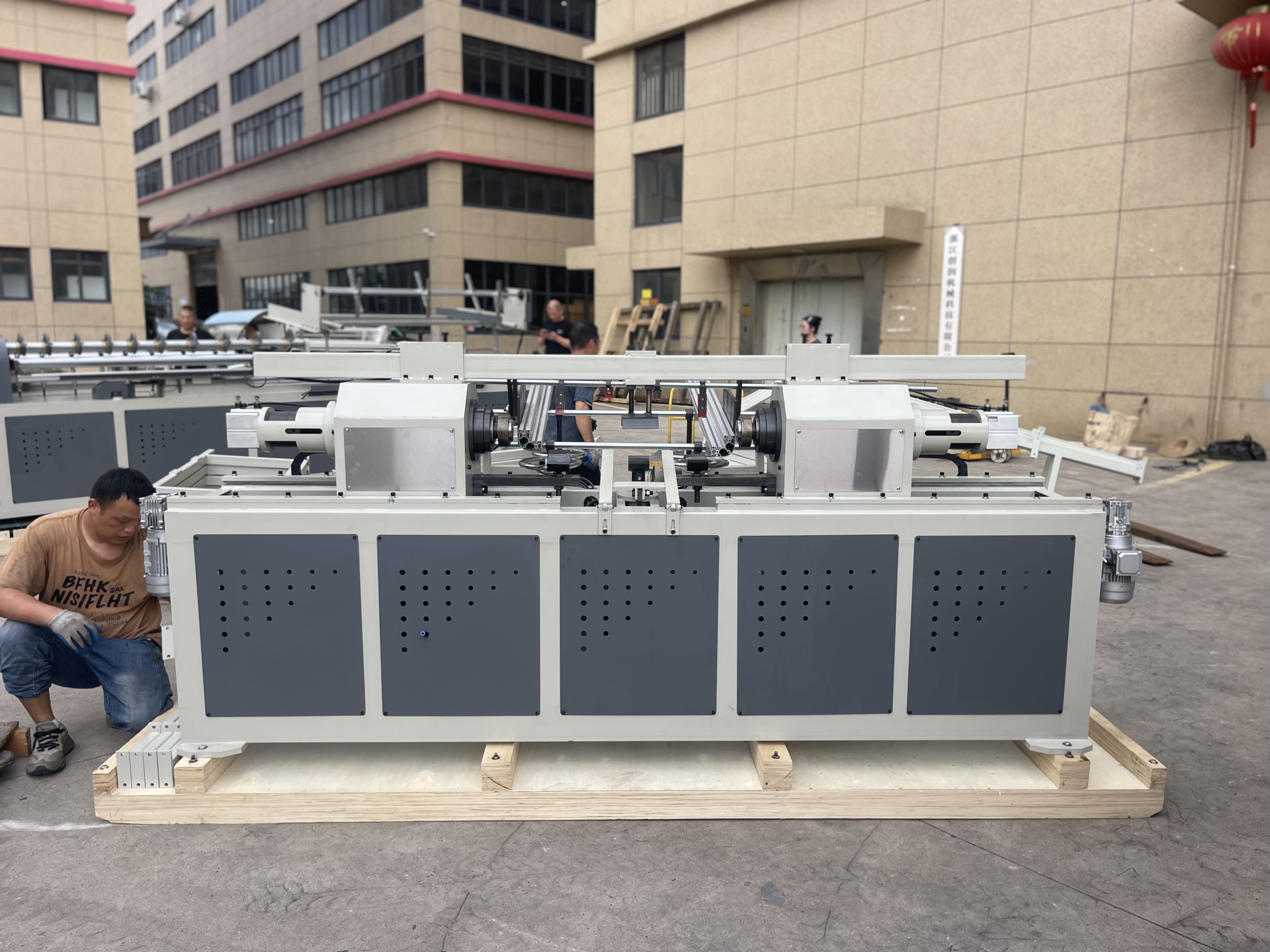

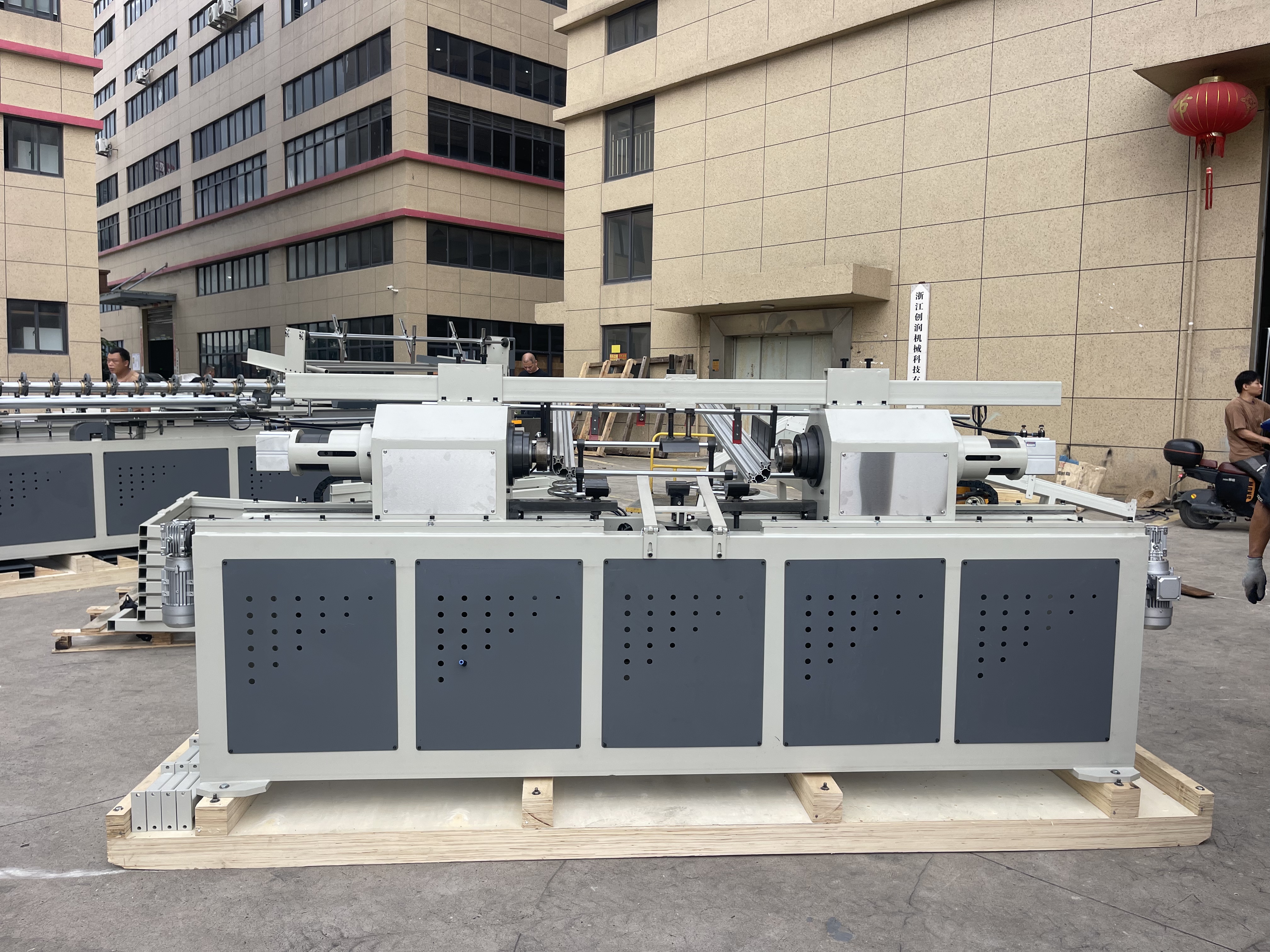

The CFMB-100 Paper Tube Edge Polishing Processing Machine stands as a specialized industrial asset engineered for the exacting refinement of paper core and tube extremities. Within the demanding production environments of cosmetics, advanced textiles, precision printing, and premium packaging, standard cutting procedures frequently leave behind coarse, irregular edges or fibrous burrs. When paper tubes are sectioned, the sheer force of the blade inevitably displaces fibers, creating micro-tears and a jagged rim. If left untreated, these loose fibers can shed dust into sensitive cosmetic packaging or cause delicate textile threads to snag and break during winding processes. This machine addresses this critical need by performing high-speed, accurate grinding and polishing to deliver a smooth, flawless edge finish. The polishing mechanism applies a calculated, multi-stage abrasive action that smooths the paperboard matrix without compromising its structural density. Built with an industrial-grade, heavy-duty chassis forged from specialized alloys, the equipment anchors the high-speed rotational components securely. This structural rigidity absorbs kinetic vibrations, emitting only a controlled, steady mechanical hum while ensuring the abrasive heads maintain absolute concentricity with the tube edges. Operators will immediately notice the refined tactile smoothness of the finished paper tubes, free from any abrasive textures, which fundamentally elevates the perceived value of the final packaged goods.
This advanced system efficiently removes burrs and irregularities from the cut ends of paper tubes, resulting in a smooth and even surface. This meticulous finishing process is vital for preventing downstream defects in the final product and ensuring a strictly professional appearance. Beyond mere aesthetics, the machine significantly amplifies production efficiency through its fully automated loading and discharging architecture. The sequence operates as a fluid mechanical choreography: raw tubes are fed into the hopper, seamlessly indexed into the polishing chamber, and ejected with perfect timing. This continuous loop eliminates the erratic pacing of manual feeding, locking in a predictable, high-volume output that drastically cuts down on manual labor requirements. The integration of an intuitive, human-centric control panel features clear visual indicators and tactile buttons, allowing floor operators to monitor throughput, adjust pressure settings, and manage complex polishing parameters with minimal training. Furthermore, comprehensive safety shielding and emergency protocols are built directly into the framework. Safety interlocks ensure that any breach of the protective housing immediately halts the spindle rotation, lowering the operational barrier to entry while strictly safeguarding facility personnel during rapid mechanical movements.
Model Number | CFMB-100 |
Applicable Paper Tube Diameter | 50-152mm (Customizable beyond standard range) |
Applicable Paper Tube Thickness | 4-15mm |
Parent Tube Length | 300-1600mm/60-300mm |
Production Speed | 30 pieces/min |
Loading/Discharging | Automatic |
Total Power | 2.2kW |
The specifications outlined in the table above highlight the versatile adaptability of the CFMB-100 model. Designed to accommodate a broad spectrum of standard dimensions, the equipment effortlessly handles paper tube diameters ranging from 50mm to 152mm and wall thicknesses between 4mm and 15mm. Recognizing that modern packaging demands frequently deviate from standard metrics, the system architecture supports flexible, non-standard customizations. The ability to process parent tube lengths from 300mm up to 1600mm, alongside segmented lengths of 60mm to 300mm, showcases the machine's immense flexibility. Packaging engineers are no longer constrained by rigid equipment limitations. If a new cosmetic line requires a uniquely thick-walled core for structural integrity, or a specialized printing roll demands an oversized diameter, the machine's adjustable clamping and grinding fixtures can be recalibrated to suit. This modularity extends the equipment's lifespan and return on investment, as it can evolve alongside shifting market trends and diverse client specifications.
Transitioning to a new automated finishing system requires more than just robust hardware; it demands a reliable partnership focused on long-term operational success. To guarantee that the edge polishing machine consistently delivers pristine results, comprehensive technical support encompasses every phase of the equipment's lifecycle. A dedicated technical support framework acts as a critical safety net for your production schedule. Upon delivery, certified technicians oversee the precise leveling and integration of the machinery into your existing workflow, ensuring optimal performance from day one.
Seamless Installation: Expert guidance ensures the machine is calibrated perfectly to your specific factory environment, layout, and power supply.
Operator Empowerment: Detailed, hands-on training modules lower the learning curve, allowing your on-site maintenance crew to perform routine upkeep and maximize the 30 pieces/min production speed safely.
Reliable Parts Supply: A robust inventory of proprietary wear parts—such as abrasive belts and lubricating pneumatic cylinders—is maintained for rapid dispatch, ensuring that your edge finishing capabilities never suffer from prolonged downtime.
Long-Term Assurance: Extended warranty provisions and responsive troubleshooting services provide peace of mind, allowing production teams to concentrate on fulfilling large-scale orders rather than worrying about unexpected mechanical interruptions.
