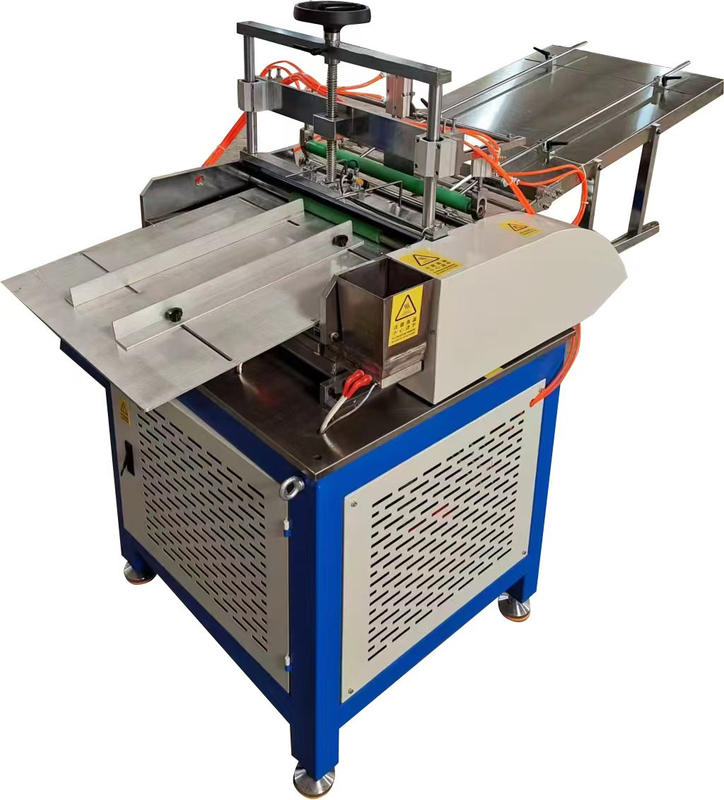

CFTB-50A
| Quantity: | |
|---|---|
The CFTB-50A automatic paper tube labeling machine represents the pinnacle of modern packaging engineering, meticulously crafted to transform how production facilities handle cylindrical containers. When you stand beside this equipment on the factory floor, the low, rhythmic hum of its precision motors conveys a sense of relentless reliability, while the sleek, brushed stainless steel and anodized aluminum chassis feels cool and robust to the touch. Every internal component is machined to exacting tolerances to eliminate micro-vibrations, ensuring that the labeling process remains whisper-quiet and exceptionally stable even during continuous, high-volume operation hours. The visual appeal of the flawlessly applied labels—completely free from any unsightly air bubbles, edge wrinkles, or vertical misalignments—speaks volumes about the uncompromising quality standards this machinery upholds. By integrating this sophisticated apparatus into your daily workflow, you eradicate the inconsistencies and sluggishness of manual application, unlocking a seamless, high-velocity packaging rhythm that directly elevates the final presentation of your goods. It is not merely a piece of equipment; it is a strategic asset engineered to refine your operational efficiency, reduce material waste, and deliver a flawless tactile and visual experience to the end-user.
Product Name | CFTB-50A Paper Tube Auto Labeling Machine |
|---|---|
Automation Grade | Fully Automatic |
Applicable Tube Diameter | 30-120mm / 60-200mm (Customizable) |
Applicable Tube Length | 100-420mm (Customizable) |
Labeling Speed | 10-40 pcs/min |
Labeling Accuracy | ±1.0mm |
Applicable Material | Paper tubes, cardboard tubes, composite cans |
Control System | PLC + Touch Screen |
Machine Material | Stainless Steel & Aluminum Alloy |
Power Supply | 220V/380V, 50/60Hz |
Discover the sophisticated mechanical engineering that sets this labeling apparatus apart from conventional alternatives. The system is built with a strict focus on seamless integration, operational fluidity, and uncompromising precision, ensuring that every cylindrical container passing through the line meets the highest visual and structural standards.
Intelligent Sensor Recognition: Instantly detects the precise positioning of incoming containers, eliminating missed applications and drastically reducing label waste.
Smooth Mechanical Transmission: Engineered with high-grade synchronous belts and precision rollers to ensure the container glides effortlessly through the labeling station without hesitation.
Wrinkle-Free Application: Utilizes a specialized dynamic smoothing mechanism that applies perfectly even pressure, resulting in a flawless, skin-tight label wrap.
Quick-Change Adjustments: Features intuitive calibrated handwheels, allowing line operators to switch between different container sizes in mere minutes.
Robust Safety Protocols: Equipped with immediate emergency stop mechanisms and electrical overload protection to safeguard both the operators and the internal circuitry.
Minimal Maintenance Architecture: Designed with easily accessible lubrication points and modular electronic components to drastically cut down routine servicing downtime.
Modern packaging environments demand absolute flexibility, and this equipment is engineered to adapt to a vast spectrum of cylindrical formats. Whether your facility is processing slender cosmetic tubes or large industrial composite cans, the system effortlessly adjusts to your specific dimensional requirements, providing a universal solution for your production floor.
Broad Diameter Compatibility: Seamlessly handles standard ranges of 30-120mm while also accommodating expanded ranges of 60-200mm.
Flexible Length Processing: Securely grips and processes container lengths spanning from a compact 100mm up to a substantial 420mm.
Deep Customization Options: Non-standard dimensions and unique container profiles can be fully accommodated through our specialized engineering modifications.
Multi-Material Support: Perfectly applies adhesive labels to paper tubes, dense cardboard cores, and various smooth composite cans.
Cost Consolidation: A single, highly adaptable unit replaces the need for multiple specialized machines, optimizing your capital expenditure and floor space.
Time is a critical metric in any large-scale operation, and this machinery is meticulously calibrated to maximize your daily output. By automating the most tedious and error-prone aspects of container decoration, it transforms a potential bottleneck into a high-velocity, reliable throughput center.
Consistent Output Rate: Maintains a steady, reliable labeling speed of 10 to 40 pieces per minute, easily keeping pace with upstream filling or sealing stations.
Continuous Workflow: Designed for uninterrupted, fully automatic assembly line integration, entirely eliminating the pauses and fatigue associated with manual labor.
Labor Optimization: Frees up valuable human resources, allowing your workforce to be reallocated to quality control and higher-level operational tasks.
Thermal Endurance: Engineered with advanced heat dissipation to sustain prolonged operational shifts without suffering from thermal fatigue or mechanical degradation.
The visual presentation of your product is the very first tactile and visual interaction the end-user experiences. This system guarantees that every single label is applied with immaculate precision, directly elevating the perceived value and premium feel of your packaged goods.
Pinpoint Precision: Achieves an industry-leading labeling accuracy of ±1.0mm, ensuring absolute uniform presentation across entire production batches.
Flawless Aesthetics: The dynamic smoothing rollers eradicate any possibility of trapped air bubbles, unsightly edge wrinkles, or skewed angles.
Perfect Alignment: Advanced tracking mechanics ensure the head and tail of the label align perfectly, creating a seamless and professional visual wrap.
Brand Enhancement: Delivers a premium, retail-ready finish that directly contributes to a stronger, more trustworthy brand image in the competitive market.
Navigating complex industrial machinery should not require an advanced degree in engineering. This equipment features a highly advanced digital architecture that simplifies daily operation, making sophisticated packaging processes accessible, measurable, and highly controllable for all authorized personnel.
Advanced PLC Core: Driven by a highly responsive Programmable Logic Controller that orchestrates every mechanical movement with absolute zero latency.
Intuitive Touch Interface: Features a high-resolution, full-color Human-Machine Interface for effortless parameter input, speed adjustments, and real-time monitoring.
Recipe Memory Storage: Allows operators to save and instantly recall specific dimensional settings for different product batches, eliminating trial-and-error setups.
Automated Diagnostics: Continuously scans for operational anomalies, instantly displaying clear troubleshooting alerts to prevent extended downtime.
Industrial production environments can be unforgiving, which is precisely why this labeling apparatus is constructed from the ground up using premium-grade materials. Its exceptional structural integrity ensures it remains a steadfast cornerstone of your production floor for years to come, resisting wear, tear, and environmental degradation.
Premium Stainless Steel: The main structural chassis is forged from high-grade stainless steel, offering exceptional resistance to ambient moisture and industrial corrosives.
Anodized Aluminum Components: Critical structural supports and guide rails utilize high-strength, lightweight aluminum alloy treated for maximum surface hardness.
Vibration Dampening: The heavy-duty frame absorbs and dissipates operational kinetics, ensuring the delicate labeling mechanism remains perfectly stable.
Sanitary Compliance: Smooth, crevice-free exterior surfaces make the equipment incredibly easy to wipe down and clean, meeting strict industrial hygiene standards.
Procuring heavy machinery is a long-term operational commitment, and we stand firmly behind our engineering. We provide an extensive, globally accessible support ecosystem designed to ensure your production lines never face prolonged interruptions due to technical uncertainties.
Comprehensive Remote Guidance: Access detailed video tutorials and live virtual assistance from our engineers for seamless installation and initial calibration.
Detailed Documentation: Supplied with exhaustive operation manuals, electrical schematics, and preventative maintenance schedules for your in-house engineering team.
Rapid Parts Dispatch: We maintain an extensive inventory of consumable and wear-and-tear components, ready for immediate expedited shipment to your facility.
Round-the-Clock Troubleshooting: Our dedicated technical specialists are available 24/7 to diagnose, advise, and resolve any operational queries swiftly and accurately.
Selecting the right equipment manufacturer is a critical strategic decision that impacts your entire supply chain. We distinguish ourselves through a relentless pursuit of engineering excellence and a deep, practical understanding of large-scale production demands. Partnering with us means securing a reliable pathway to operational superiority and long-term profitability.
Decades of Engineering Expertise: Leveraging years of specialized, hands-on experience in designing and refining automated packaging solutions.
Stringent Quality Control: Every single unit undergoes rigorous, multi-point stress testing with real materials before it ever leaves our manufacturing facility.
Direct Manufacturer Pricing: By entirely eliminating intermediaries, we provide premium-grade machinery at highly competitive investment levels.
Global Supply Chain Reliability: A proven, documented track record of delivering complex equipment safely and punctually to facilities worldwide.
Commitment to Innovation: We continuously upgrade our mechanical and software systems based on real-world feedback, ensuring you always have access to cutting-edge technology.
To assist your procurement and engineering teams in making an informed decision, we have compiled detailed answers to the most common technical inquiries regarding this labeling system's capabilities and maintenance requirements.
The transition process is remarkably streamlined to minimize line downtime.
Requires absolutely no specialized tools to perform the changeover.
Adjustments are made via clearly calibrated, ergonomic handwheels.
Typically takes a trained operator less than 10 minutes to complete a full dimensional switch.
Yes, the system is highly adaptable to various modern label materials.
Standard photoelectric sensors handle opaque paper and plastic labels perfectly.
Optional ultrasonic or specialized optical sensors can be seamlessly integrated for transparent or metallic materials.
Maintenance is designed to be minimal, predictable, and straightforward.
Routine wiping of the smoothing rollers to prevent any stray adhesive buildup.
Periodic lubrication of the transmission chains and guide bearings based on the operational hours.
Regular visual inspection of the sensor lenses to ensure they remain free of paper dust.
This depends entirely on the specific configuration and optional modules selected.
The core labeling and driving mechanism is primarily driven by precision electric servo and stepper motors.
Certain custom pneumatic pressing, feeding, or ejection modules may require a standard 0.4-0.6 MPa clean air supply.
The intelligent control system is specifically designed to prevent mislabeling and product waste.
Built-in tension and depletion sensors monitor the label roll continuously in real-time.
The machine will automatically pause the feeding mechanism and trigger a visual and audible alarm when the roll is empty.
This absolute safeguard prevents unlabelled tubes from passing down the line and mixing with finished goods.
