The shift toward sustainable, rigid paper packaging has elevated the operational demands placed on paper tube and core manufacturing facilities. Selecting the right equipment requires moving beyond basic specifications to understand how mechanical design impacts tube crush strength, production speed, and material waste. Misaligning machine mechanics with production goals leads to excessive downtime, high scrap rates, and compromised product tolerances. When you run a high-volume line, even a millimeter of variance in cut length or a slight drop in adhesive viscosity can ruin an entire batch of cores.
This guide deconstructs the operational phases of a paper tube machine, comparing winding methodologies and control systems to provide a technical framework for evaluating and shortlisting production equipment. We break down the exact mechanisms that drive efficiency on the factory floor, from raw material unwinding to final automated inspection.
Process Phasing: A standard paper tube machine operates through distinct, synchronized phases: web tensioning, layer-by-layer adhesive application, mandrel winding, in-line cutting, and automated inspection.
Winding Methodologies: Choosing between a spiral winding paper tube making machine and a convolute system dictates production continuousness, wall thickness capabilities, and structural integrity.
Control Systems: Upgrading to a servo controlled paper core machine significantly reduces cut-to-length variance and minimizes material waste compared to legacy mechanical linkage systems.
Evaluation Focus: Procurement decisions should prioritize changeover efficiency, inner diameter (ID) precision, and automated fault detection to ensure long-term ROI.

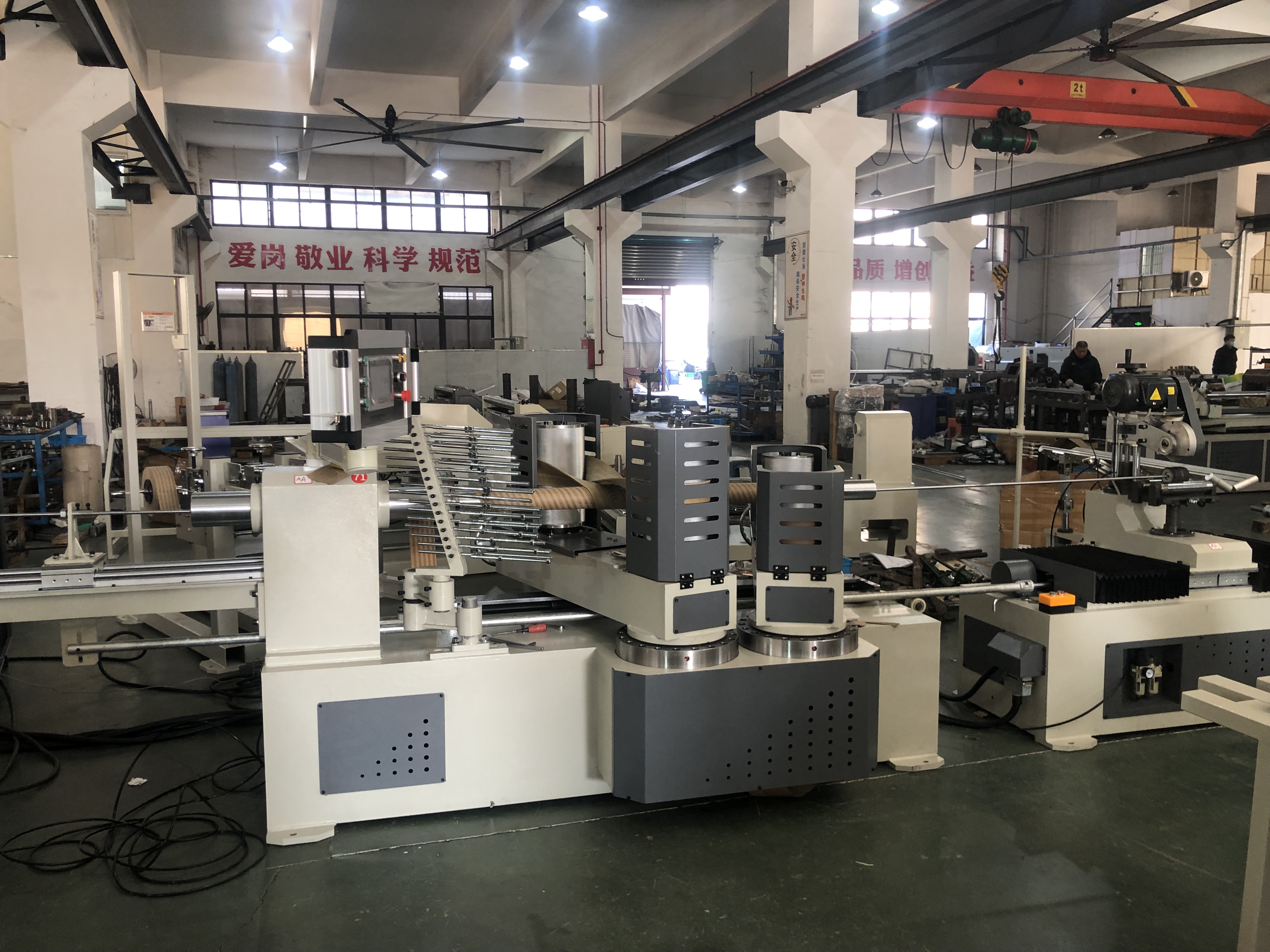

To evaluate equipment effectively, buyers must understand how raw paper plies transform into rigid cylindrical structures. The process demands precise synchronization across multiple mechanical zones. Without tight control over tension, glue application, and winding angles, the final product suffers from delamination or dimensional warping. Every stage from the unwind stand to the cutting carriage plays a direct role in the structural integrity of the finished core.
Production begins at the unwind stand. Multi-roll unwind stands feed kraft paper, test liner, cardboard, or chipboard into the system simultaneously. Managing multiple plies requires robust mechanical coordination. A standard heavy-duty core might require anywhere from 3 to 25 individual plies of paper feeding into the machine at the exact same speed. If one ply feeds faster than another, the final tube will warp, or the paper will snap under the stress.
Tensioning systems maintain consistent web tension across all layers. Pneumatic brakes or magnetic powder brakes apply physical resistance to the unwinding rolls. This resistance prevents wrinkling and ensures uniform tube density. Operators adjust tension based on paper grade, basis weight (GSM), and ambient moisture content. Proper edge alignment mechanisms keep the paper tracking straight as it moves toward the glue station.
To maintain continuous production, facilities utilize automated splicing systems. Stopping a machine to load a new roll of paper introduces defects into the winding process. A flying splice sequence generally follows these steps:
The expiring paper roll triggers a low-diameter sensor.
The new roll accelerates to match the exact line speed of the running web.
A mechanical arm presses the new web against the expiring web.
Double-sided splicing tape bonds the two webs together instantly.
A serrated knife severs the tail of the expiring roll.
Adhesive application dictates the radial crush strength of the finished core. Facilities typically choose between immersion (cascade) baths and precision roller-coating systems. Cascade systems drag the paper through a vat of PVA (Polyvinyl Acetate) or dextrin adhesive. Roller systems use rotating steel or rubber cylinders to apply a metered film of glue to the paper surface. PVA dries faster and provides superior water resistance, while dextrin offers high initial tack for heavy-wall applications.
Uniform adhesive coverage across every individual ply prevents internal delamination. Dry spots create air pockets between the layers, severely weakening the tube. Conversely, over-gluing saturates the paper fibers. Scraper blades and automated viscosity controllers regulate the exact volume of glue applied. They prevent paper saturation, which compromises curing times and final crush strength. Modern systems monitor glue temperature to maintain optimal viscosity throughout the entire production run.
Adhesive Issue | Common Cause | Mechanical Solution |
|---|---|---|
Dry spots on paper web | Scraper blade tension too high | Adjust micrometer dials on the scraper blade to allow a thicker glue film. |
Paper saturation / tearing | Glue viscosity too low (too thin) | Check temperature controls; add fresh adhesive to increase solid content. |
Delamination after cutting | Insufficient winding belt pressure | Increase pneumatic pressure on the winding head cylinders. |
Glue build-up on rollers | Extended machine idling | Engage slow-roll mode during pauses to keep adhesive moving. |
Glued plies converge on a stationary, rotating steel roller known as the mandrel. The mandrel dictates the exact inner diameter of the finished tube. Heavy-duty winding belts wrap around the paper plies and the mandrel. These belts utilize spring-loaded or pneumatic tensioning to grip the paper tightly.
The belts apply compressive force against the steel mandrel and drive the continuous rotation. Friction mechanics determine how tightly the plies bind together. Operators adjust the angle of the plies relative to the mandrel. This angle determines the tube's inner diameter and structural rigidity. Incorrect angles lead to gaps between the paper layers or overlapping inner plies, which ruins the internal tolerance of the core.
Winding belts come in several materials, each suited for different production demands:
Polyurethane Belts: Offer excellent wear resistance and grip, ideal for high-speed production of standard packaging tubes.
Rubber-Coated Belts: Provide maximum friction for heavy-wall industrial cores, preventing slippage under high torque.
Canvas-Backed Belts: Used in legacy systems for their flexibility, though they require more frequent replacement due to stretching.
Once the tube forms on the mandrel, it moves continuously toward the cutting station. Single or multi-knife cutting carriages travel alongside the moving tube. Rotary blade mechanics execute clean, burr-free cuts. The cutting carriage must match the exit speed of the wound tube exactly. If the carriage moves even a fraction of a second too slow, the continuous tube will crash into the blade assembly.
Synchronization prevents buckling or tearing during the cut cycle. After the cut, pneumatic ejectors push the finished core off the line. Modern systems integrate end-of-line optical inspection. High-speed cameras verify cut length and structural integrity. Defective tubes drop into reject bins automatically, while approved cores move to downstream conveyors, drying racks, or palletizing stations.
Matching the winding methodology to the specific end-use application ensures optimal performance. Manufacturers generally deploy one of two distinct production approaches. Each method offers unique structural advantages and throughput capabilities based on how the paper layers interact.

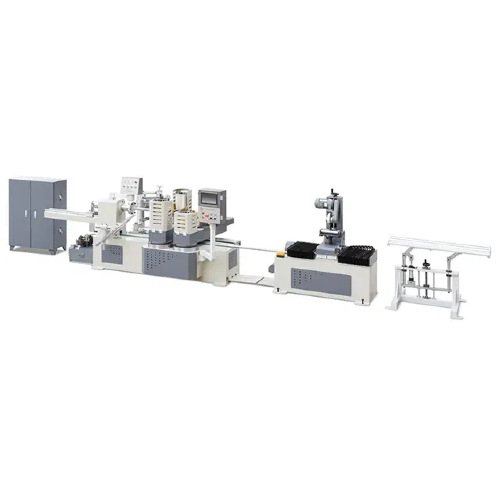

A spiral winding paper tube making machine feeds plies at an angle. This creates a continuous, unbroken cylinder cut to length on the fly. The continuous nature of this process allows for exceptionally high throughput, often exceeding 50 linear meters per minute depending on the diameter.
This methodology excels in high-volume production environments. Common applications include mailing tubes, toilet paper cores, textile yarn tubes, and standard packaging cylinders. The primary advantage is production speed and the ability to run continuously for hours. However, spiral winding has limitations on maximum wall thickness compared to convolute methods. Pushing wall thickness too high on a spiral machine can cause the belts to slip, the mandrel to deflect, or the inner plies to wrinkle under the immense compressive force.
Convolute winding operates on a completely different mechanical principle. A single sheet of paper feeds straight onto a rotating mandrel. The paper rolls over itself multiple times to build thickness. Once the desired thickness is reached, the machine glues the final edge and ejects the tube as a discrete length.
This method produces heavy-duty industrial cores, tape cores, and applications requiring extreme radial crush strength. Convolute winding yields exceptional structural integrity because the parallel layers resist crushing forces better than angled spiral layers. The main drawback is throughput. Convolute winding operates as a batch process. The machine must stop, eject the finished tube, and restart the winding cycle for the next piece, resulting in lower overall production speeds.
Assessing the shift from mechanical to electronic synchronization reveals major improvements in production tolerances. Modern manufacturing demands precision that legacy systems simply cannot provide. Electronic controls fundamentally change how these machines operate, removing the physical limitations of gears and chains.
Traditional machines rely on mechanical linkages. Cam-and-gear systems drive the winding belts and cutting carriages. Over time, these mechanical parts suffer from wear. Gears grind down, chains stretch, and bearings develop play. This mechanical wear leads to drift in cut lengths and increased maintenance downtime. Operators must frequently stop the machine to manually adjust the mechanical timing with wrenches and dial indicators.
A servo controlled paper core machine replaces these physical linkages with independent servo motors. These motors drive the winding belts and cutting carriages with micro-second precision. A central programmable logic controller (PLC) synchronizes the motors electronically using closed-loop feedback. An encoder on the mandrel reads the exact speed of the exiting paper tube and sends that data to the PLC. The PLC then commands the servo on the cutting carriage to match that exact speed instantly. This eliminates the physical wear associated with cams and gears, resulting in consistent, repeatable performance.
Servo controls achieve length tolerances of ±0.5mm or better. The cutting carriage accelerates instantly to match the exact speed of the exiting tube, executes the cut, and returns to its home position in a fraction of a second. This precision eliminates the need for secondary trimming operations. You no longer need a separate recutter machine to achieve exact lengths for demanding clients.
Reducing cut variance directly impacts material savings. When a machine cuts tubes too long, you waste paper and increase shipping weights. When it cuts them too short, you scrap the entire tube. Calculating the return on investment for servo systems involves tracking these reduced scrap rates over high-volume production runs. The material savings from eliminating over-cuts and short-cuts often justify the initial equipment upgrade within the first year of operation.
Servo systems integrate seamlessly with Human-Machine Interfaces (HMI). Operators interact with a digital touchscreen rather than turning wrenches on physical gears. The HMI allows for comprehensive recipe management. You can store parameters for different tube diameters, lengths, and production speeds directly in the system memory.
Executing a changeover on a modern servo machine follows a streamlined process:
The operator selects the pre-programmed recipe for the new tube size on the HMI screen.
The PLC automatically adjusts the servo motor speeds and electronic gearing ratios.
The operator physically swaps the steel mandrel to the new inner diameter.
The operator adjusts the winding belt angle and pneumatic pressure settings.
The machine is ready to run the new batch with zero mechanical timing adjustments required.
This reduces manual setup time from hours to minutes. Faster changeovers mean higher machine availability and increased daily output, especially for facilities running multiple short-run jobs per shift.
Comparing OEM specifications requires scrutinizing specific value-influencing factors. You must look past the marketing claims and evaluate the raw mechanical capabilities of the equipment. A robust paper tube core making machine must deliver on speed, precision, and long-term efficiency.
Throughput metrics can be misleading. Manufacturers often advertise linear meters per minute. However, you must evaluate actual usable cuts per minute based on your specific tube length. A machine running at high linear speeds might struggle to execute rapid, short cuts without jamming the carriage. Multi-blade cutting systems solve this by executing three or four cuts simultaneously, drastically increasing the output of short cores like toilet paper rolls.
Assess whether the machine frame allows for modular upgrades. Can you add more unwind stands later if you need thicker walls? Does the cutting carriage support an upgrade from a single knife to a multi-knife system? Scalable architecture prevents the machine from becoming obsolete as your production demands grow and client requirements change.
Inner diameter precision relies entirely on the rigidity and machining quality of the supplied mandrels. A cheap, poorly machined mandrel produces oval-shaped tubes or causes excessive friction. Inspect the steel grade, hardening process, and surface finish of the mandrels provided with the machine. High-quality mandrels feature polished, hard-chrome plating to reduce friction and resist wear from the abrasive paper.
In-line inspection capabilities separate standard machines from high-end systems. Look for the availability of optical sensors and laser micrometers. These sensors detect delamination, missing plies, or glue voids before the product reaches the pallet. Automated quality control prevents defective batches from reaching your customers and protects your facility's reputation.
Evaluate the power draw of the main drive motors. High-efficiency motors reduce long-term operational expenses. If your process requires rapid curing for heavy-wall tubes, factor in the energy consumption of integrated heating elements or infrared drying banks located near the glue station.
Analyze the accessibility and replacement costs of wear parts. Winding belts, cutting knives, and glue rollers require regular replacement. If these parts are difficult to access, routine maintenance will cause excessive downtime. Choose machines designed with quick-release mechanisms for belts and blades, allowing operators to perform routine swaps in minutes rather than hours.
Anticipating operational challenges during deployment ensures a smooth transition to full production. Even the most advanced machinery requires strategic management to operate efficiently. Address these common risks proactively to maintain high overall equipment effectiveness (OEE).
Adhesive accumulation on the mandrel or belts causes severe friction spikes. When friction increases, the paper tension skyrockets, leading to web snaps and catastrophic downtime. Cleaning hardened glue off a mandrel halts production for hours and risks scratching the polished steel surface.
Specify machines with automated self-cleaning lubrication systems for the mandrel. These systems apply a microscopic layer of food-grade oil or specialized synthetic lubricant to prevent glue adhesion. Additionally, utilize non-stick belt materials. Polyurethane belts with specialized coatings resist glue build-up and extend operational lifespans significantly.
Paper tube manufacturing involves high-speed rotating components, spring-loaded pressure rollers, and automated cutting blades. These mechanisms present severe pinch and laceration hazards. Untrained operators risk serious injury during web threading, jam clearing, or routine blade changes.
Ensure the equipment features CE-certified safety interlocks and light curtains around the winding head and cutting carriage. If an operator breaches the light curtain, the machine must execute an emergency stop instantly. Mandate comprehensive OEM training programs for setup, operation, and troubleshooting. Do not allow untrained personnel to adjust web tension, blade timing, or pneumatic pressures.
Bottlenecks occur if the tube machine outpaces downstream equipment. If the drying racks, recutters, or palletizing stations cannot handle the volume, the primary machine must stop. Stopping and starting a paper tube machine frequently increases scrap rates, as the tension and glue application fluctuate during acceleration and deceleration.
Design buffer zones between the tube machine and downstream processes. Utilize automated conveyor systems to sync the paper tube machine's output with downstream processing limits. Accumulation tables allow the primary machine to keep running even if the palletizer pauses for a roll change or minor fault.
The mechanics of a paper tube machine dictate its viability for specific industrial applications. Spiral winding favors high-speed continuous output, while convolute winding serves heavy-duty structural needs. Misunderstanding these core differences leads to inefficient production lines and compromised product quality. Buyers should prioritize servo-driven architectures for tight tolerance requirements and evaluate the robustness of the glue application and tensioning systems to ensure consistent crush strength.
To ensure a successful equipment acquisition, follow these next steps:
Compile a detailed specification sheet listing your required inner diameters, maximum wall thicknesses, and target cuts per minute.
Audit your current facility layout to determine the maximum footprint available for multi-roll unwind stands and downstream accumulation conveyors.
Request targeted performance metrics and OEE data from equipment manufacturers based on your specific paper grades and adhesive types.
Demand live demonstrations cutting your exact materials to verify cut-to-length accuracy and edge quality before finalizing any procurement decisions.
A: Spiral machines wind paper plies at an angle for continuous, high-speed production of standard tubes. Convolute machines roll a single sheet straight onto a mandrel, creating highly durable, thick-walled cores in discrete lengths.
A: Servo controls use precise electronic motors to synchronize the winding and cutting speeds, resulting in exact cut-to-length accuracy, reduced material waste, and faster automated changeovers via digital interfaces.
A: The primary materials are rolls of paper (such as kraft paper, recycled test liner, cardboard, or chipboard) and industrial adhesives (typically water-based PVA or dextrin glues).
A: The inner diameter is strictly determined by the outer diameter of the steel mandrel around which the paper plies are wound. Changing the tube size requires physically swapping the mandrel and adjusting the winding belts and pressure rollers.
A: Delamination is typically caused by improper web tension, inconsistent layer-by-layer adhesive application, incorrect glue viscosity, or insufficient pressure from the spring-loaded winding belts during the forming process.
A: Depending on the wall thickness and tube diameter, high-performance spiral winding machines can operate at speeds ranging from 20 to over 60 linear meters per minute.
A: Routine maintenance includes cleaning adhesive systems to prevent blockages, replacing worn winding belts and rotary cutting blades, lubricating mechanical bearings, and calibrating web tension sensors and pneumatic pressure systems.
