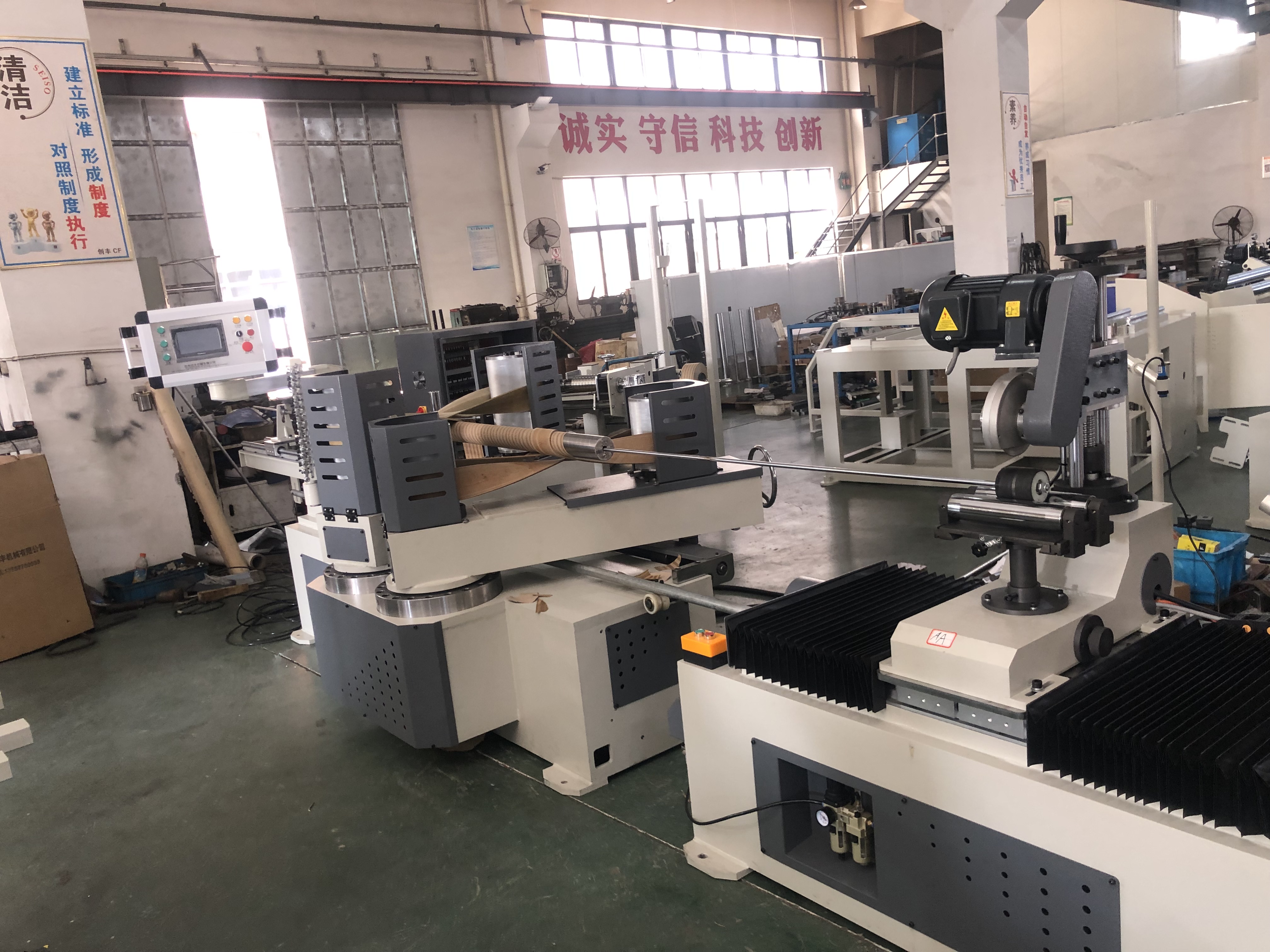

CFJG-SK-100 Medium paper tube machine
| Model No. | CFJG-SK-100 |
Parameter | Details |
Tube Diameter | 25–200 mm |
Tube Thickness | 1–10 mm |
| Cutting length | 500-5000mm |
CFJG-SK-100 can make paper tube inner diameter 25-200mm,thickness 1-10mm,length 500-5000mm . Making tube for BOPP, PET, PE, PVC, aluminum foil film, cling film, stretch wrap film, etc.
How to make flim tube core ?

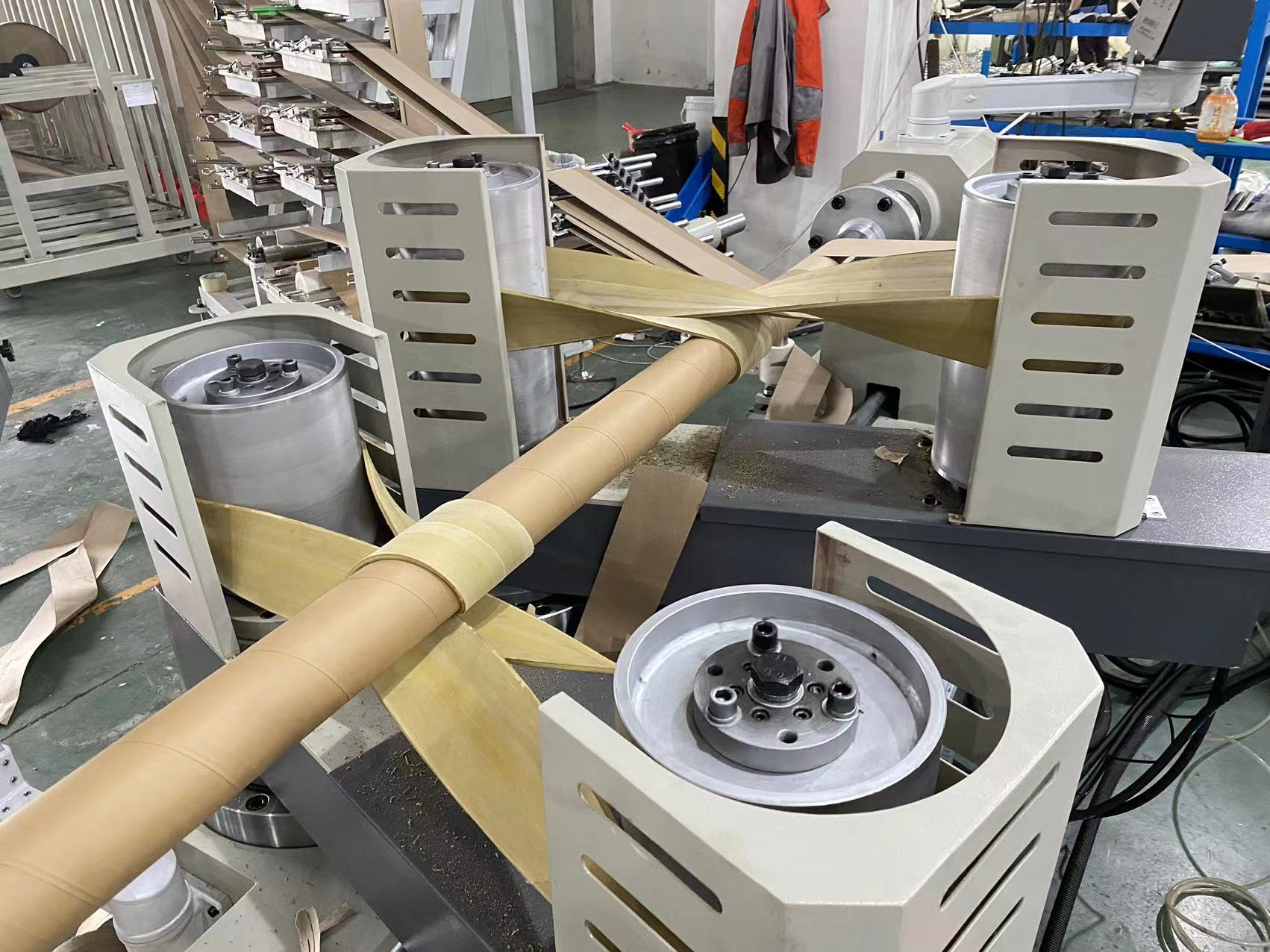

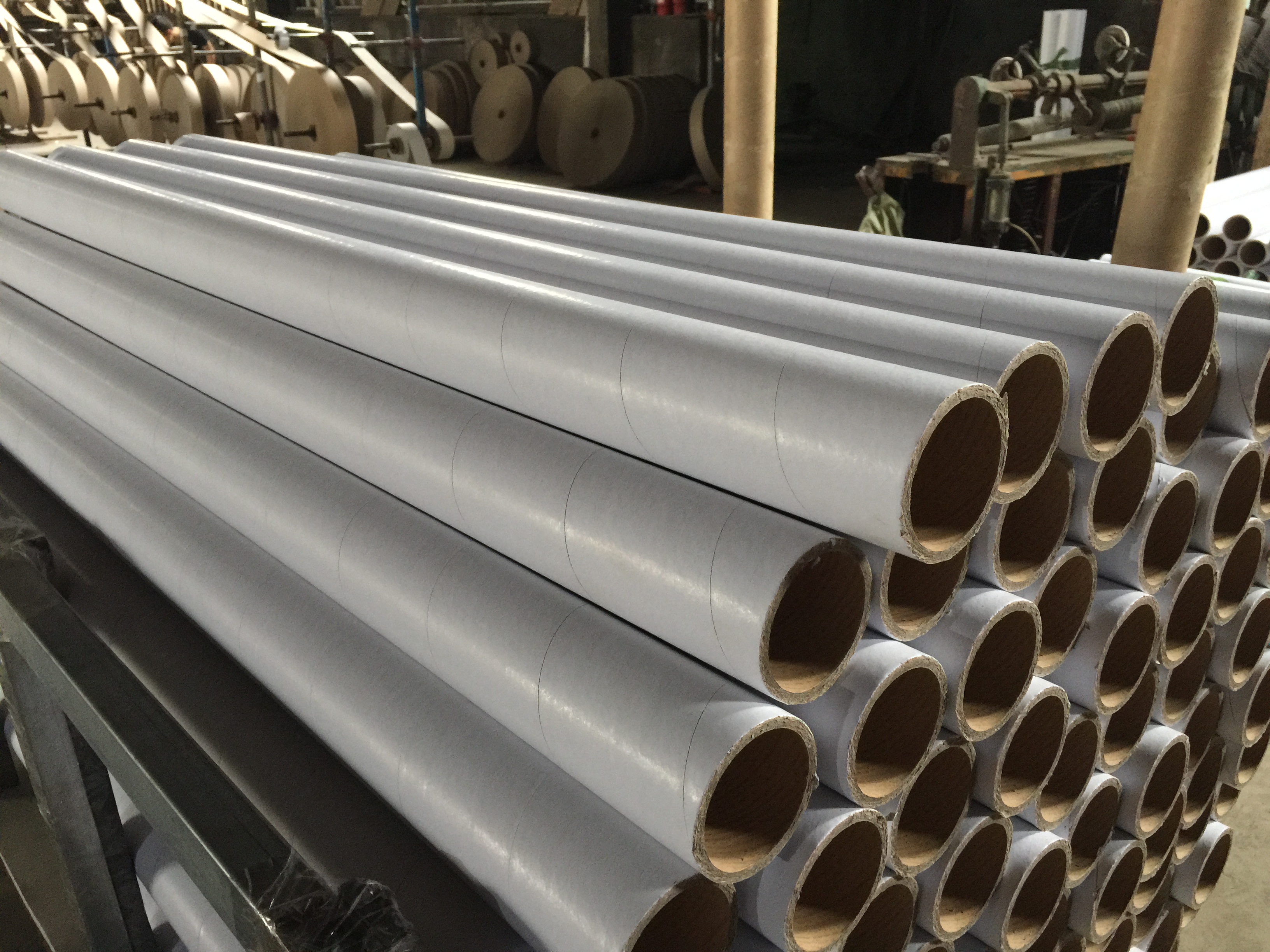

Paper tubes are usually made by winding multiple layers of Bobbin paper and the outer layer kraft paper or surface printing paper .
The inner diameter of paper tubes for plastic films (such as cling film, PE stretch wrap, BOPP film)mainly have below size for reference
3-inch paper tubes (most commonly used, widely used in supermarket large rolls of cling film and industrial stretch wrap).
Other common inner diameter specifications: 1.5-inch / 2-inch paper tubes: inner diameter approximately 38mm or 50mm, mostly used for small household cling film, sealing tape, or small-sized electronic films.
6-inch paper tubes: inner diameter approximately 152mm, mainly used for large industrial rolls and high-strength films for high-speed machines.
The thickness (wall thickness) of the film paper tube directly determines its radial compressive strength and must be selected based on the film's winding tension and total weight:
Standard commercial food wrap/lightweight film paper tubes: thickness is generally between 3.0mm and 5.0mm.
if tube thickness less than 5mm ,can chose CFJG-SK-50 model paper core machine . it fit for inner diameter 20-100mm,thickness 1-5mm,length 500-5000mm
Industrial heavy-duty stretch film/machine wrapping film paper tubes:
to prevent deformation during winding and high-tension stretching, the thickness is typically between 5.0mm and 10mm, or even thicker.

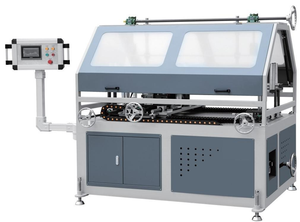

if tube thicknessrequest more than 10mm, suggest CFJG-SK-150 model paper core machine .
Under the conditions of the same thickness of paper tubes and the same number of layers, high grammage paper has denser fibers and greater thickness. Low-weight paper is thin and light, with loose fibers
The paper gsm shall be selected based on the paper tube's application, pressure bearing requirements and cost budget.
