Core cutting is often treated as an afterthought in busy production floors. However, inconsistent tube lengths or burred edges directly bottleneck downstream converting lines. This includes vital operations like film winding, tape slitting, and packaging. When master cores fail to meet strict dimensional standards, your entire production line suffers from misalignment and material waste.
Manual cutting inevitably introduces human error. An Automatic Carboard Tube Cutter removes these inconsistencies entirely. It stabilizes output to achieve 30 or more cuts per minute while controlling tight dimensional tolerances. Automation guarantees every single core matches your exact requirements.
We created this guide to help facility managers and procurement teams evaluate equipment without the marketing fluff. You will compare essential components, decode technical specifications, and build a foolproof RFQ. Read on to master the procurement of your next core cutting asset.
Precision Standard: Industrial baselines demand a cutting tolerance of ±0.1mm to ±0.5mm; anything looser risks winding defects.
The 5mm Rule: Wall thickness dictates blade choice—tubes under 5mm require circular blades for smooth edges, while walls thicker than 5mm need saw blades to prevent crushing.
Cycle Efficiency: True automation isn't just cutting; it requires servo-driven feeding, pneumatic clamping, and synchronized ejection.
Vetting Protocol: Never procure a machine without first sending physical sample tubes to the supplier for test cuts.
You must understand the underlying hardware elements before purchasing any machine. Cheaper builds routinely compromise on stability. This leads to premature wear and inconsistent product quality.
Vibration is the absolute enemy of clean cuts. A robust frame absorbs kinetic energy during the cutting cycle. Frame weight often exceeds 2000 kg on premium machines. This massive footprint effectively dampens resonance. Furthermore, spindle and clamping stability prevent micro-movements. Even a fraction of a millimeter in unintended movement causes severe burred edges on the final product.
The actual cutting tool determines your edge quality. High-Speed Steel (HSS) or Tungsten Carbide blades are standard for longevity in industrial settings. Motor capacity drives these blades. Typical installations range between 1.5kW and 5kW. Motor torque dictates performance. Underpowered motors will routinely stall. They will also tear thick cardboard walls instead of slicing cleanly through the material.
Modern equipment relies entirely on digital orchestration. Reliable HMI and PLC units coordinate the entire cycle seamlessly. You should look for servo-driven feeding mechanisms. These servos pair perfectly with high-resolution encoders. Together, they prevent "length drift" across large production batches. Your first cut will measure exactly the same as your thousandth cut.
Safety interlocks remain essential for workplace compliance and machine longevity. Saw-cutting mechanisms generate heavy particulate matter. You need integrated vacuum systems to manage this debris. Without proper extraction, dust fouls optical sensors and creates severe fire hazards. Always prioritize robust dust collection when evaluating hardware configurations.

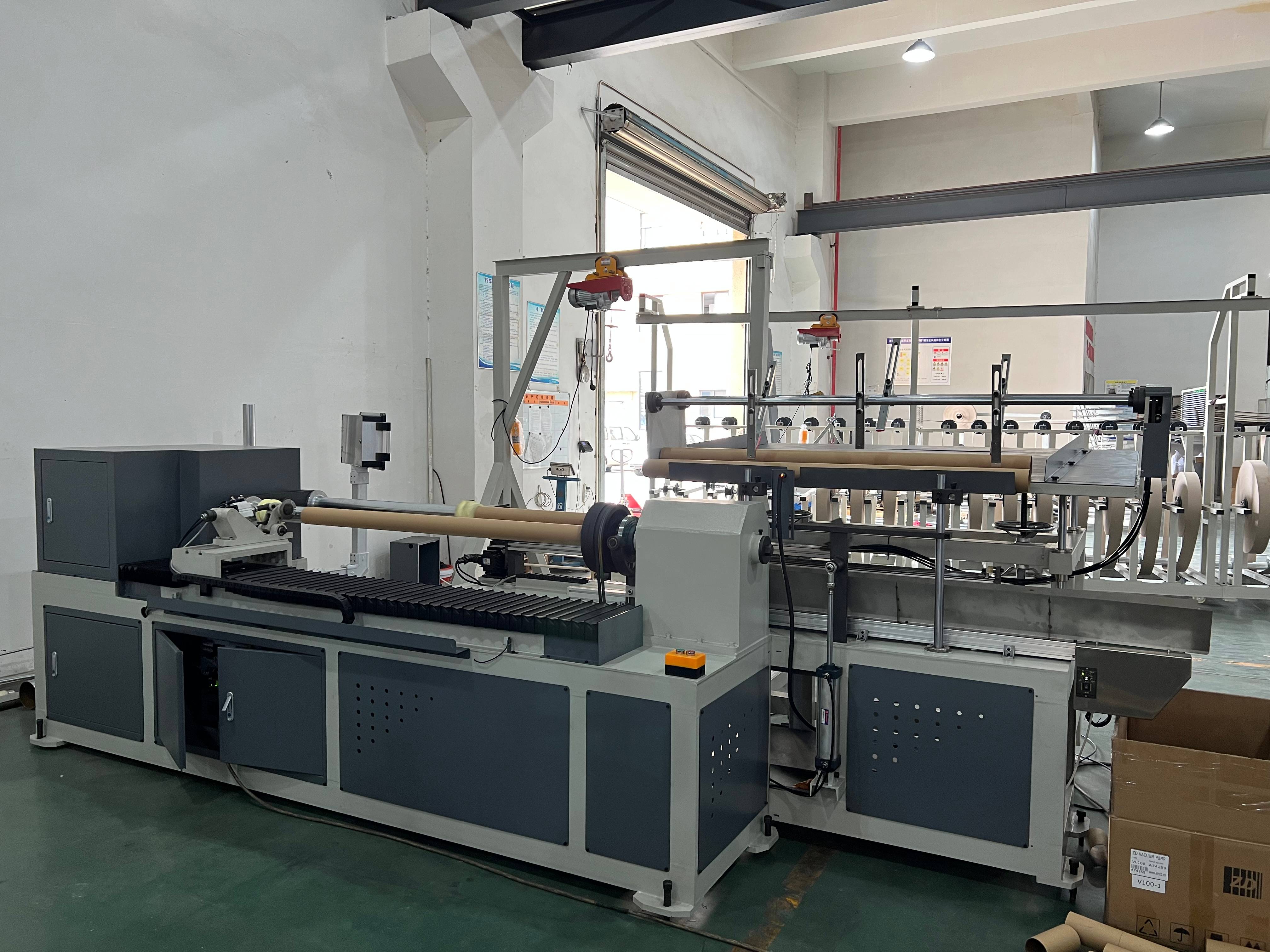

Understanding how the machine operates step-by-step allows buyers to identify potential failure points in the workflow. A true automated process seamlessly integrates multiple mechanical actions.
HMI Setup & Parameter Input: The operator uses the touchscreen interface. They input the target length, the specific wall thickness, and the required batch quantity.
Servo-Driven Feeding: The machine automatically advances the master cardboard tube. Precision encoder sensors continuously verify exact positioning along the track.
Pneumatic Clamping: Heavy-duty pneumatic clamps secure the tube. This strict immobilization prevents any rotation or crushing during blade contact.
Synchronized Cutting: The blade applies calculated downward pressure. Some manufacturers utilize dual-blade systems. These dual systems balance cutting pressure and actively prevent material tearing.
Ejection & Sorting: The cycle concludes quickly. Pneumatic releases open up. Integrated conveyors then move the finished core directly to designated collection bins.
Every single step requires perfect synchronization. If the pneumatic clamps engage too late, the blade will crush the tube. If the servo feed slips, length tolerances fail.
You must categorize solutions based on your facility volume and scalability. Selecting the right architecture helps buyers right-size their industrial investment. An unmatched machine creates instant production bottlenecks.
Machine Type | Best Application Scenarios | Core Trade-offs |
|---|---|---|
Semi-Automatic | Short-run, multi-size converting facilities. | Requires manual loading/unloading. Maintains digital precision for the actual cut. Lower upfront capital needed. |
Fully Automatic | 24/7 multi-shift operations demanding high output. | Requires larger facility footprint. Demands standardized master core inputs to maximize output stability. |
Multi-Blade Dedicated | Fixed-dimension, extremely high-volume ring cutting. | Exceptional for tape cores. Highly inflexible for varied lengths or diverse production runs. |
These units serve as excellent entry points for short-run facilities. They accommodate multi-size converting operations perfectly. Operators must handle manual loading and unloading tasks. However, the machine maintains strict digital precision for the actual cutting motion. They require significantly less upfront capital.
High-volume plants demand complete automation. These machines excel in 24/7 multi-shift operations. They deliver massive output, often achieving 100 to 300 cuts per minute depending on the target length. They command a higher footprint. You must supply standardized master core inputs to keep the automated feed running flawlessly.
Some operations only produce a single core size. Multi-blade cutters dominate fixed-dimension, high-volume ring cutting. Tape core manufacturers rely heavily on this architecture. They are incredibly fast but entirely inflexible. You cannot easily reconfigure them for varied lengths.
Suppliers often hide behind hyperbole and vague marketing terms. You must strip away this noise to establish realistic engineering baselines. Focus exclusively on the hard technical metrics.
The converting industry recognizes a standard 5mm threshold. Wall thicknesses between 1mm and 5mm utilize smooth circular blades. This prevents internal burrs. Conversely, 6mm to 15mm walls require aggressive saw-tooth blades. Attempting to cut a 10mm wall with a circular blade guarantees severe tube deformation. It will crush the cardboard layers instantly.
You must match your existing master tubes to the machine mandrel. Standard industrial models support 3-inch and 6-inch cores natively. Premium models offer expanding mandrels. These specialized mandrels accommodate diverse ranges from 50mm up to well over 130mm. Always verify mandrel availability before committing.
Precision varies by drive type. Expect ±0.1mm accuracy for premium servo-driven machines. Standard pneumatic variants typically deliver up to ±0.5mm. Anything exceeding ±0.5mm will cause compounding errors during high-speed film winding processes.
Reliable clamping requires steady utility supplies. Standard factory air supplies running at 0.6 Mpa are strictly required for pneumatic clamps. If your facility experiences air pressure drops, the clamping force will weaken. A weakened clamp allows the tube to spin, ruining the cut.
Procurement teams need actionable next steps for shortlisting vendors. Negotiating with an Automatic Carboard Tube Cutter manufacturer requires distinct technical preparation. Never buy blindly from a brochure.
Always demand physical proof. Send your specific master cores directly to the facility. Ask for an unedited video proof showing the manufacturer cutting your exact materials. Evaluate the final cut edge carefully. Look closely for excess dust, internal burrs, or delaminated cardboard layers.
Hardware is only half the equation. Assess the immediate availability of vital spare parts. You will eventually need replacement blades and fresh encoders. Furthermore, inquire about remote PLC troubleshooting support. The best manufacturers can securely dial into your HMI terminal to diagnose software faults instantly.
Copy these exact parameters into your next supplier communication. Providing this structured data eliminates guesswork and speeds up the quotation process.
Master tube specifications: Define your exact Material grade, Inner Diameter (ID), and Wall Thickness (Min/Max).
Production targets: List all finished lengths required and your target cuts per minute/shift.
Facility constraints: Detail your available voltage/phase power and compressed air capacity limits.
Compliance needs: Specify required CE/UL certifications and outline your integrated dust extraction requirements.
An automatic cardboard tube cutter acts as an uptime-protection device for your entire converting line. It is never just an auxiliary tool. Clean, perfectly measured cores prevent catastrophic winding failures downstream. A specialized Automatic Carboard Tube Cutter elevates your entire factory output quality.
Base your final purchasing decision on structural rigidity, encoder precision, and successful sample testing. Do not make decisions based solely on claimed maximum machine speeds. A fast machine cutting poorly wastes massive amounts of material.
We encourage you to gather your master core samples today. Document your specific facility requirements. Initiate technical dialogues with vetted manufacturers using the precise RFQ criteria outlined above.
A: Blunt blades or incorrect blade types usually cause this issue. Applying a circular blade to a 10mm wall crushes the material. Insufficient pneumatic clamping force also allows micro-movements during the cycle. You must ensure clamps hold the tube perfectly rigid. Match your blade design to your specific wall thickness.
A: Yes, especially if you cut thick cardboard using a saw blade. Circular blades on thin walls generate minimal dust. However, saw cutting produces heavy particulate. You must integrate vacuum extraction to protect sensitive servo encoders from fouling. Proper dust collection maintains factory safety and prevents sensor failure.
A: Wear depends entirely on material density and daily run hours. High-Speed Steel (HSS) blades typically require inspection every few weeks under continuous multi-shift operation. You will need to re-sharpen them regularly to maintain clean edges. Consistent lubrication and correct downward pressure settings significantly extend your blade lifespan.
