| Quantity: | |
|---|---|
Specification | Details |

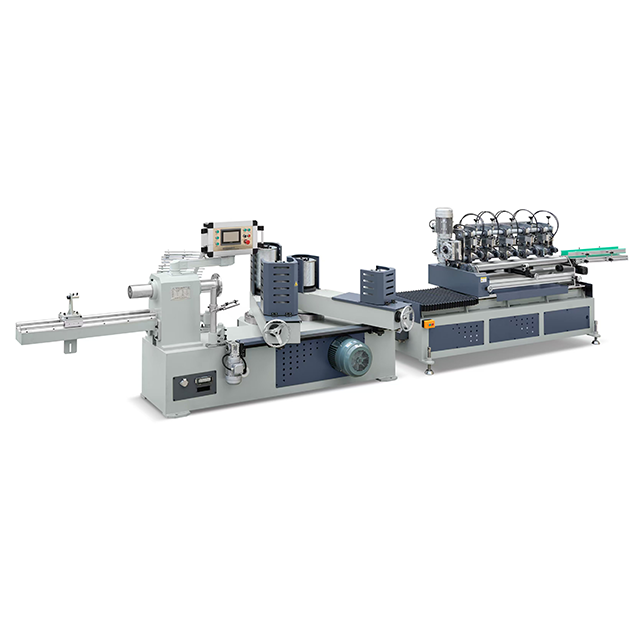

Model | CFJG-30 |
Production Speed | 1-25m/min (related to Tube size and material quality) |
Paper Tube Inner Diameter | 20-100mm |
| Paper Tube Cutting Length | 100-1200mm |
| Wall Thickness | 0.5-10mm |
Power Supply | 380V/50Hz (customizable for regions) |
Blade Quantity | 5 blades (standard) |

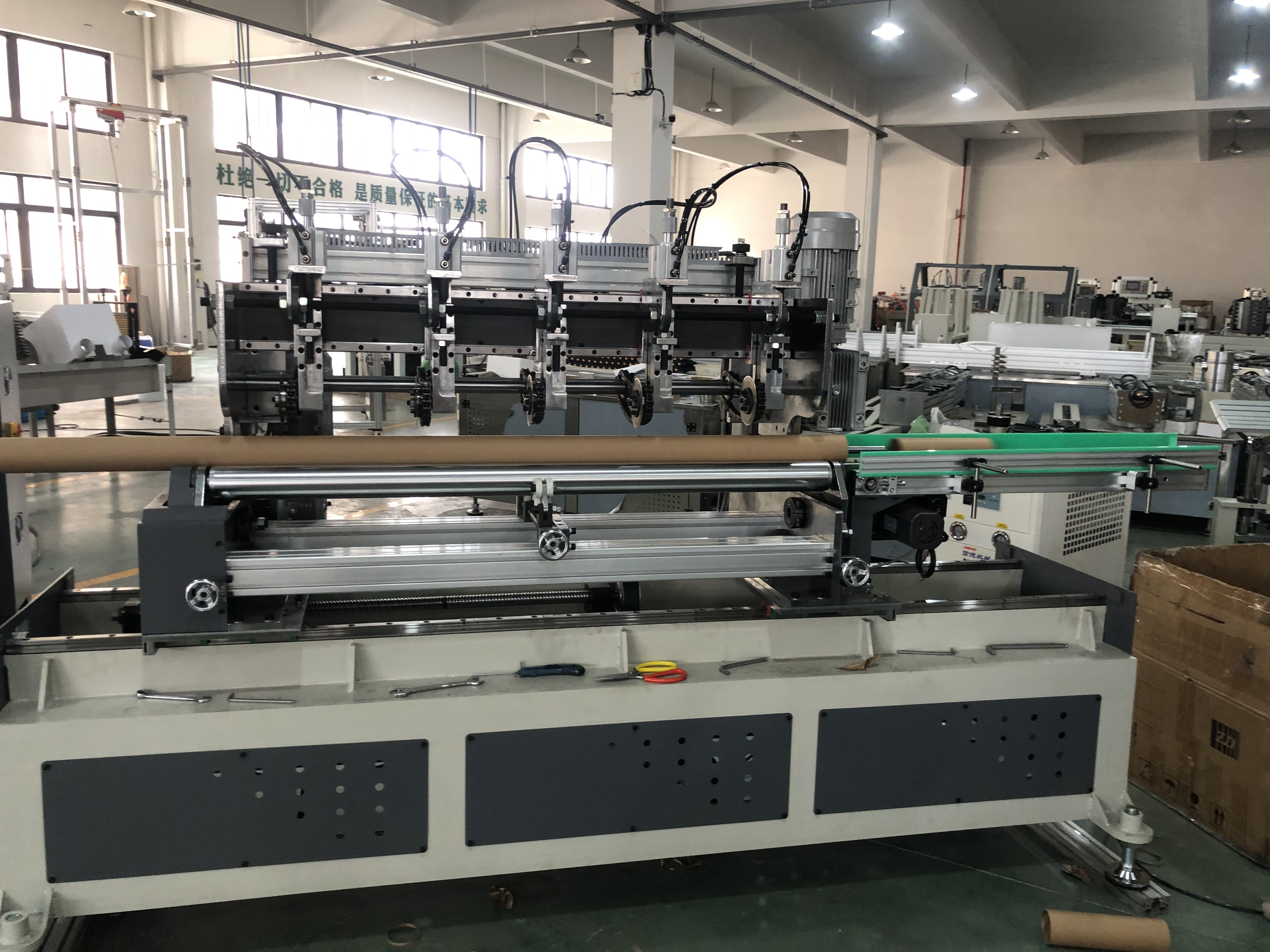

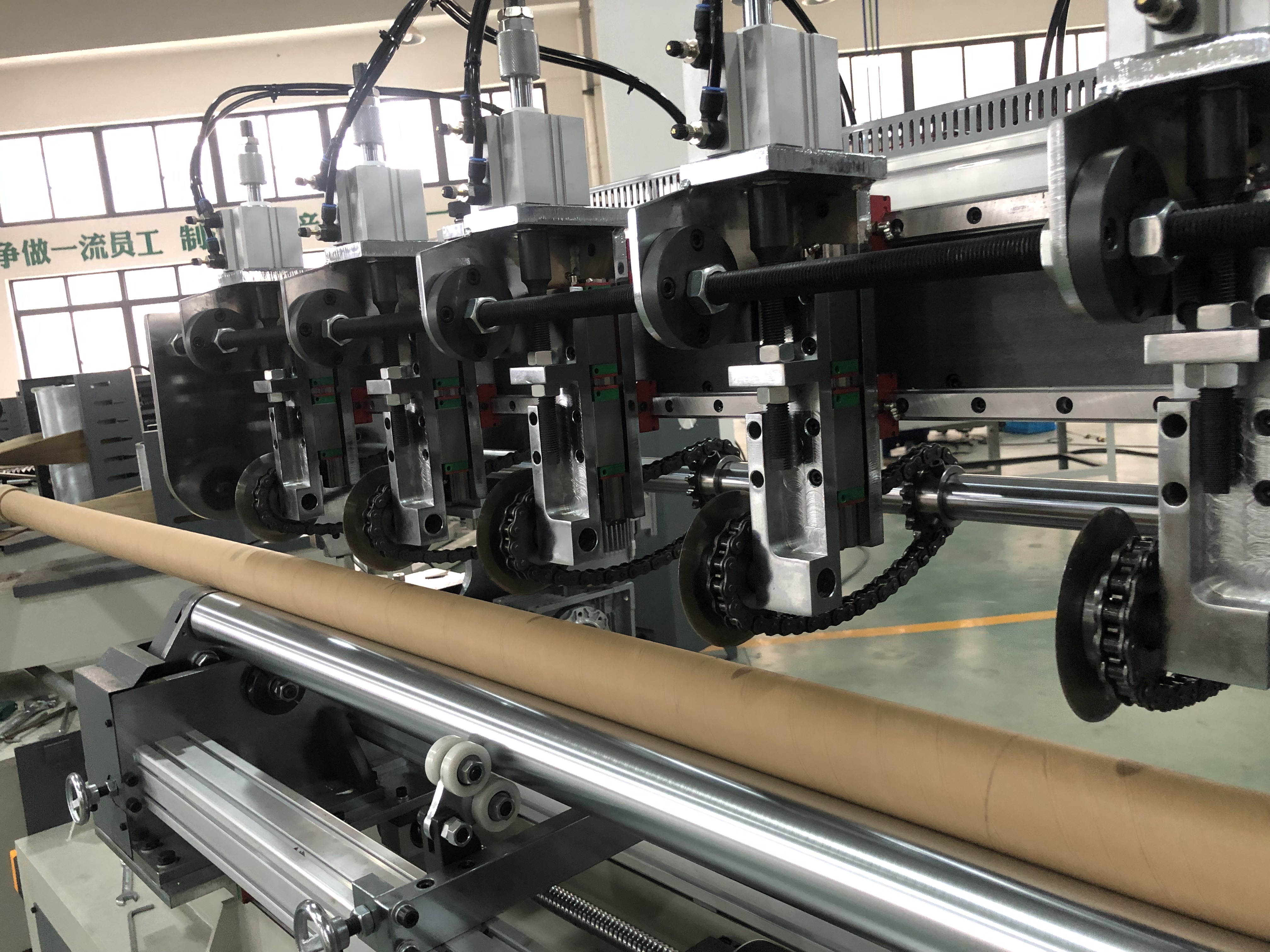

Driven by an advanced servo motor system, this configuration guarantees precise synchronization during high-speed operations. You can rely on the quiet, rhythmic mechanical hum of the motor, which reflects the balanced engineering of the heavy-duty steel frame. Operators benefit from wear-resistant alloy blades that deliver clean, burr-free slices on every cycle, maintaining strict tolerances without constant recalibration. Cutting Length：Thickness 1-5mm: 100-1200mm / Thickness＞5mm: 200-1200mm (standard 5 knives).

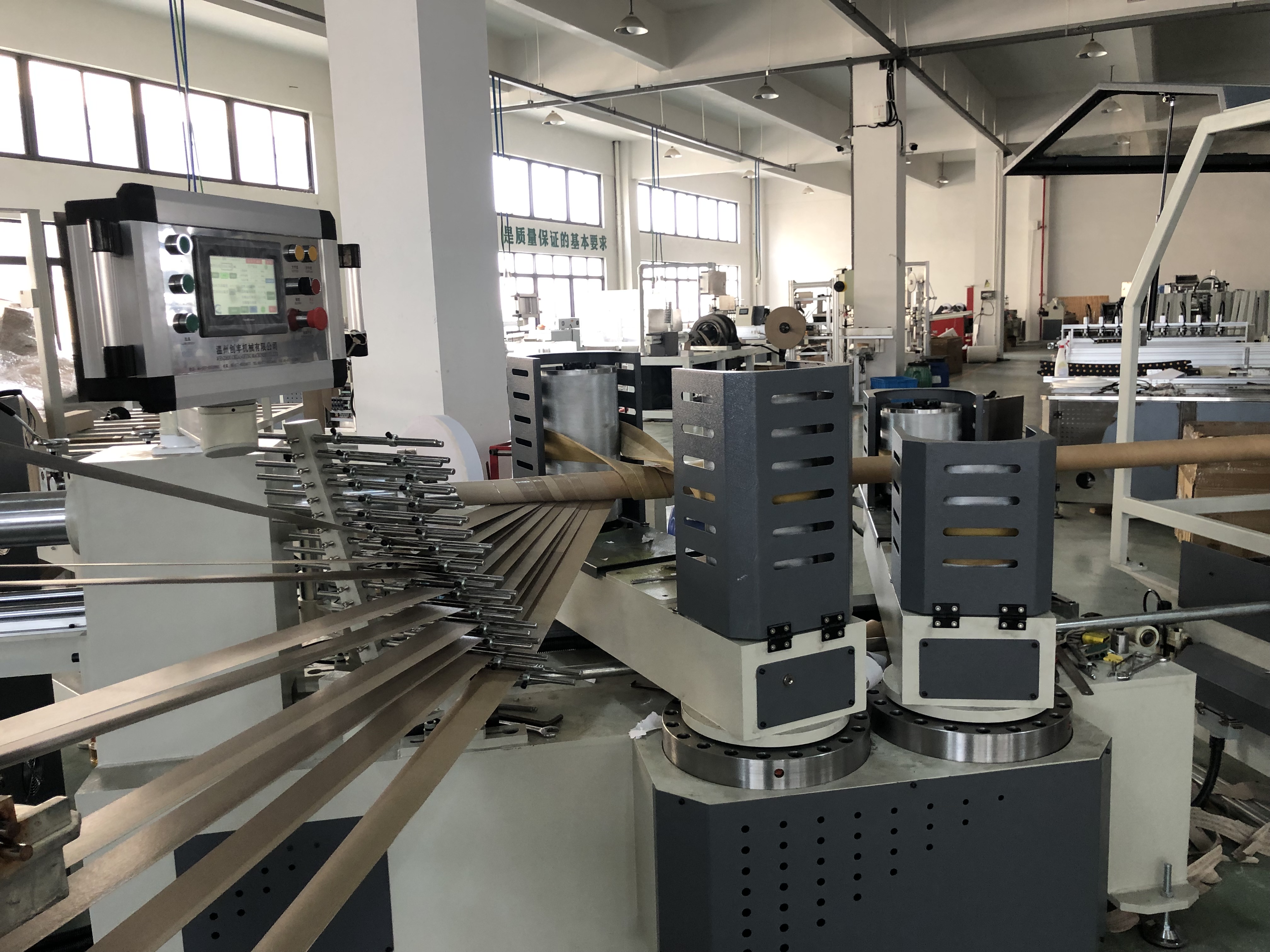

Experience the firm, unyielding grip of the double-belt mechanism as it wraps multiple layers of kraft paper into a rigid cylinder. The four-head design distributes tension evenly across the surface, preventing material slippage and ensuring the structural integrity of the final core, even under continuous heavy-load production schedules.
Handling massive rolls of raw material is simplified with the integrated hoist lifting device. This modular configuration drastically reduces manual lifting, protecting operators while accelerating the setup phase. The thick metal framework of the 16-layer stand anchors firmly to the factory floor, neutralizing vibrations that could otherwise disrupt the paper web tension.
Proper adhesive application is the backbone of any durable paper core. This unit sprays glue evenly across both sides of the paper layers, ensuring maximum bonding strength. The enclosed design minimizes the sharp odor of industrial adhesives in the workspace while maintaining a consistent fluid flow, preventing dry spots that could compromise the tube's crush resistance.
Recognizing that different production lines require specific adhesive treatments, we offer alternative glue stand modules. These units are engineered for quick integration, allowing facility managers to switch between different glue types or application methods based on the specific porosity and thickness of the paper stock being processed.
The inner paper stand feeds the foundational layer of the tube. It features precise tension controllers that maintain a taut, wrinkle-free feed. This critical component ensures the interior surface of the finished cylinder remains entirely smooth to the touch, which is essential for applications where the core will house delicate fabrics or thin films.
For food-grade packaging, such as potato chip cans, an airtight seal is mandatory. The optional heating device radiates controlled thermal energy to bond aluminum foil layers instantly. Operators can feel the ambient warmth near the module as it cures the specialized adhesives, resulting in a moisture-resistant barrier that protects perishable contents from environmental degradation.
When processing smaller diameters or thinner walls, the machine utilizes the highly refined blade profile standard to the CFJG-20 series. These sharp, low-friction cutters slice through delicate material without crushing the edges, leaving a perfectly round, unblemished rim on every single piece.
Designed specifically for lighter packaging needs, this 5-layer stand applies adhesive to a single side of the paper web. It is an efficient, material-saving solution for producing composite paper cans where excessive glue weight is undesirable, yet structural firmness remains a priority.
Complementing the single-side gluing unit, the 5-layer paper stand offers a compact footprint for specialized runs. Its straightforward mechanical layout allows operators to thread new reels rapidly, minimizing downtime during material changeovers and keeping the production rhythm steady.
Wenzhou Chuangfeng Machinery Co., Ltd. understands that every production line has unique needs, which is why we offer tailored solutions for the CFJG-30 High Speed Multi-blades Paper Tube Making Machine. We strictly adhere to international manufacturing and safety standards, including CE and ISO certifications, ensuring that every unit delivered meets rigorous industrial benchmarks for continuous operation.
Intelligent Automation Upgrades: We integrate advanced PLC control systems with an intuitive human-machine interface (HMI). This allows operators to manage complex winding and cutting parameters with a simple touch, drastically reducing manual labor and minimizing the risk of operational errors.
Deep Hardware Customization: Depending on your regional requirements, we configure the power supply (standard 380V/50Hz) to match your local grid. Furthermore, the machine's framework and blade setups can be modified to accommodate highly specific tube diameters and unconventional material thicknesses.
Comprehensive Safety Mechanisms: Factory safety is our priority. We build multiple emergency stop protocols and physical safety guards into the machine's architecture, protecting your workforce during high-speed, continuous manufacturing cycles.
Global After-Sales Network: Our commitment extends far beyond the initial delivery. We provide a lifetime service system that includes global on-site installation, professional operator training, rapid dispatch of spare parts, and 24/7 remote technical troubleshooting to keep your lines moving.
The High Speed Multi-blades Paper Tube Making Machine (CFJG-30) is versatile enough to serve a wide range of industries, producing structurally sound paper tubes for:
· Packaging Industry: Manufactures small-diameter tubes for cosmetics, pharmaceuticals, and food packaging (e.g., lipstick containers, pill bottle cores). The resulting tubes feature a smooth, rigid finish that prevents crushing during transit and enhances the final product's visual presentation.
· Textile Sector: Produces heavy-duty paper cores for yarn, thread, and fabric rolls. These cores boast exceptional radial crush resistance, ensuring they do not deform under the intense pressure of tightly wound industrial textiles, which facilitates smooth unwinding on downstream looms.
· Household & Daily Use: Creates tubes for toilet paper, paper towels, and kitchen wraps. The machine maintains a strictly consistent wall thickness, which is vital for preventing the collapse of the roll structure during retail display and daily consumer handling.
· Industrial Applications: Engineers rugged paper cores for adhesive tapes, film rolls, and metal wire spools. The dense, multi-layered construction absorbs mechanical shocks and resists environmental moisture, protecting valuable industrial materials in harsh warehouse environments.
By combining rapid output speeds, exact dimensional precision, and modular adaptability, the CFJG-30 model empowers manufacturing facilities to scale their operations, minimize material waste, and secure a competitive advantage in the global paper tube manufacturing market.
