1. With Doulbe Blades Cutter
2.Spiral Winding Making Machine
3.Large Size Tube ID76-300 or Customized
4.Thickness 15mm
| Quantity: | |
|---|---|

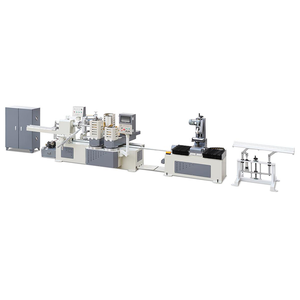

Step onto the factory floor and listen to the steady, rhythmic hum of the CFJG-SK-150 With Two Blades Cutter Paper Core Making Machine. This robust piece of engineering is crafted from heavy-gauge industrial steel, presenting a sleek, metallic finish that speaks volumes about its inherent durability. When you run your hand along the solid chassis, you can feel the absolute lack of vibration, even when the machine is operating at peak rotational speeds. It is meticulously designed to transform raw kraft paper into rock-solid paper cores with uncompromising structural integrity, emitting the crisp, clean scent of freshly processed paper during every production cycle.
By integrating advanced CNC mechanics with a highly responsive synchronous tracking system, this equipment eliminates the frustrating bottlenecks associated with traditional core manufacturing. You will no longer deal with jagged edges, loud grinding noises, or crushed tubes that lead to material waste and client complaints. Instead, every paper tube emerges with a flawlessly smooth, mirror-like cut end that feels polished to the touch. It empowers your production line to handle massive orders effortlessly, ensuring your output remains consistently premium, ultimately elevating your market reputation and driving long-term operational profitability.
Parameter | Details |
|---|---|
Machine Type | CNC Dual blade paper core making and cutting machine |
Tube Diameter | 76–305 mm |
Tube Thickness | 1.5–15 mm |
Cutting length | 300-6000mm |
Cutting blade | Round knife(double) |
Cutting method | The paper rotates and the knife rotates with the follower |
To maintain a competitive edge in the demanding packaging and converting industry, your facility requires equipment that goes far beyond basic functionality. The CFJG-SK-150 is engineered with a suite of premium features specifically designed to optimize your operational workflow and maximize output quality.
Flawless Edge Finish: The specialized cutting mechanism ensures every single core is sliced with surgical precision, leaving zero burrs and eliminating the need for secondary edge-sanding processes.
Heavy-Duty Chassis Construction: Built with a reinforced steel framework, the machine absorbs high-frequency vibrations, ensuring whisper-quiet operation and extending the lifespan of all moving components.
Intelligent Material Handling: The tension control and gluing systems work in perfect harmony, creating tightly wound, crush-resistant cores that can withstand immense external pressure.
Rapid Setup and Changeover: The intuitive mechanical design allows your operators to switch between different tube diameters and thicknesses in a fraction of the time compared to legacy machines.
Energy-Efficient Drive System: Equipped with high-torque, low-energy consumption motors that provide relentless power while keeping your facility's electrical overhead strictly under control.
Time is the most critical currency in large-scale manufacturing environments. The CFJG-SK-150 redefines output capabilities by seamlessly merging a dual-blade architecture with state-of-the-art CNC processing. This powerful synergy drastically reduces the cycle time for each cut, allowing your facility to meet aggressive delivery deadlines without straining your resources.
Dual-Blade Acceleration: Utilizing two round knives simultaneously cuts the processing time in half, exponentially increasing your daily yield of finished paper cores.
Continuous Uninterrupted Operation: Engineered to run flawlessly over long shifts, minimizing thermal buildup and mechanical fatigue during high-volume production runs.
Optimized Resource Allocation: Because the machine operates at such a high velocity with minimal errors, you can confidently reallocate your workforce to other critical areas of your plant.

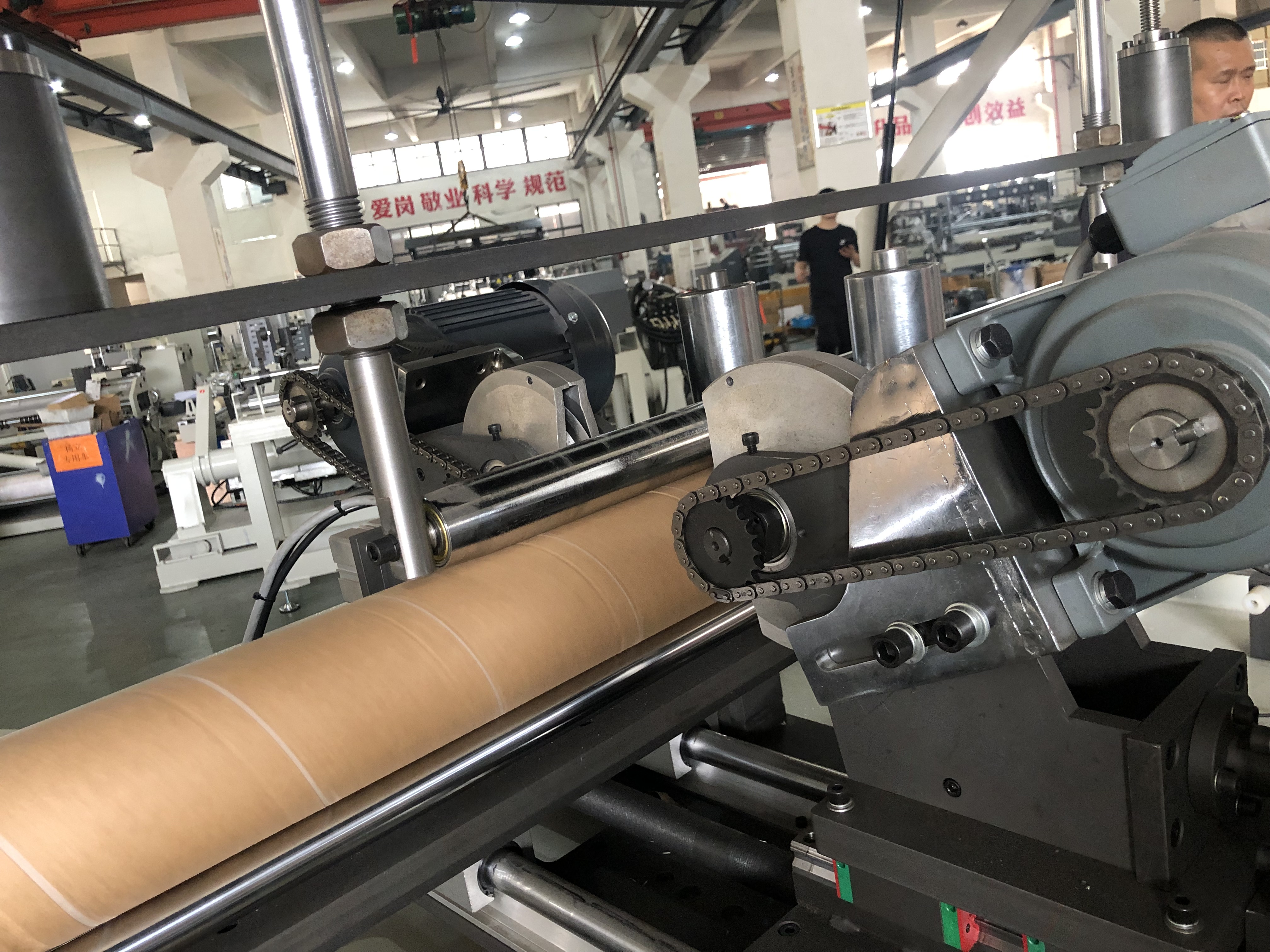

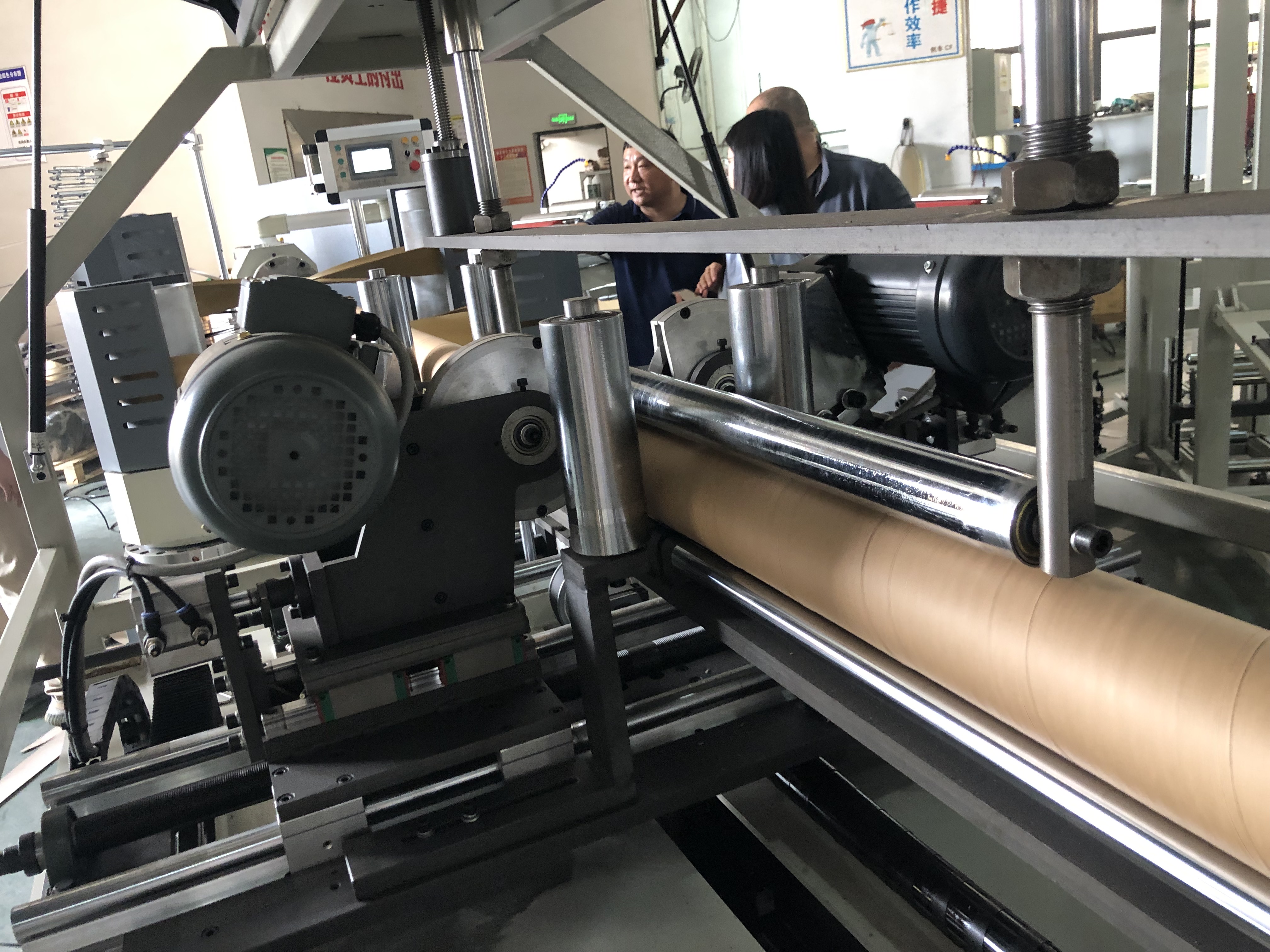

A paper core is only as good as its structural integrity and edge smoothness. This machine introduces an advanced synchronous tracking cutting method where the paper rotates and the knife rotates with the follower. This dynamic synchronization guarantees that the blades engage the material at the perfect velocity and angle, preventing any crushing, tearing, or deformation of the tube walls.
Zero-Burr Guarantee: The synchronized follower mechanism ensures a perfectly clean slice, delivering a premium tactile feel that your end-users will immediately recognize and appreciate.
Structural Preservation: By matching the rotational speed of the paper, the cutting force is distributed evenly, maintaining the exact cylindrical geometry of the core without any oval distortion.
Premium Visual Appeal: The finished tubes feature a polished, professional look, which is absolutely essential for high-end applications like premium film winding or luxury packaging.
Waste Reduction: Precision cutting drastically lowers the scrap rate, ensuring that almost every millimeter of raw material is converted into a highly sellable product.
Industrial demands are rarely static, and your machinery must be highly adaptable to shifting market trends. The CFJG-SK-150 boasts an incredibly wide processing envelope, effortlessly handling tube diameters from 76mm up to a massive 305mm, with wall thicknesses ranging from 1.5mm to a robust 15mm. This extreme versatility makes it the ultimate centerpiece for diverse manufacturing environments.

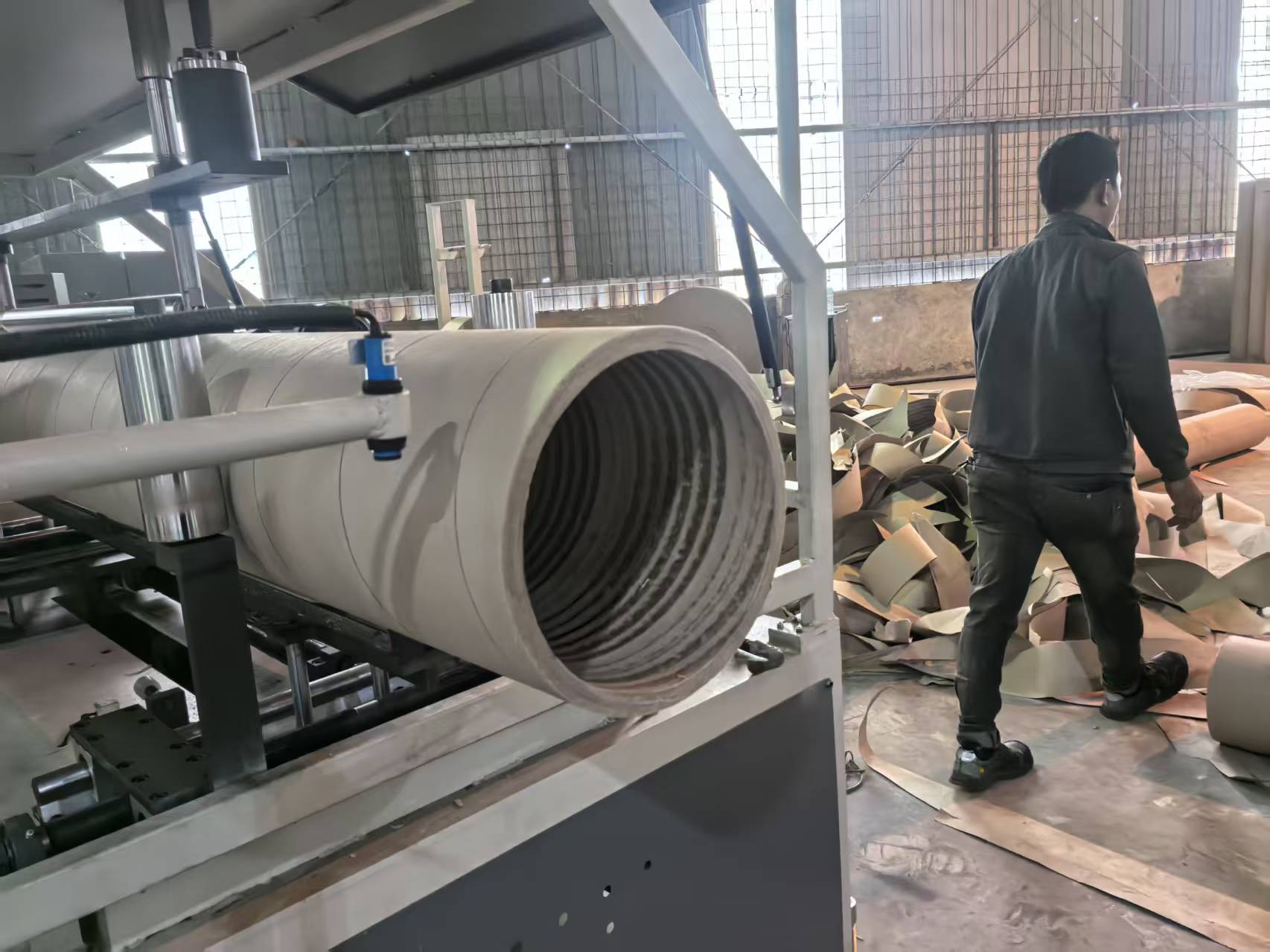

Paper and Pulp Industry: Perfect for creating heavy-duty mill cores that can support massive rolls of newsprint or kraft paper without collapsing under the immense weight.
Plastic Film and Foil: Produces ultra-smooth cores essential for winding delicate stretch films, ensuring no internal impressions or textures are transferred to the plastic.
Textile and Fabric Winding: Generates rigid, perfectly straight tubes that keep industrial fabrics, carpets, and yarns securely wound during turbulent global transit.
Custom Packaging Solutions: Easily adjustable cutting lengths ranging from 300mm to 6000mm allow you to cater to bespoke packaging requests, instantly expanding your operational portfolio.

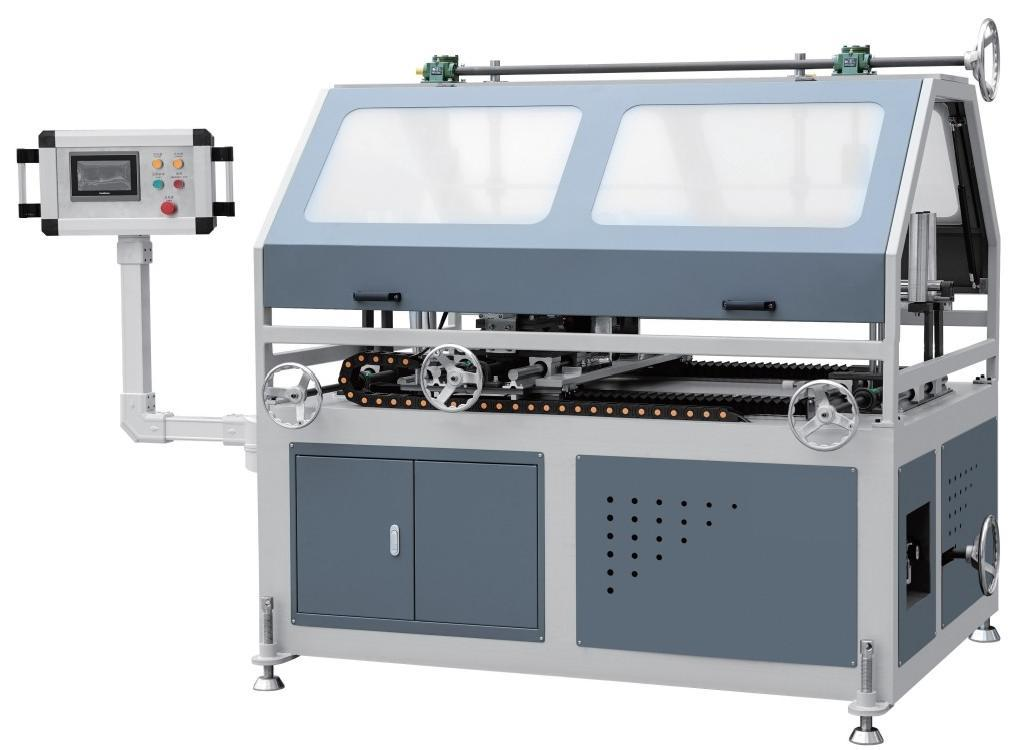

Stepping into the era of smart manufacturing requires equipment that thinks as fast as it works. The integrated CNC system on this paper core making machine transforms complex mechanical adjustments into simple, intuitive digital inputs. Operators can interact with a highly responsive, glare-free touch panel, setting precise cutting lengths and running parameters with just a few taps.
Intuitive User Interface: The logic-driven control panel requires minimal training, allowing new operators to master the machine's complex functions rapidly and safely.
Precision Parameter Setting: Input exact measurements down to the millimeter, and the smart CNC system will execute them flawlessly, virtually eliminating costly human error.
Automated Diagnostics: The intelligent system continuously monitors the machine's health, alerting operators to maintenance needs before they escalate into significant downtime.
Labor Optimization: With the machine handling the complex synchronization and tracking automatically, human intervention is drastically reduced, lowering your overall operational costs.
Heavy-duty manufacturing environments are unforgiving, and machinery must be built to endure relentless punishment. The CFJG-SK-150 is a true testament to rugged engineering, designed specifically to process thick-walled paper cores day in and day out. From the reinforced steel base to the premium alloy components, every inch of this machine is crafted for ultimate longevity.
Anti-Vibration Architecture: The massive, low-center-of-gravity frame absorbs kinetic energy, ensuring the machine remains firmly planted even during the most aggressive, high-speed cutting cycles.
Wear-Resistant Tooling: The double round knives are forged from high-grade, hardened alloys, retaining their razor-sharp edge through miles of highly abrasive kraft paper.
Reliable Transmission Dynamics: Core drive shafts and bearings are sourced from top-tier industrial suppliers, guaranteeing smooth power delivery and preventing mechanical slippage under heavy loads.
Long-Term Asset Value: This machine is not a short-term purchase; it is a decade-long investment that will consistently anchor your production floor with unyielding reliability.
Investing in heavy industrial machinery is a significant commitment, and you need a partner who stands by their equipment long after the initial installation. We provide a comprehensive, global support ecosystem designed to keep your production lines moving without interruption, eliminating the anxieties often associated with international equipment procurement.
Global Installation and Commissioning: Our expert technicians will guide the setup process, ensuring the machine is perfectly calibrated to your specific factory environment and power supply.
Comprehensive Operator Training: We provide in-depth, hands-on training sessions to ensure your team is fully equipped to operate, clean, and maintain the equipment safely and efficiently.
Rapid Spare Parts Availability: Consumables like the round cutting blades and drive belts are kept in constant stock, ready for immediate dispatch to prevent costly production halts.
Ironclad Warranty Protection: The machine is backed by a robust warranty policy covering core mechanical and electrical components, giving you total peace of mind for your investment.
Selecting the right equipment manufacturer is just as crucial as selecting the machine itself. We have built our reputation on a solid foundation of engineering excellence, rigorous quality control, and a deep understanding of industrial converting challenges. When you source your machinery from us, you are partnering with a dedicated team committed to your operational success.
Decades of Engineering Expertise: Our design team possesses profound knowledge of paper converting dynamics, ensuring every machine is optimized for real-world factory conditions.
Stringent Quality Assurance: Before leaving our facility, every machine undergoes rigorous stress testing with actual raw materials to guarantee flawless out-of-the-box performance.
Tailored Manufacturing Solutions: We understand that no two factories are alike; we offer customizable configurations to ensure the machine seamlessly integrates into your existing workflow.
Unwavering Client Commitment: Your success is our success. We prioritize transparent communication, honest lead times, and dedicated support to foster a long-lasting, mutually beneficial partnership.
Navigating the technical specifications of industrial paper core machinery can be complex. Below, we have compiled detailed answers to the most critical questions frequently asked by production managers and procurement specialists to help you make an informed decision.
What makes the synchronous tracking cutting method superior to static cutting?
Synchronous tracking allows the cutting blades to move alongside the paper tube as it rotates and advances. This eliminates the friction and lateral stress that cause crushed edges, resulting in a perfectly smooth, burr-free finish every single time, preserving the structural integrity of the core.
Can this machine efficiently handle the maximum 15mm tube thickness without motor strain?
Absolutely. The CFJG-SK-150 is equipped with a high-torque drive system and a heavy-duty chassis specifically engineered to process thick-walled cores. The dual-blade setup distributes the cutting load evenly, preventing motor fatigue and ensuring continuous, stable operation even at maximum capacity.
How frequently do the double round knives need to be replaced?
The lifespan of the cutting blades depends on the abrasiveness of your paper stock and your daily production volume. However, because they are forged from premium wear-resistant alloys, they offer a significantly longer operational life than standard blades. We also maintain a ready supply of replacements for rapid dispatch to keep your lines running.
Is the CNC control system compatible with different measurement requirements?
Yes, the intelligent CNC interface is designed for global usability and ultimate flexibility. Operators can easily program precise cutting lengths (ranging from 300mm to 6000mm) and adjust operational parameters with high accuracy through the intuitive digital dashboard, accommodating any custom order.
What are the primary maintenance requirements for optimal performance?
Routine maintenance is straightforward and operator-friendly. It primarily involves keeping the cutting tracks clean from paper dust accumulation, ensuring the tension control systems are properly calibrated, and periodically lubricating the main transmission bearings. Comprehensive maintenance schedules are provided during the initial operator training.
