CFQG
| Quantity: | |
|---|---|

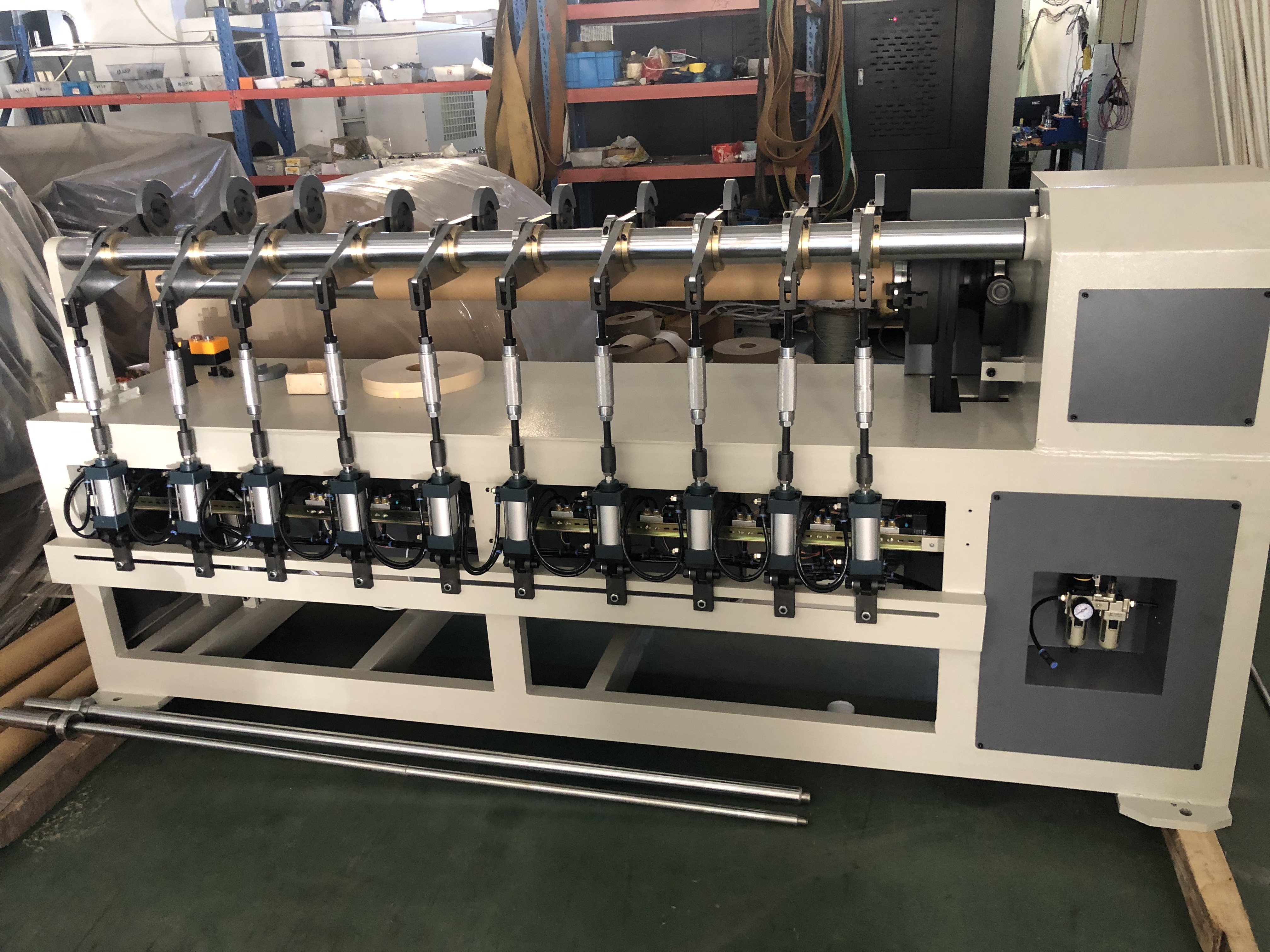

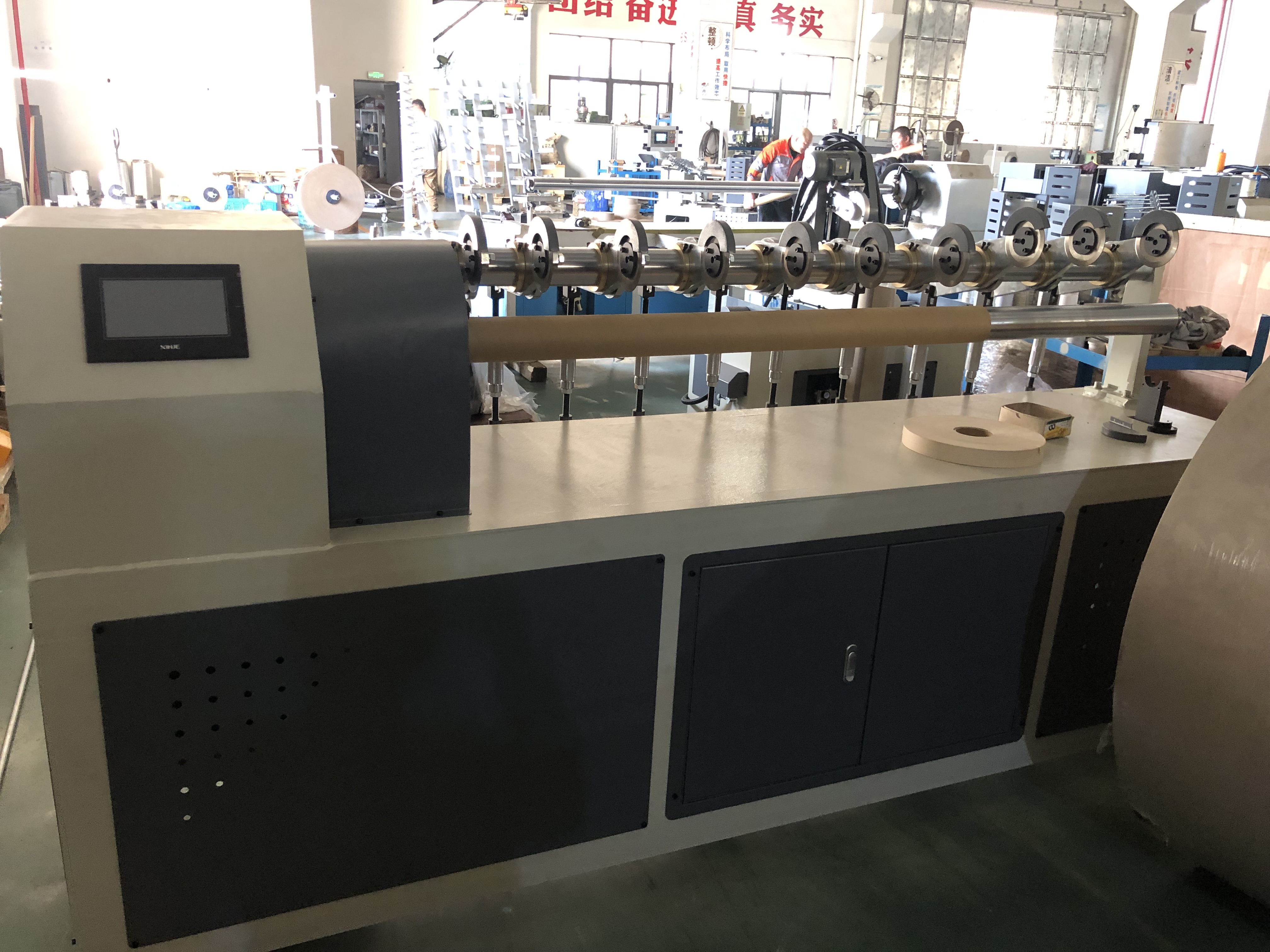

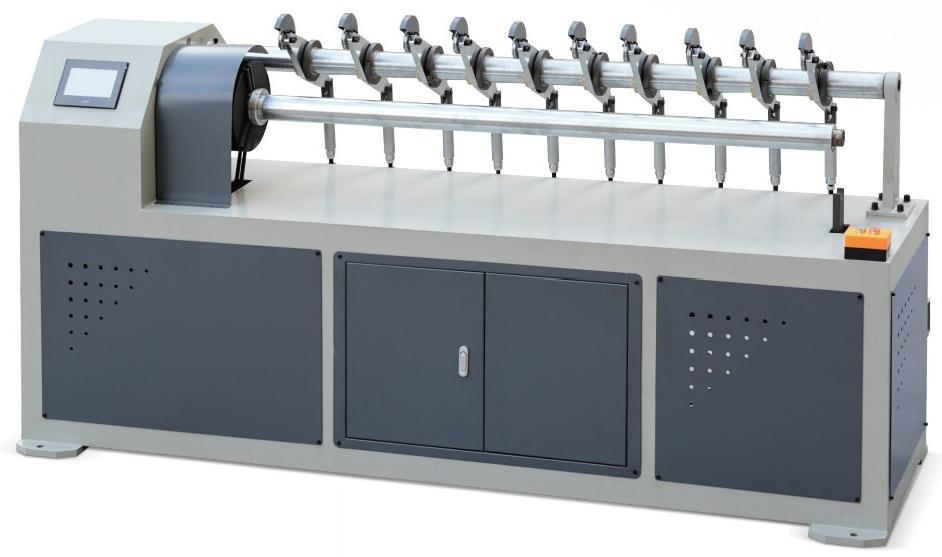

Step onto the production floor, and the rhythmic, precise hum of the CFQG Multi-knives Paper Tube Cutting Machine immediately commands attention. Crafted with a heavy-duty, vibration-dampening steel chassis, this equipment feels robust to the touch and stands unyielding during high-speed, continuous operations. The smooth, metallic glide of the pneumatic cutting shafts works in flawless synchronization, slicing through thick paper cores with a satisfying, crisp sound that signifies absolute mechanical precision. Every cut edge emerges clean, smooth, and entirely free of jagged burrs, reflecting a level of craftsmanship designed to elevate your final product packaging. By integrating eight razor-sharp blades that operate simultaneously, this machinery drastically condenses production timelines, turning hours of labor into mere minutes. The tactile feedback from the intuitive control panel allows operators to command complex cutting sequences with a simple tap, eliminating the steep learning curves typically associated with industrial equipment. It is not just a cutting tool; it is a comprehensive upgrade to your facility's output capabilities, ensuring that every batch meets the most stringent dimensional tolerances demanded by premium packaging, textile, and printing sectors.
Understanding the technical capabilities of your processing equipment is crucial for aligning with strict production schedules and facility requirements. The table below outlines the exact engineering parameters and operational capacities of the CFQG model. These specifications highlight the machine's ability to handle diverse core sizes, from standard consumer packaging dimensions to heavy-duty industrial textile tubes. With a focus on structural integrity and precise mechanical tolerances, every metric here translates directly to consistent, day-to-day reliability on your factory floor.
Specifications | Details |
|---|---|
Model | CFQG |
Inner Diameter | 50-152mm |
Wall Thickness | 1-15mm |
Mother Tube Length | 1640mm |
Cutting Tube Length | 90-1600mm |
Cutting Blades | 8pcs on machine |
Cutting Way | Pneumatic |
Tube Loading and Unloading | Manually |
Blade Adjustment | Manual adjust |
Control System | Intuitive control panel |
Manufacturer Expertise | 15+ years |
Certification | CE |
To maintain a competitive edge, facilities require machinery that does more than just function—it must excel. This equipment is engineered with distinct advantages that directly impact your bottom line, from reducing material waste to maximizing daily output.

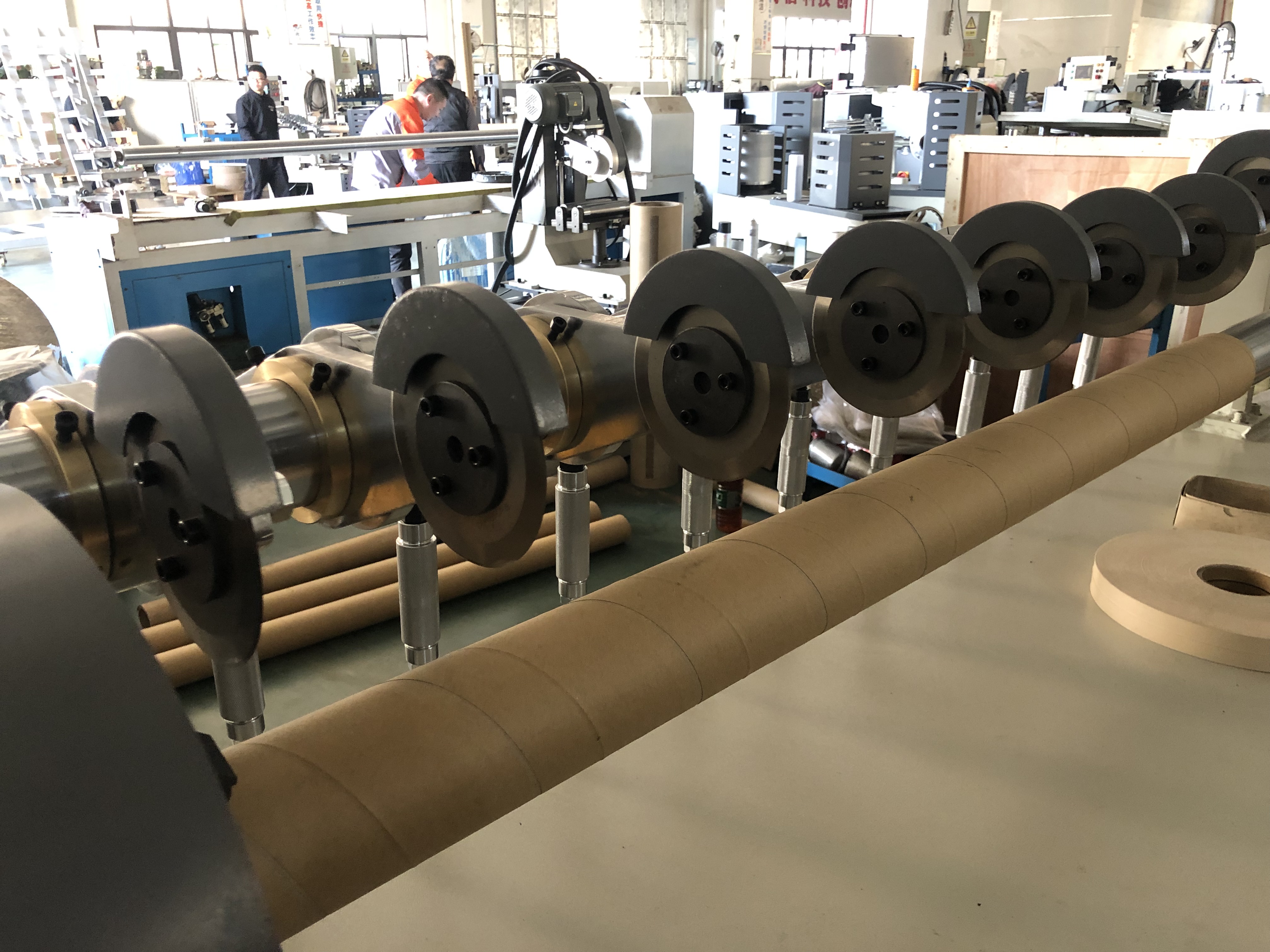

The core of this system lies in its ability to execute multiple cuts simultaneously. By engaging eight independent blades at once, the machine divides a single mother tube into numerous finished segments in a fraction of the traditional time.
Multiplies hourly output without increasing energy consumption.
Ensures uniform length across an entire batch of tubes.
Reduces the mechanical wear associated with repetitive single-cut cycles.

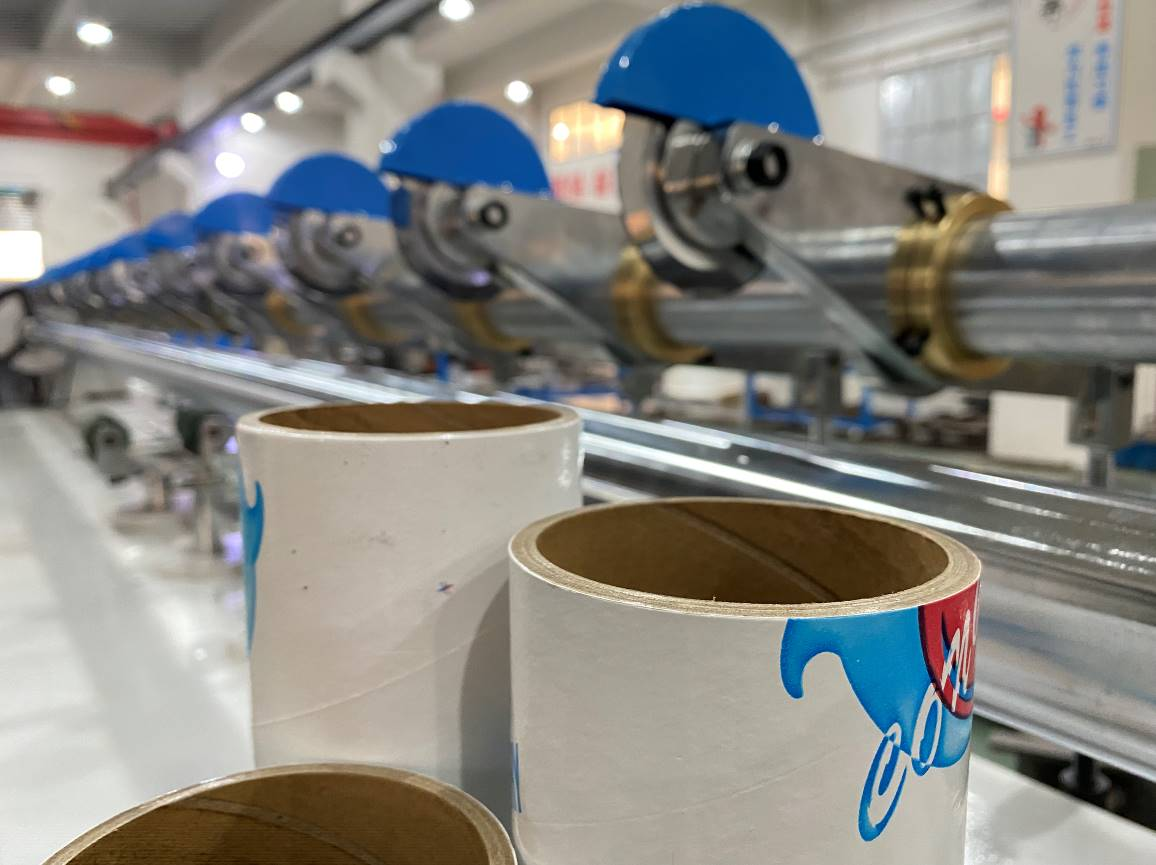

Material waste is a silent profit killer. The cutting mechanism on this model is calibrated to deliver a perfectly clean slice every time. The resulting edges are smooth and structurally intact, preventing the fraying or crushing that often plagues lower-tier equipment.
Eliminates the need for secondary edge-sanding or finishing processes.
Preserves the structural integrity of thin-walled tubes.
Guarantees a premium look and feel for high-end packaging applications.
Every aspect of this machine has been thoughtfully designed to address the real-world challenges faced by high-volume manufacturing floors. Below is a detailed breakdown of how its capabilities translate into operational excellence and tangible business growth.
Equipped with eight synchronized cutting blades, this system supports the simultaneous sectioning of a single mother tube into multiple finished pieces. This multi-knife design exponentially increases production capacity, easily outperforming traditional single-blade alternatives and perfectly aligning with the demands of large-scale, time-sensitive delivery schedules.
The pneumatically driven cutting system operates with absolute synchronicity. This ensures that every cut is exceptionally flat, completely free of burrs, and dimensionally identical. Such extreme precision not only satisfies the rigorous standards of the packaging and textile sectors but also drastically minimizes material scrap, thereby optimizing overall material costs.
Adaptability is built into the machine's DNA. It comfortably processes paper cores with inner diameters ranging from 50mm to 152mm and wall thicknesses from 1mm to 15mm. With cutting lengths adjustable between 90mm and 1600mm, a single unit can seamlessly transition between producing delicate cosmetic packaging, robust textile yarn spools, and standard printing paper cores.
Designed around the end-user, the equipment features a highly intuitive touchscreen control interface. The combination of pneumatic cutting power with straightforward manual blade adjustments and loading mechanisms significantly lowers the operational barrier. New operators can achieve proficiency rapidly, slashing training periods and reducing overall labor expenses.
Constructed from premium industrial-grade materials and reinforced core components, the chassis provides unshakeable stability. Engineered specifically for the rigors of continuous, high-intensity manufacturing environments, the machine exhibits outstanding fatigue resistance. This low-maintenance design maximizes fault-free operational uptime.
Backed by over 15 years of factory-level engineering expertise, the system can be deeply tailored to specific facility needs. Whether the requirement involves handling non-standard core materials, modifying cutting lengths, or integrating seamlessly into existing automated lines, dedicated engineers provide exclusive, one-on-one manufacturing solutions.
The value extends far beyond the physical machinery. A complete ecosystem of support includes on-site installation guidance, comprehensive operator training, and lifecycle troubleshooting. This robust support framework completely eliminates any concerns regarding deployment, integration, and long-term maintenance.
Selecting the right machinery partner is just as critical as the equipment itself. Our manufacturing facility stands as a beacon of reliability, innovation, and unwavering support in the industrial machinery landscape, ensuring your production lines never stand still.
With over 15 years dedicated exclusively to the development of paper tube and core processing technology, our engineering foundation is built on deep, practical industry knowledge. We do not just assemble parts; we engineer comprehensive solutions that anticipate and resolve production bottlenecks.
Proven track record of deploying robust machinery across global markets.
Continuous R&D investments to keep our equipment at the forefront of technology.
Strict adherence to international safety and quality standards, including CE certification.
Before any machine leaves our factory floor, it undergoes a grueling series of stress tests. We simulate peak-capacity production runs to ensure that every pneumatic valve, cutting blade, and control circuit performs flawlessly under pressure.
Rigorous inspection of all raw materials and heavy-duty steel components.
Precision calibration of all multi-blade shafts prior to shipping.
Detailed documentation and performance logs provided with every unit.
To assist your procurement and engineering teams in making an informed decision, we have compiled answers to the most technical and operational questions regarding this equipment.
The machine is engineered to handle paper tubes with a wall thickness of up to 15mm. The pneumatic cutting mechanism applies consistent, evenly distributed pressure, ensuring that even thick-walled industrial cores are sliced cleanly without any structural crushing or delamination of the paper layers.
Thanks to the accessible manual adjustment design, a trained operator can reposition and secure all 8 blades for a new cutting specification in approximately 10 to 15 minutes. This rapid changeover capability is crucial for facilities that process multiple different orders within a single shift, minimizing downtime.
Yes. The robust motor and sharp, high-carbon steel blades are more than capable of slicing through highly compressed, resin-coated, or specialty paper tubes. If you have a highly unique material, our engineering team can also customize the blade geometry to suit your specific application perfectly before shipment.
Daily maintenance is minimal and straightforward. We recommend a quick visual inspection of the air pressure gauges, draining any condensation from the pneumatic air filter, and ensuring the blade shaft is free of paper dust. A comprehensive maintenance schedule is provided in the manual to guarantee decades of reliable service.
Absolutely. The touchscreen interface is designed for global usability and can be programmed with multiple language options. The interface relies heavily on universally understood visual icons and straightforward numerical inputs, making it incredibly easy for operators of any background to master quickly.
