CFQG-25
| Quantity: | |
|---|---|

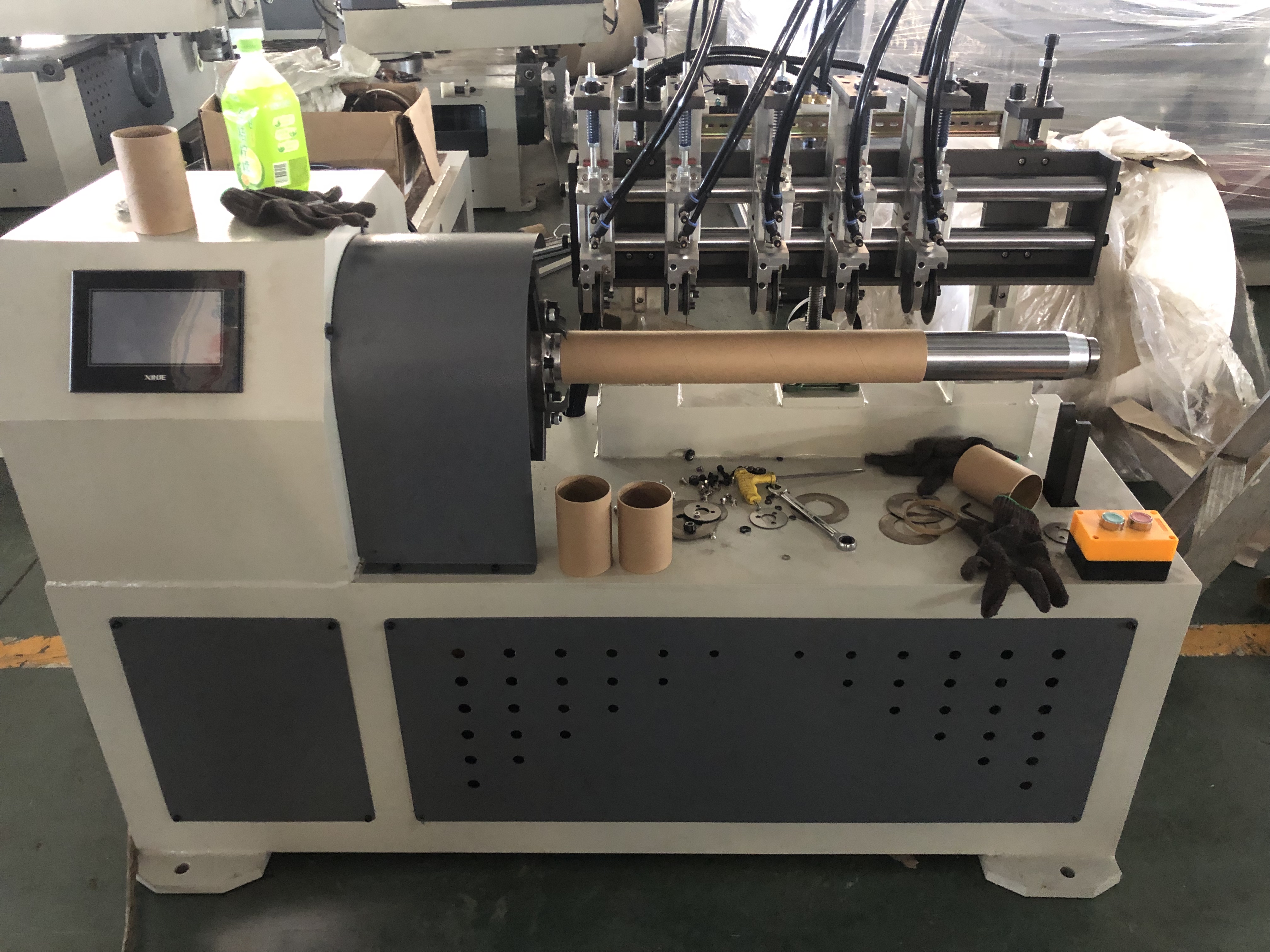

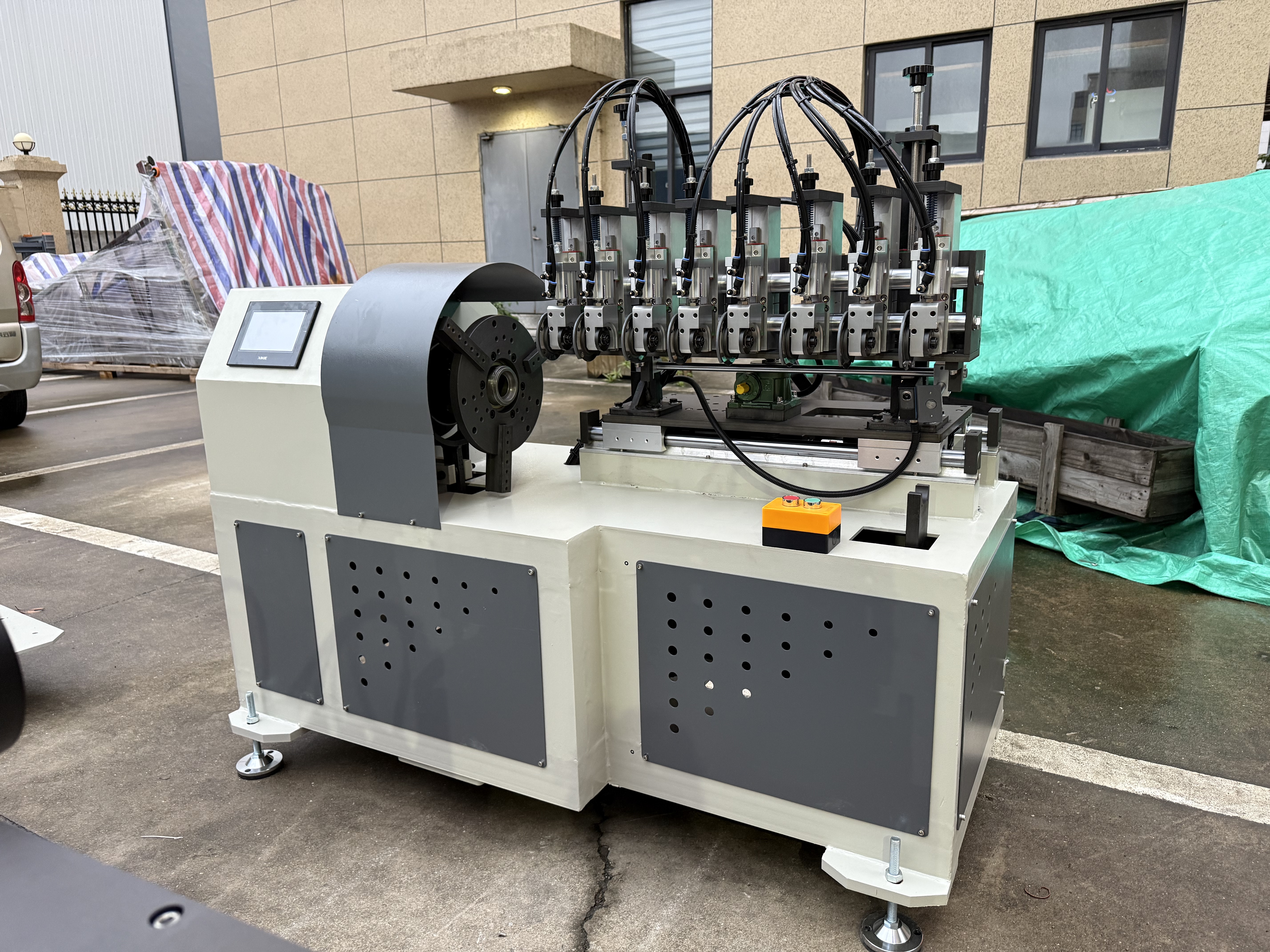

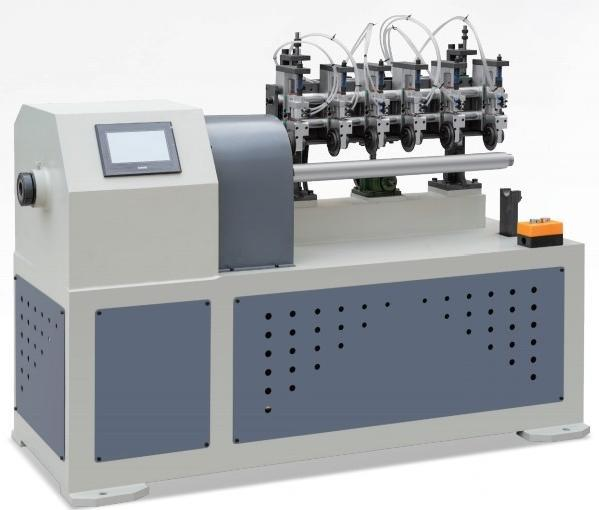

Step onto the factory floor, and the first thing you will notice about the CFQG-25 Multi-blades Paper Tube Can Cutting Machine is its imposing, solid stance. Weighing in at a substantial 1000KG, the heavy-duty chassis actively absorbs operational vibrations, resulting in a low-decibel, smooth mechanical hum during active production cycles. The tactile feedback of the premium-grade steel components speaks volumes about its craftsmanship, meticulously engineered to endure the punishing demands of continuous, high-volume shifts. When the synchronized pneumatic blade system engages the mother tube, it slices through the dense cardboard with a satisfying, crisp precision, leaving behind perfectly flush edges without any fraying, tearing, or crushing. This machine does not just cut paper cores; it transforms raw materials into flawless components ready for immediate integration into your packaging lines. By eliminating jagged edges and dimensional inconsistencies, it directly reduces material waste and protects your downstream processes from jamming or misalignment, ultimately safeguarding your operational margins and elevating the perceived quality of your final manufactured goods.
Specifications | Details |
|---|---|
Model | CFQG-25 |
Inner Diameter | 30-100mm |
Wall Thickness | 1-3mm |
Mother Tube Length | 600mm |
Cutting Tube Length | 30-600mm |
Cutting Blades | 5pcs on machine (Can be customized) |
Tube Loading and Unloading | Manually |
Automation | Manual |
Weight | 1000KG |
Production Capacity | 20PC/Sets |
Warranty | 1 year |
HS Code | 8441309000 |
Origin | China |
Power Supplier | Customized |
Trade Term | FOB, CIF, CFR |
Payment Term | LC, T/T, D/P, PayPal, Western Union |
Transport Package | Pallet Wooden |
Matching equipment capabilities to exact material specifications is critical for maintaining a fluid production line. This machine is engineered with a high degree of processing tolerance to accommodate diverse manufacturing requirements.
Broad Diameter Range: Effortlessly processes inner diameters from 30mm up to 100mm, allowing you to switch between different product lines without needing multiple machines.
Wall Thickness Adaptability: Cleanly slices through wall thicknesses of 1-3mm, ensuring structural integrity is maintained even on thinner, more fragile cores.
Flexible Length Configurations: Accepts mother tubes up to 600mm, with the ability to yield finished cut lengths anywhere from a compact 30mm up to the full 600mm.
Meeting urgent production deadlines requires equipment that can multiply output without sacrificing the dimensional accuracy of the final product. The CFQG-25 is built to accelerate your throughput.

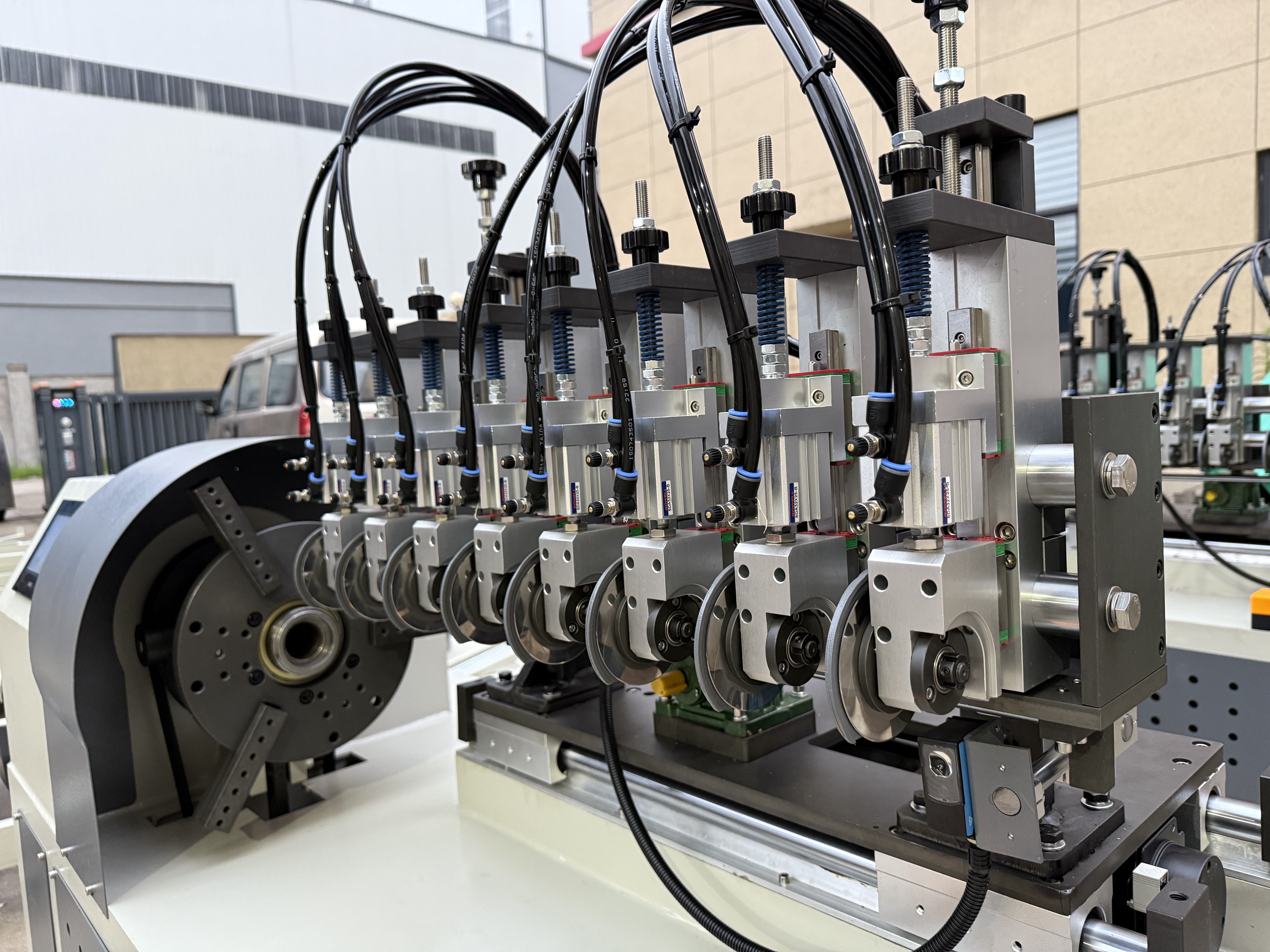

Synchronized Multi-Blade System: Comes standard with 5 premium cutting blades that operate in perfect unison, multiplying your output compared to traditional single-blade alternatives.
Flawless Edge Retention: The synchronized cutting action prevents material deformation, ensuring every tube meets strict quality control standards for immediate downstream use.
Optimized Capacity: Achieves a steady production capacity of 20PC/Sets, providing a reliable and predictable flow of materials to keep your facility running at peak efficiency.
Equipment downtime is a direct threat to profitability. We engineered this cutting machine with a focus on relentless reliability under demanding industrial conditions.
Massive 1000KG Foundation: The sheer weight of the machine anchors it firmly to the factory floor, neutralizing micro-vibrations that typically cause blade wear and inaccurate cuts.
Wear-Resistant Components: High-stress contact points are forged from hardened alloys, drastically extending the intervals between routine maintenance.
Continuous Shift Capability: Designed for superior thermal dissipation and mechanical endurance, allowing the machine to perform consistently through long, demanding production schedules.
Complex machinery often leads to operational bottlenecks and high training expenses. The CFQG-25 bypasses these issues with a user-centric design philosophy.
Streamlined Interface: The control panel is laid out with logical, highly visible inputs, removing the guesswork from daily operations.
Rapid Parameter Adjustment: Operators can quickly recalibrate cutting lengths and blade positioning, minimizing downtime during product changeovers.
Reduced Training Burden: The straightforward manual loading and operating procedures mean new facility staff can achieve full competency in a fraction of the standard training time.
No two production facilities are exactly alike. We recognize that off-the-shelf solutions often require compromises, which is why we offer comprehensive engineering modifications to ensure the CFQG-25 aligns perfectly with your specific operational architecture.
Blade Configuration: While 5 blades are standard, our engineering team can increase or decrease the blade array to match your exact yield requirements per cycle.
Material Specificity: If your facility processes specialized paper composites or heavily coated tubes, we can adjust the blade geometry and pneumatic pressure for optimal penetration.
Electrical Integration: Power supplies are fully customized to match your regional voltage and frequency standards, ensuring seamless plug-and-play installation upon arrival.
Aesthetic and Spatial Alignment: We offer custom color matching to align with your corporate branding, as well as spatial modifications to fit unique production line footprints.
The versatility of the CFQG-25 makes it a cornerstone asset across a multitude of manufacturing sectors. By providing clean, accurate cuts, it elevates the quality of the final consumer product across various markets.
Premium Packaging Sector: Essential for crafting the pristine, smooth-edged paper tubes required for high-end cosmetics, pharmaceuticals, and gourmet food packaging, where visual perfection is mandatory.
Textile Manufacturing: Produces the durable, perfectly sized paper cores necessary for winding heavy yarns, threads, and delicate fabrics without snagging or collapsing during transit.
Commercial Printing: Creates the rigid center cores used for massive rolls of printing paper, industrial labels, and specialized foils, ensuring smooth unwinding in high-speed printers.
Stationery & Tape Production: Ideal for high-volume manufacturing of the small, precise inner rings used for adhesive tapes, wrapping paper rolls, and drafting supplies.
Procuring heavy machinery internationally requires absolute confidence in the ongoing support network. Our commitment to your operational success extends far beyond the point of delivery, ensuring your equipment maintains peak performance year after year.
Comprehensive 1-Year Warranty: We stand behind our engineering with a robust warranty covering core mechanical components, protecting your capital investment.
Installation Guidance: We provide detailed, step-by-step remote or on-site support to ensure the machine is commissioned correctly and safely within your facility.
Operator Empowerment: We supply in-depth training materials and direct consultation to ensure your staff understands the nuances of the machine, from daily operation to preventative maintenance.
Rapid Troubleshooting: Should an anomaly occur, our dedicated technical support team is available to diagnose issues swiftly, minimizing potential workflow disruptions.
Navigating international procurement can be fraught with logistical friction. We have optimized our export protocols to provide a transparent, secure, and highly efficient purchasing experience for global buyers.
Flexible Trade Structures: We support a variety of Incoterms including FOB, CIF, and CFR, allowing you to choose the freight and insurance arrangement that best suits your supply chain strategy.
Diversified Payment Gateways: To accommodate varying financial protocols, we accept secure transactions via L/C, T/T, D/P, PayPal, and Western Union.
Export-Grade Packaging: Every machine is meticulously secured onto heavy-duty wooden pallets and encased in protective wrapping, guaranteeing it survives transoceanic shipping and arrives at your loading dock in pristine condition.
Clear Customs Documentation: Operating under HS Code 8441309000, we provide flawless, standardized documentation to ensure rapid customs clearance and avoid costly port delays.
Selecting a machinery supplier is a critical strategic decision. With over 15 years of dedicated expertise in paper tube and core machine manufacturing, we do not just build equipment; we engineer reliability. Our manufacturing facility operates under stringent quality control protocols, ensuring that every weld, bearing, and blade meets exacting international standards. We source only premium raw materials, resulting in machinery that outlasts and outperforms standard market offerings. By choosing us, you are partnering with a team of seasoned engineers who understand the nuances of high-volume production and are dedicated to optimizing your facility's output and profitability.
Over a decade and a half of specialized engineering pedigree in paper processing technology.
Rigorous, multi-stage quality assurance testing conducted prior to every shipment.
A proven track record of successful deployments in demanding production environments globally.
A proactive approach to machinery design, constantly integrating the latest mechanical advancements.
To assist procurement managers and facility engineers in their evaluation process, we have compiled detailed answers to the most critical technical inquiries regarding the CFQG-25.
How does the machine handle different paper tube wall thicknesses without crushing the core?
The CFQG-25 utilizes a finely tuned, synchronized cutting mechanism combined with a supportive central mandrel. When processing thinner walls (down to 1mm), the cutting pressure is distributed evenly across the multi-blade array, while the mandrel provides internal resistance. This prevents the cardboard from buckling or crushing, ensuring a perfectly circular profile is maintained throughout the cut.
Can the standard 5-blade configuration be modified for highly specific cutting lengths?
Absolutely. The blade mounts are designed on an adjustable track system. Operators can manually slide and lock the blades into precise positions to achieve any cutting length between 30mm and 600mm. If your production requires more than 5 simultaneous cuts, our engineering team can custom-fabricate an extended blade array prior to shipping.
What preventative maintenance routines are required to maintain optimal blade sharpness and cutting precision?
Thanks to the robust 1000KG frame absorbing excess vibration, blade wear is significantly reduced. Routine maintenance simply involves daily clearing of paper dust, weekly lubrication of the pneumatic tracks and rotating shafts, and periodic visual inspections of the blade edges. The blades themselves are manufactured from high-carbon steel and are easily swappable when eventual replacement is necessary.
How does the 1000KG structural weight contribute to the overall lifespan of the cutting components?
In cutting machinery, micro-vibrations are the primary cause of premature component failure and jagged cuts. The massive 1000KG footprint of the CFQG-25 acts as a dampening anchor. By neutralizing kinetic resonance during high-speed operation, the blades maintain a perfectly true path, reducing lateral stress on the bearings and drastically extending the operational lifespan of all moving parts.
Are the electrical components and power supply adaptable to varying international voltage standards?
Yes. We understand that industrial power grids vary significantly by region. During the consultation phase, we will identify your facility's specific voltage and phase requirements. The machine's internal transformers and motors will be custom-configured at our factory to ensure it is fully compatible with your local power supply, eliminating the need for external voltage converters.
